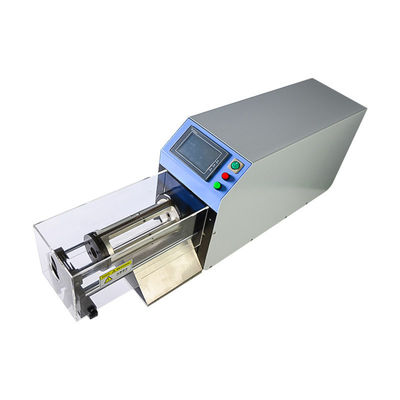

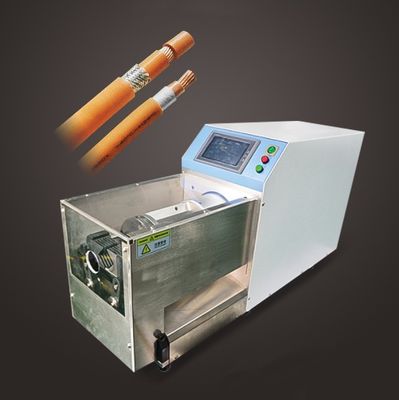

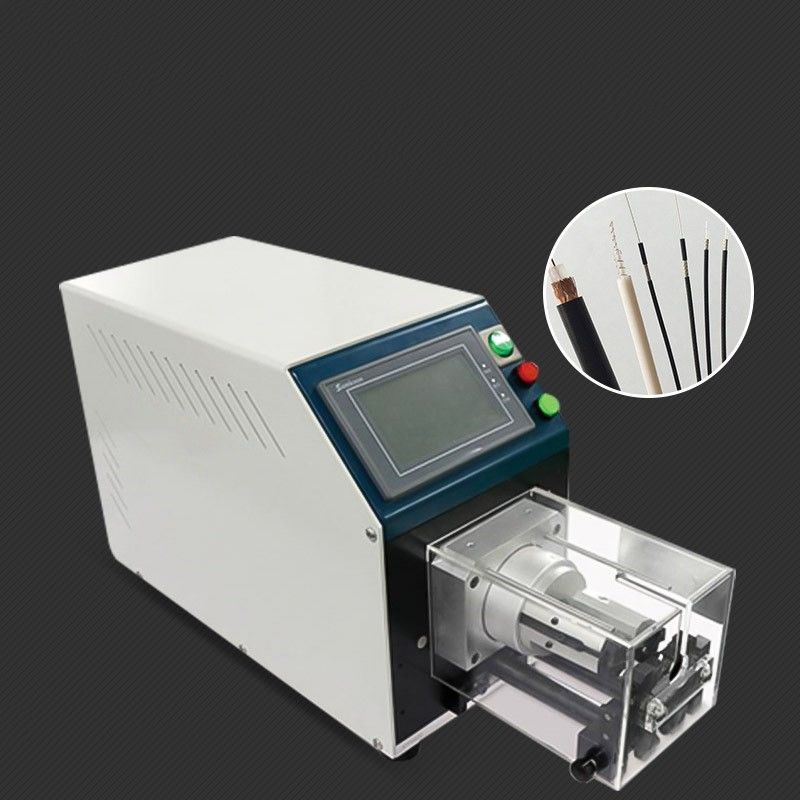

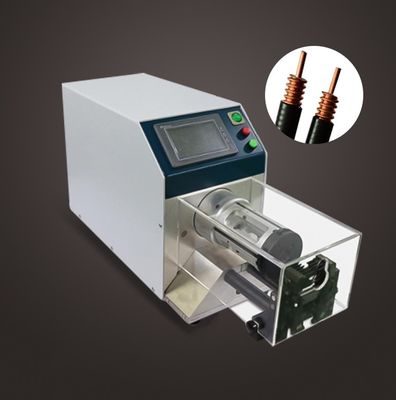

CX 6806D Semi Automatic Coaxial Cable Stripping Machine Dia 1.5mm-9.5mm Wire

CX 6806D Semi Automatic Coaxial Cable Stripping Machine Dia 1.5mm-9.5mm Wire

Product Details:

Place of Origin: CHINA
Brand Name: CHENXIN
Certification: ISO9001
Model Number: CX-6806D

Payment & Shipping Terms:

Minimum Order Quantity: 2/sets
Price: Fob Shenzhen
Packaging Details: boxes
Delivery Time: 7-10 working days
Payment Terms: T/T
Supply Ability: 500 sets per month
Get Best Price Contact Now

Detail Information

Stripping Length: 65mm Wire Diameter: 1.5-9.5mm
Power: 400W Voltage: AC 220v 50/60hzV
Capacity: 500-700pcs/hr
High Light:

6806D Coaxial Cable Stripping Machine

,

Dia1.5mm Coaxial Cable Stripping Machine

,

9.5mm semi automatic wire stripping machine

Product Description

CX-6806D Wire Dia 1.5-9.5mm Semi-Automatic Coaxial Cable Stripping Machine



Features:

Cx-8608d is an improved coaxial peeling machine based on 6806. The cutter head part is designed as a structure of four rotary knives, which makes it better in processing thicker and harder cables.



Technical Parameter

Name and model of machine CX-6806D semi-auto coaxial cable stripping machine
Wire diameter 1.5-9.5mm
Max stripping length 65mm
Capacity 500-700pcs/hr(according to the type and length of the wire)
Power 400W
Voltage AC 220V/50Hz
Dimension L600mm*W185mm*H280mm
Weight 25kg



CX-JC30 Easy Operate Air Driven Wire Cable Strip Stripping Machine​



Model of machine CX-JC30
Wire material PVC, Teflon, single wire,single-core, rubber
Applicable wire 0.03-2.08mm²(AWG#32-AWG#14)
Max. cable outer diameter 3.2mm
Stripping length increments full stripping:0.5mm; semi-stripping:2mm
Precision of setting diameter 0.01mm
Max.stripping length 20mm
Cycle time about 0.3s
Air pressure 0.5-0.8Mpa
Dimension 265mm*70mm*135mm
Weight 3.0kg



Company Introduction

Dongguan Chenxin Automation Equipment Co., Ltd. is a company engaged in the manufacture of automation equipment for the processing of power cord AC plugs and wire harness ends processing for more than 10 years.


The company's main products are a fully automatic plug crimping machine, fully automatic wire tinning machine series, fully automatic wire winding machine series, semi-auto terminal crimping machine, automatic cutting machine, automatic coaxial wire stripping machine. Provide safer, labor-saving, efficient, and high-quality equipment for the power cord production, wire harness end processing industry.



We can provide a series of solutions in the wire and cable field to help promote the improvement of our customers' business. we not only provide equipment and solutions but also focus on offering high-quality services such as free layout design of power cord factory, overseas installation guidance, operation training, and so on.
