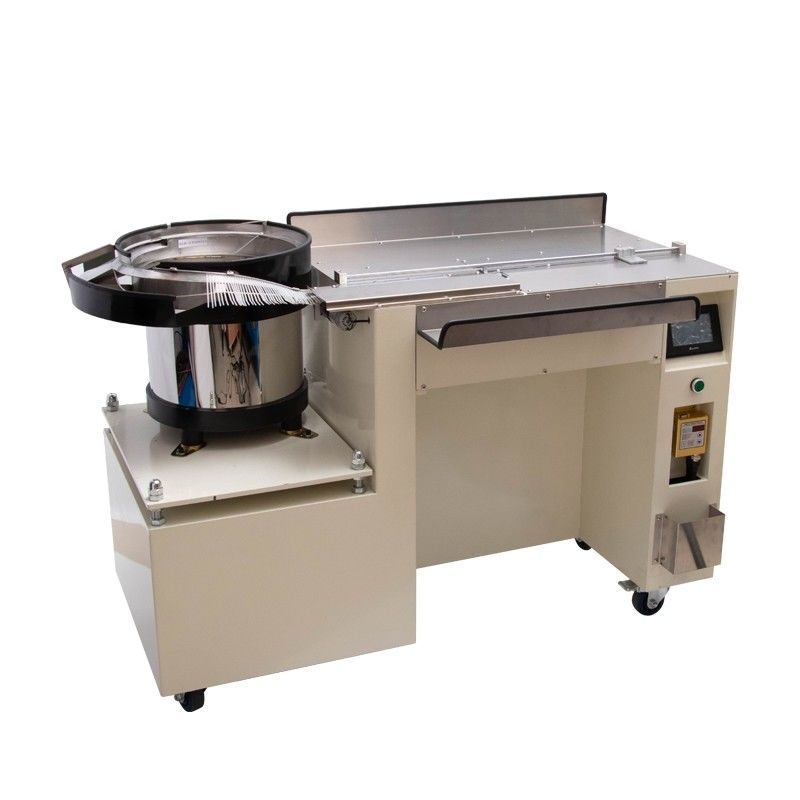

Self Locking Nylon Cable Ties Machine 60mm To 120mm Tie Length

Self Locking Nylon Cable Ties Machine 60mm To 120mm Tie Length

Product Details:

Place of Origin: CHINA
Brand Name: CHENXIN
Certification: ISO9001
Model Number: CX-2000D

Payment & Shipping Terms:

Minimum Order Quantity: 1/Set
Price: Fob Shenzhen
Packaging Details: wooden case
Delivery Time: 10-15 working days
Payment Terms: T/T
Supply Ability: 150 sets per month
Get Best Price Contact Now

Detail Information

Cable Tie Width: 3mm/4mm Finished Cable Diameter: 3-50mm
Length For Applicable Nylon Ties: 60mm/80mm/100mm/120mm Tying Speed: 1.3 Sec/pcs
Max Tension Force: 20N Done For The Tail Of Tie: 1-3mm
Capacity: 1,500-1,800pcs/hr
High Light:

Nylon Cable Ties Machine 60mm

,

120mm Nylon Cable Ties Machine

,

Self Locking Cable Tying Machine

Product Description

CX-2000D Automatic Wiring Accessories Self-Locking Nylon Cable Ties Tying Machine​



Features:

1 Bulk nylon ties can realize automatic feeding, eliminating the cumbersome process of manual feeding.
2 It can automatically thread the locking tie and automatically cut the tie, saving time and labor. The maximum production capacity is about 1800 per hour, which can improve the work efficiency by at least 4 times.
3 The binding machine is a PLC touch screen control circuit with simple operation and good working stability.
4 It has a wide range of applications. It can tie all kinds of linear or circular arc products (diameter greater than 30mm). The diameter of the binding part can be adapted from 3-50mm.
5 The tightness of the tie is digitally adjustable on the touch screen, and the tail of the tie is digitally adjustable on the touch screen
6 No need for air supply is required.



Description:
The machine can tie and twist the cable automatic. The head length, tail length, total winding length can be adjusted. Easy to operate and labors are saved improving output.


Technical parameter

Model of machine CX-2000D
Cable tie width 3mm/4mm
Finished cable diameter 3-50mm
Length for applicable nylon ties 60mm/80mm/100mm/120mm
Max Tension force 20N
Tying speed 1.3 sec/pcs
Voltage&frequency  AC 220V 50/60Hz
Done for the tail of tie 1-3mm
Power 100W
Capacity 1,500-1,800pcs/hr
Dimension L1,230mm*W550mm*H800mm
Weight 150kg





Self Locking Nylon Cable Ties Machine 60mm To 120mm Tie Length 0Self Locking Nylon Cable Ties Machine 60mm To 120mm Tie Length 1
