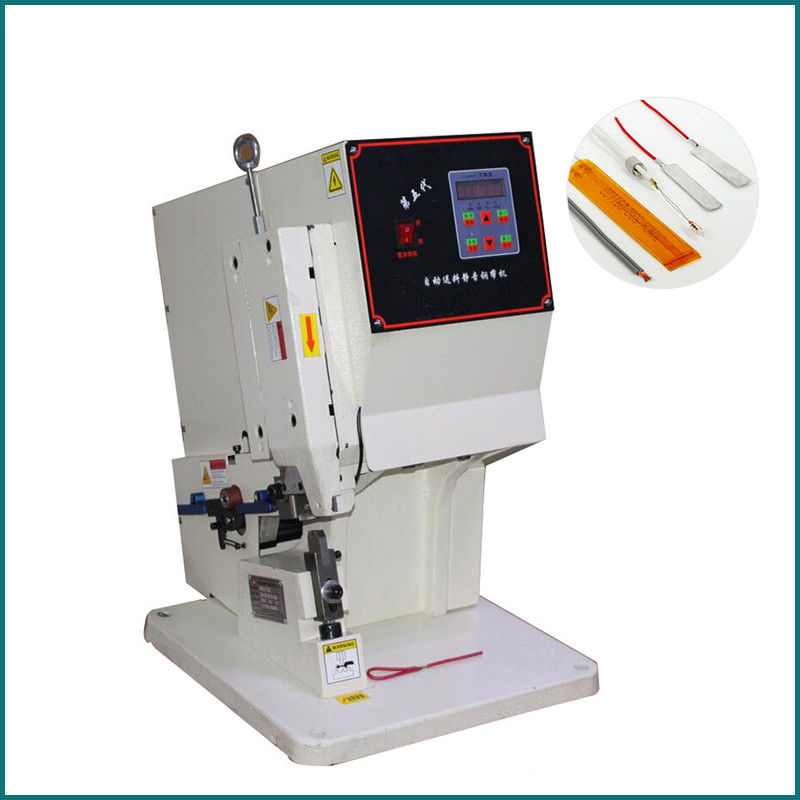

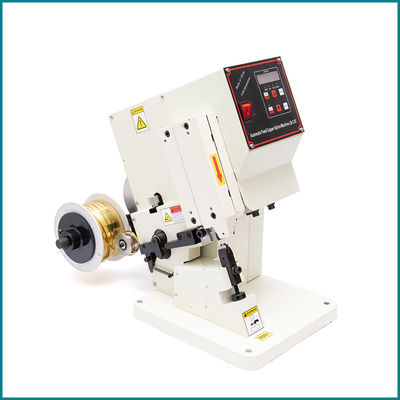

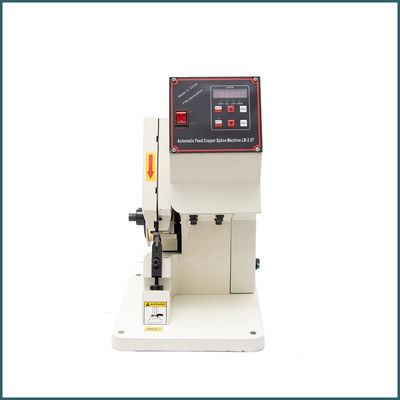

4.0T 1.5kw Semi Automatic Crimping Machine For Copper Belt Tape Joint

4.0T 1.5kw Semi Automatic Crimping Machine For Copper Belt Tape Joint

Product Details:

Place of Origin: CHINA
Brand Name: CHENXIN
Certification: ISO9001
Model Number: CX-TD04

Payment & Shipping Terms:

Minimum Order Quantity: 2/Set
Price: FOB Shenzhen
Packaging Details: wooden case/boxes
Delivery Time: 7-10 working days
Payment Terms: T/T
Supply Ability: 500 sets per month
Get Best Price Contact Now

Detail Information

Feeding Length: 1mm-99.9mm Wire Diameter: φ5mm-φ25mm
Splice Tolerance: ±0.1mm Tension: 50kg
Warranty: 1 Year. 24hr Online Technical Guidance
High Light:

1.5kw Semi Automatic Crimping Machine

,

4.0T Copper Belt Crimping Machine

,

4T Copper Joint Pressing Machine

Product Description

CX-TD04 Automatic Copper Belt Crimping Machine Copper Tape Cable Wire Splicing&Copper Joint Pressing Machine​



Technical parameter

Display mode Push-button screen
Feeding length 1mm-99.9mm
Wire diameter φ5mm-φ25mm
Splice force 4.0T
Tension 50kg
Splice tolerance ±0.1mm
Motor power 1.5kw
Average power consumption 0.025kw
Work rated current 6A-10A
Voltage&Frequency AC 220/110V 50/60Hz
Dimension 650mm*400mm*650mm
Weight 80kg

4.0T 1.5kw Semi Automatic Crimping Machine For Copper Belt Tape Joint 04.0T 1.5kw Semi Automatic Crimping Machine For Copper Belt Tape Joint 1
