CFM Automatic Double End Terminal Crimping Machine 0.5Mpa-0.7Mpa Air Pressure

CFM Automatic Double End Terminal Crimping Machine 0.5Mpa-0.7Mpa Air Pressure

Product Details:

Place of Origin: CHINA
Brand Name: CHENXIN
Certification: ISO9001
Model Number: CX-01D

Payment & Shipping Terms:

Minimum Order Quantity: 1/Set
Price: FOB Shenzhen
Packaging Details: wooden case/boxes
Delivery Time: 10-15 working days
Payment Terms: T/T
Supply Ability: 150 sets per month
Get Best Price Contact Now

Detail Information

Applicable Wire: AWG#30-AWG#18(Suitable For Wires Of Different Specifications And Colors ) Cutting Length: 13mm-99,999mm
Stripping Length: A Side 0-6mm; B Side 0-10mm Capacity: 3,200-3,800pcs/hr (subject To Actual Conditions)
Cutting Accuracy: <0.1mm+0.005*cutting L Adaptable Terminal: The Pitch Is 0.8-3.96mm
Crimping Force: 2T/ 3T Super Mute Terminal Crimping Machine Detection Device: With Terminal Or Not, No Wires Alarm, Air Pressure Detection, Housing Plug And Unplug Force Detection
Warranty: 1 Year. 24hr Online Technical Guidance
High Light:

CX 01D Terminal Crimping Machine

,

0.5Mpa Terminal Crimping Machine

,

0.7Mpa Automatic Crimping Machine

Product Description

CX-01D CFM Automatic Double End Terminal Crimping Machine



Equipment Function:



Name of the machine CX-01D double end terminal crimping(thin wire)
Function A, B side cutting, stripping, crimping
Control Method HIM+micro computer

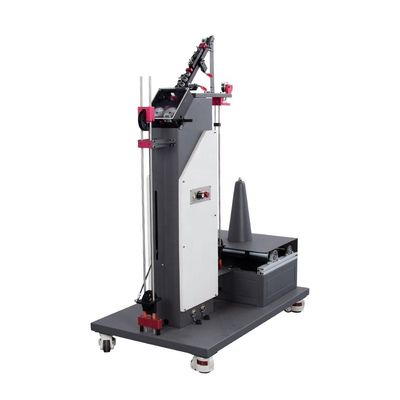

Take up system Computer automatic pre-feeding device, suitable for no-shaft coiling wire + with-shaft coiling wire
Detection Device With terminal or not, No wires alarm, air pressure detection, housing plug and unplug force detection
Terminal pressure detection system Optional installation (applicable for domestic and imported systems)
Defective product handling Sorting (cutting device can be installed)
Adaptable mold OTP standard horizontal mold, straight mold, flag figure mold
Applicable housing suitable for multiple pins and different distances of the pin
Crimping force 2T/3T Super Mute terminal crimping machine



Technical Parameter



Voltage 50/60Hz 220V single phase
Cutting Length 13mm-99,999mm
Applicable cable

AWG#20-AWG#32(2 wheels feeding)

AWG#18-AWG#14(4 wheels feeding)

adaptable terminal The pitch is 0.8-3.96mm
Capacity 3,200-3,800pcs/hr (subject to actual conditions)
Stripping Length A side 0-6mm; B side 0-10mm
Cutting accuracy ±(0.2%*L+1)mm
Air Pressure 0.5-0.7Mpa(5-7kg/m³)
Dimension 1,400*800*1,500mm take-up 920*560*1300mm
Weight about 450kg±15 take-up 80kg



Device Configuration

Motor 4 sets of Mitsubishi + 2 set of Fuji+1 set of stepping motor
Pneumatic Components

6 sets of SMC Cylinder(Air tube, air pressure adjustment valve all adopt SMC )

8 sets of SMC magnetic valve

Screw module 2 sets of THK, 1 set of Kuroda Seiko, 2 sets TBI
Guide rail 14 sets of THK / Hiwin linear guide
Sensor Japanese Panasonic
Belt American Gates Brand
Bearing Japnese NSK
Blades t is made of imported alloy steel, processed by slow-moving wire, precision ground, and durable

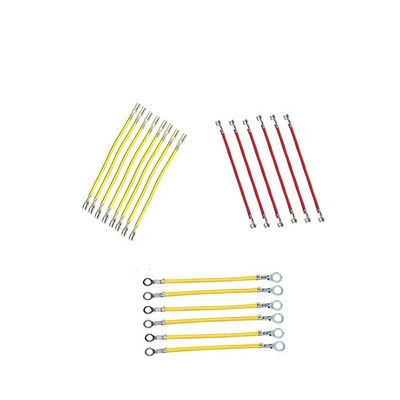

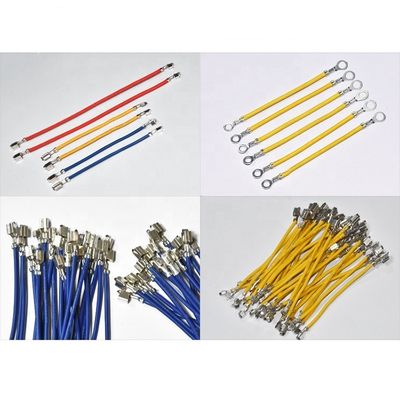

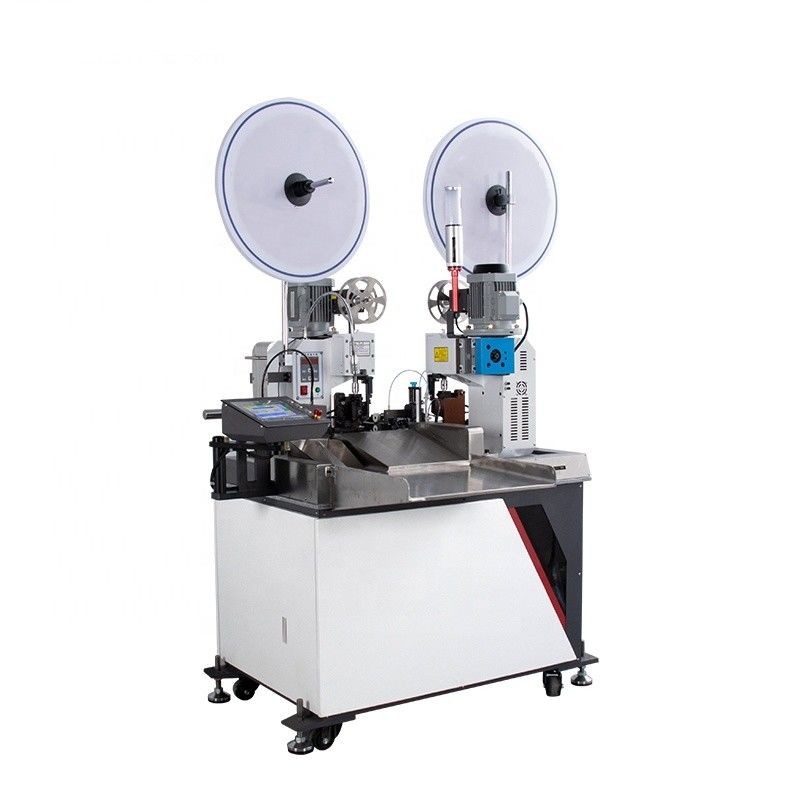

CFM Automatic Double End Terminal Crimping Machine 0.5Mpa-0.7Mpa Air Pressure 0CFM Automatic Double End Terminal Crimping Machine 0.5Mpa-0.7Mpa Air Pressure 1
