Automatic Wire Twisting And Tinning Machine 60cm-150cm Cut Length

Automatic Wire Twisting And Tinning Machine 60cm-150cm Cut Length

Product Details:

Place of Origin: China
Brand Name: CX
Certification: ISO9001
Model Number: CX-01A

Payment & Shipping Terms:

Minimum Order Quantity: 1/set
Price: FOB Shenzhen
Packaging Details: wooden case
Delivery Time: 10-15 working days
Payment Terms: T/T
Supply Ability: 150sets/month
Get Best Price Contact Now

Detail Information

Automation: Full Auto Cutting Length: 10mm-600mm(600-1500mm Can Be Customized)
Adaptable Wire: AWG#16-AWG#32 Can Process Double Parallel Wire,FFC Stripping Length: 0-20mm
Twisting Length: 3-20mm Tinning Length: 0-20mm
Cutting Accuracy: ±(0.2%*L+1)mm Capacity: AWG#22-AWG#32,1-8pcs, 9,000-11,000pcs/hr AWG#20-AWG#18, 1-5pcs, 4,000-5,500pcs/hr AWG#18-AWG#16, 1-3pcs, 2,700-3,000pcs/hr
Warranty: 1 Year, 24hr Online Techinical Support
High Light:

Wire Twisting And Tinning Machine 60cm

,

150cm Wire Twisting And Tinning Machine

,

AWG32 Automatic Wire Tinning Machine

Product Description

CX-01A Wire Cable Assemblies Automatic Wire Twisting And Tinning Machine​

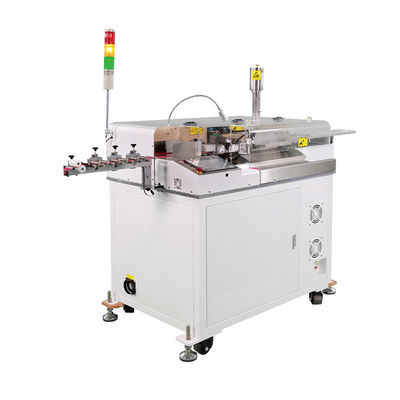

Automatic Wire Twisting And Tinning Machine 60cm-150cm Cut Length 0

Functions:

Name and model of machine CX-01A Full auto double-end wire tinning machine
Main functions A, B sides wire cutting, stripping, twisting, tinning. with smoke absorbing function
Control method HMI+Microcomputer
Detective Device with wire or not, air pressure detective



Technical Parameter:

Voltage Ac220V single phase, 50/60Hz
Cutting length 10mm-600mm(600-1500mm can be customized)
Adaptable wire AWG#16-AWG#32 can process double parallel wire,FFC
Capacity

AWG#22-AWG#32,1-8pcs, 9,000-11,000pcs/hr

AWG#20-AWG#18, 1-5pcs, 4,000-5,500pcs/hr

AWG#18-AWG#16, 1-3pcs, 2,700-3,000pcs/hr

Stripping Length 0-20mm
Twisting length 3-20mm
Tinning length 0-20mm
Cutting accuracy ±(0.2%*L+1)mm
Air pressure 0.5-0.7Mpa (5-7kg/m³)
Diamension 1,210*770*1,270mm
Weight about 380kg±15kg



Device Configuration

Motor 6 sets of Japan Mitsubishi servo motors
Pneumatic Components Cylinder, air pipe and air pressure regulating valve are all provided by Japanese SMC original factory + 11 sets of SMC Cylinder;3 sets of an air pressure regulating valve, 9 sets of SMC magnetic valve
Screw 3 sets of TBI
Slide 5 sets Taiwan Hiwin
Sensor Japanese Panasonic
Belt American Gates Brand
Bearing Japnese NSK
Blades t is made of imported alloy steel, processed by slow-moving wire, precision ground, and durable

Automatic Wire Twisting And Tinning Machine 60cm-150cm Cut Length 1
