AWG32 AWG22 5 Wires Dip Tinning Machine Cable Crimping Twisting Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO90001 |
| Model Number: | CX-02A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/Set |
|---|---|
| Price: | Fob Shenzhen |
| Packaging Details: | wooden case |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 150 sets per month |
|
Detail Information |
|||
| Cutting Length: | 10mm-600mm(min.length 8mm) | Adaptable Wire: | AWG#18-AWG#32 |
|---|---|---|---|
| Adaptable Terminal: | 1.0/1.25/1.5/2.0/2.54/3.96mm Horizontal, Straight Mold Is Sharable | Capacity: | AWG#32-AWG#22,(5 Wires One Time Optional) Length:10-600mm, 4,000-6,500pcs.hr ＞AWG#22, 3 Wires One Time: 2,700-3,000pcs/hr |
| Stripping Length: | 0-7mm(7-15mm Can Be Customized) | Cutting Accuracy: | ±(0.2%*L+1)mm |
| Air Pressure: | 0.5-0.7Mpa(5-7kg/m³) | Twisting Length: | 3-7mm |
| Tinning Length: | 0.5-7mm | Warranty: | 1 Year. 24hr Online Technical Guidance |
| Highlight: | AWG22 Dip Tinning Machine,AWG32 Dip Tinning Machine,Cable Crimping Twisting Machine |
||
Product Description

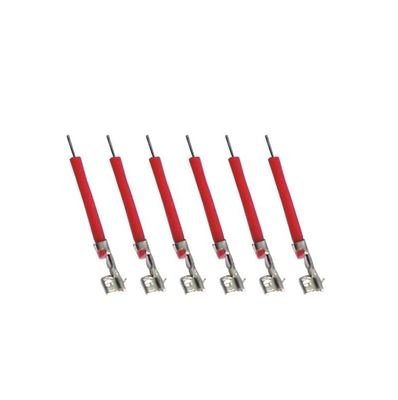

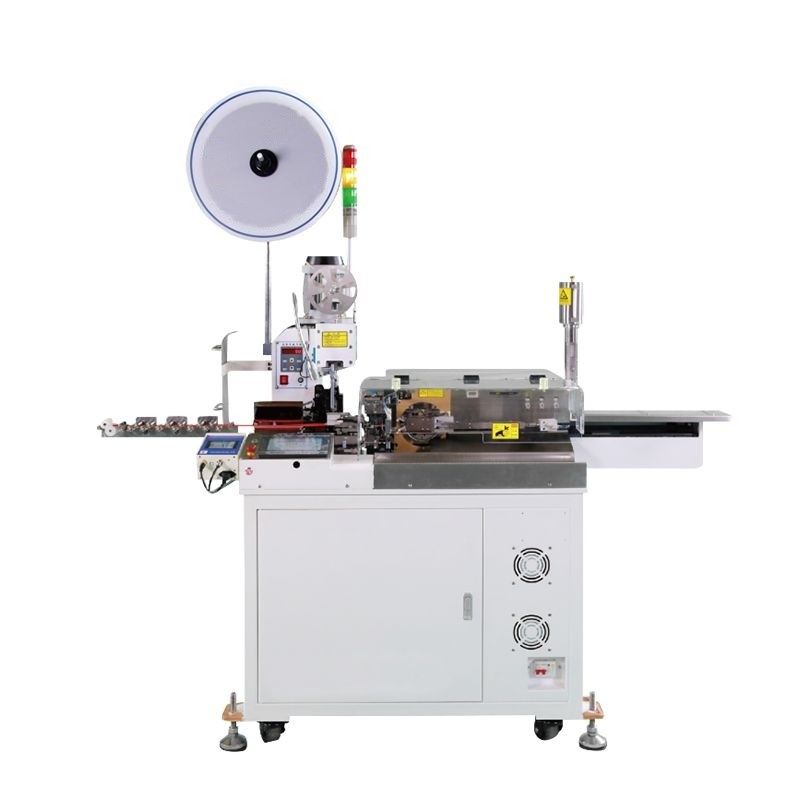

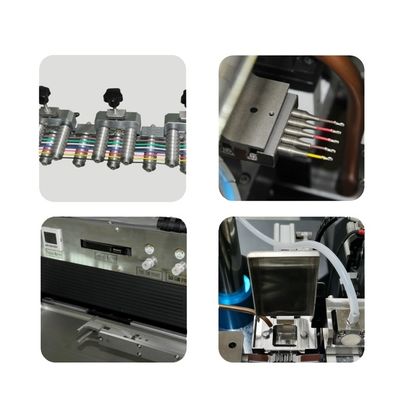

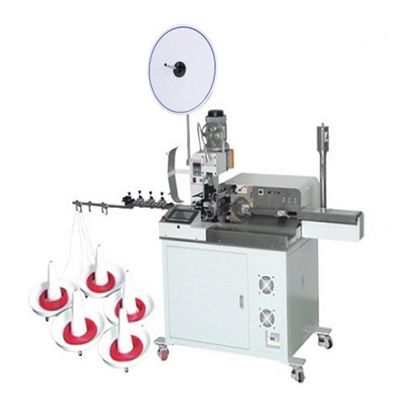

CX-02A Fully Automatic Wire Cable Crimping Twisting Dip Tinning Machine With 5 Wires
Equipment Function:
| Name of the machine | CX-02A Fully Automatic Wire Cable Crimping Twisting Dip Tinning Machine With 5 Wires |
| Function |
A side cutting, stripping, crimping; B side twisting, tinning. with smoke automatically absorb function. |
| Control Method | HMI+Microcomputer |

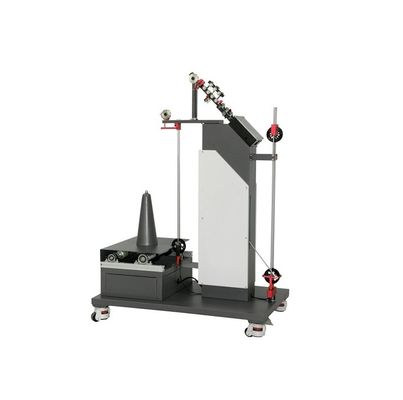

| Take-up system | computer automatic pre-feeding device, suitable for coiled wire +reel wire |
| Detection Device | With terminal or not, No wires alarm, air pressure detection |
| Terminal pressure detection system | Optional installation (applicable for domestic and imported systems) |
| Applicable mold | OTP standard mold, straight mold, flag figure mold, European, Korean mold can be customized |
| Crimping force | 2T Super mute terminal crimping machine |
Technical Parameter
| Voltage | 50/60Hz 220V single-phase |
| Cutting Length | 10mm-600mm(min.length 8mm) |
| Applicable cable | AWG#18-AWG#32 |
| Applicable terminal | 1.0/1.25/1.5/2.0/2.54/3.96mm horizontal, straight mold is sharable |
| Capacity |
AWG#32-AWG#22,(5 wires one time optional) length:10-600mm, 4,000-6,500pcs.hr ＞AWG#22, 3 wires one time: 2,700-3,000pcs/hr |
| Stripping Length | 0-7mm(7-15mm can be customized) |
| Twisting length | 3-7mm |
| Tinning length | 0.5-7mm |
| Cutting accuracy | ±(0.2%*L+1)mm |
| Air Pressure | 0.5-0.7Mpa(5-7kg/m³) |
| Dimension | 1,700mm*739mm*1,500mm; take-up: 920mm*560mm*1,300mm |
| Weight | about 450kg±15kg; take-up: 80kg |
Device Configuration
| Motor | 5 sets of Japan Mitsubishi servo motors |
| Pneumatic Components | 11 sets of electromagnetic valve + 11 sets of SMC Cylinder |
| Screw | 3 sets TBI |
| Slide | 5 sets of Taiwan Hiwin |
| Sensor | Japanese Panasonic |
| Belt | American Gates Brand |
| Bearing | Japnese NSK |
| Blades | t is made of imported alloy steel, processed by slow-moving wire, precision ground, and durable |
