AC220V Dia1 - 25mm New Energy Harness Branching Machine
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | CHENXIN |
| Certification: | ISO9001 |
| Model Number: | CX-50 / 60L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/set |
|---|---|
| Price: | FOB / EX-work / CF / CIF |
| Packaging Details: | box |
| Delivery Time: | 2-3 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500/sets per months |
|
Detail Information |
|||
| Voltage: | AC220V 50/60HZ | Brush Distance: | Adjustable |
|---|---|---|---|
| Purpose: | 13KG Shielding Wire And Braided Wire Are Used For Core Wire Separation, Bristling And Wire Removal | ||
| High Light: | Dia25mm Harness Branching Machine,AC220V Harness Branching Machine,Dia1mm Harness Branch Machine |
||
Product Description

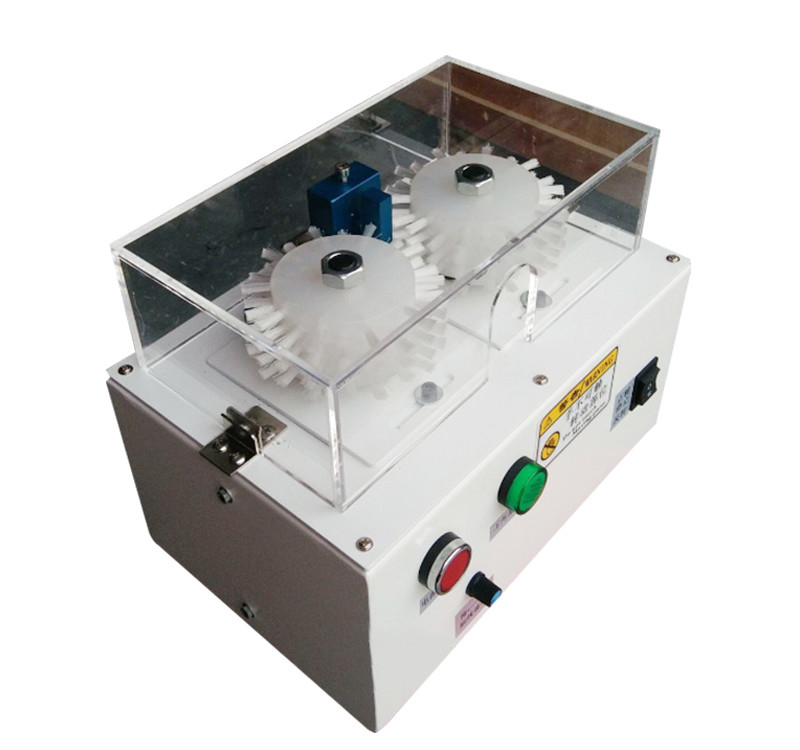

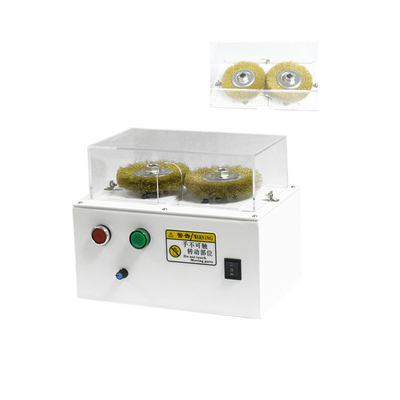

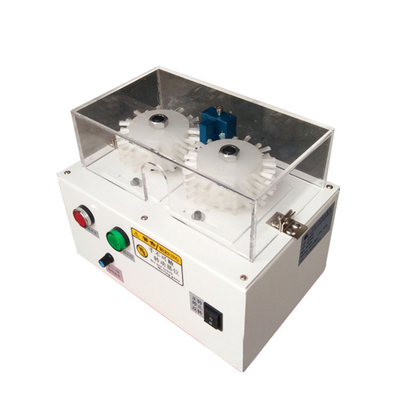

CX-50/60L Direct Sell New Energy Harness Shielding Net Card Combing For Shield Splitting Wire And Cable
Technical Parameter:
| Model | CX-50 High Speed Wire Branching Machine | CX-60L High Speed Wire Branching Machine |
| Voltage | AC220V 50/60HZ | AC220V 50/60HZ |
| Brush distance | Adjustable | Adjustable |
| Brushing length | 5-50MM | 40-200MM |

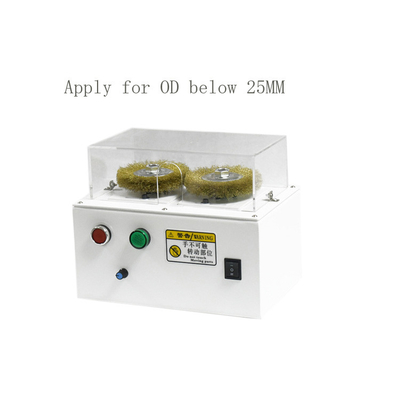

| Wire diameter | 1-25MM | 1-25MM |
| Speed | 0-6000turn/min | 0-2000turn/min |
| Size | 300x210x250mm | 450x370x340mm |
| Weight | 13KG | 45KG |

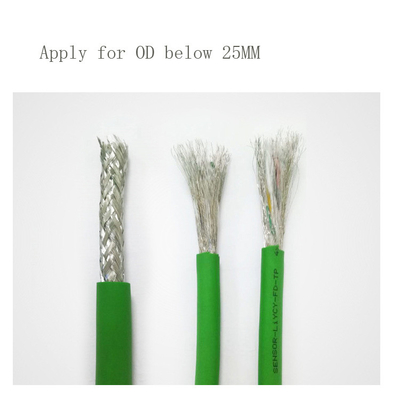

| Purpose | Shielding wire and braided wire are used for core wire separation, bristling and wire removal | |
