300W 30mm Automatic Silicone Tube Cutting Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO90001 |
| Model Number: | CX-30X |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2/Set |
|---|---|
| Price: | FOB Shenzhen |
| Packaging Details: | boxes |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Material Outer Diameter: | φ4-φ30(φ30-φ45 Can Be Customized) | Cutting Length: | 1 - 99999.9 Mm |
|---|---|---|---|
| Cutting System: | Motor Driving And Blade Cutting | Cutting Tolerance: | 0.005 * L (L = Cutting Length) |
| Cutting Stroke: | 30mm | Cutting Speed: | 10-60pcs/Min(depending On The Length Of Cutting) |
| Highlight: | 30mm Silicone Tube Cutting Machine,300W Silicone Tube Cutting Machine,0.3KW automatic tube cutting machine |
||
Product Description

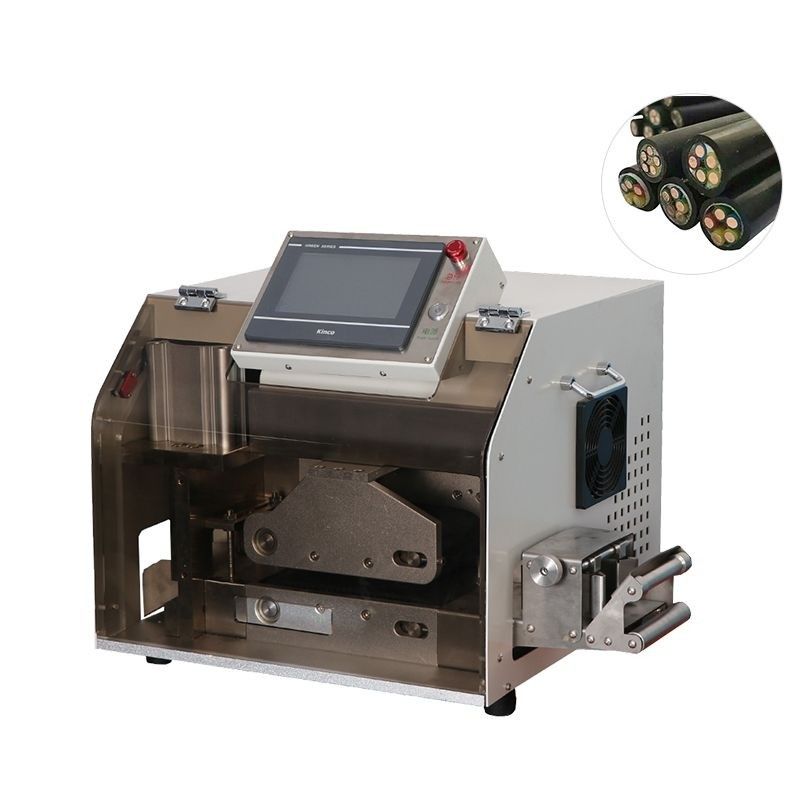

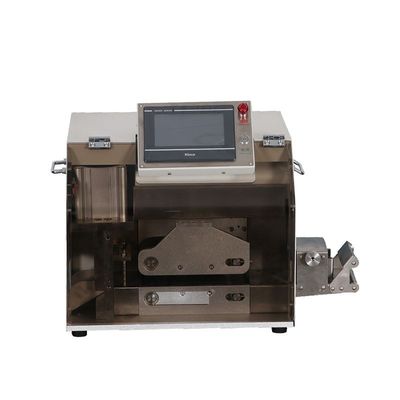

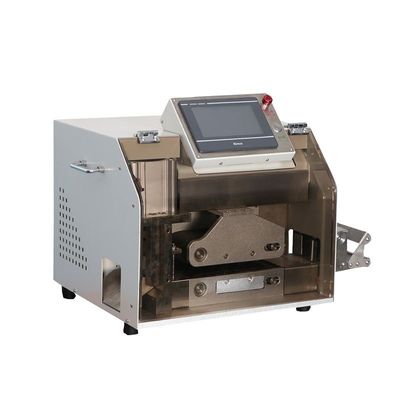

CX-30X Automatic Silicone Tube Cutting Machine
The Control panel is showed as LCD, which light touching the key operate, whole Chinese-English interface, It's easy to operate.
Cutting Diameter 4-30mm no need to change blades.
| Name and model of machine | CX-30X Silicone tube cutting machine |
| Cutting outside diameter | φ4-φ30(φ30-φ45 can be customized) |
| Cutting stroke | 30mm |
| Cutting Length | 1 - 99999.9 mm |
| Speed of Cutting | 10-60pcs/Min(depending on the length of cutting) |
| Cutting system | motor driving and blade cutting |
| Cutting tolerance | cutting length±1% |
| Voltage | AC 220V 50/60Hz |
| Control system | PLC+HMI |
| Notch | clean and smooth, gradient＜3° |
| Power | 300W |
| Weight | 70kg |
| Dimension | 580*470*500mm |
