300W 30mm Automatic Silicone Tube Cutting Machine

300W 30mm Automatic Silicone Tube Cutting Machine

Product Details:

Place of Origin: CHINA
Brand Name: CHENXIN
Certification: ISO90001
Model Number: CX-30X

Payment & Shipping Terms:

Minimum Order Quantity: 2/Set
Price: FOB Shenzhen
Packaging Details: boxes
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 500 sets per month
Get Best Price Contact Now

Detail Information

Material Outer Diameter: φ4-φ30(φ30-φ45 Can Be Customized) Cutting Length: 1 - 99999.9 Mm
Cutting System: Motor Driving And Blade Cutting Cutting Tolerance: 0.005 * L (L = Cutting Length)
Cutting Stroke: 30mm Cutting Speed: 10-60pcs/Min(depending On The Length Of Cutting)
High Light:

30mm Silicone Tube Cutting Machine

,

300W Silicone Tube Cutting Machine

,

0.3KW automatic tube cutting machine

Product Description

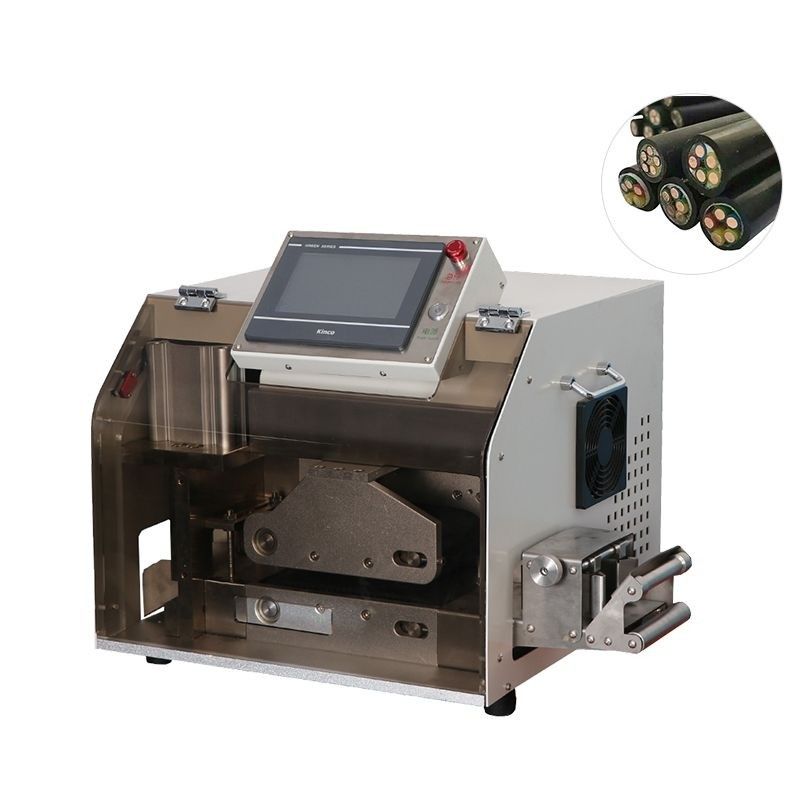

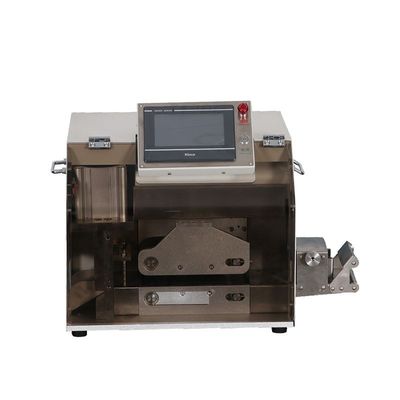

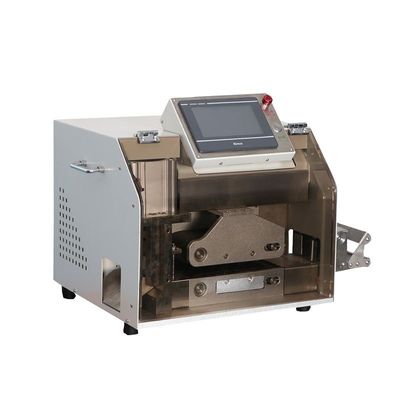

CX-30X Automatic Silicone Tube Cutting Machine



The Control panel is showed as LCD, which light touching the key operate, whole Chinese-English interface, It's easy to operate.

Cutting Diameter 4-30mm no need to change blades.



Name and model of machine CX-30X Silicone tube cutting machine
Cutting outside diameter φ4-φ30(φ30-φ45 can be customized)
Cutting stroke 30mm
Cutting Length 1 - 99999.9 mm​
Speed of Cutting 10-60pcs/Min(depending on the length of cutting)
Cutting system motor driving and blade cutting
Cutting tolerance cutting length±1%
Voltage AC 220V 50/60Hz
Control system PLC+HMI
Notch clean and smooth, gradient<3°
Power 300W
Weight 70kg
Dimension 580*470*500mm
