SKD11 Automated Tube Cutting Machine AC220V 50Hz 60Hz
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO90001 |
| Model Number: | CX-100G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2/sets |
|---|---|
| Price: | FOB Shenzhen |
| Packaging Details: | boxes |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Cutting Length: | 0.1-10,000mm | Cutter Stroke: | 15mm |
|---|---|---|---|
| Cutting Tolerance: | 0.002*L/L=cutting Length | Cutting Width: | 0.1-100mm Adjustable |
| High Light: | SKD11 Automated Tube Cutting Machine,Automated Tube Cutting Machine AC220V 50Hz,50Hz 60Hz automatic hose cutting machine |
||
Product Description

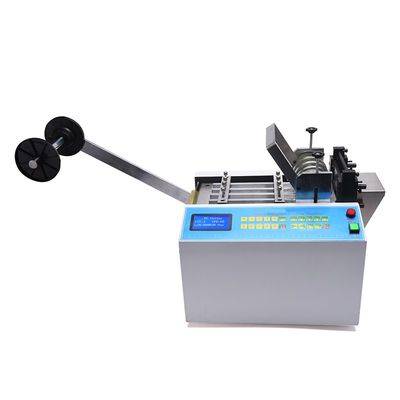

CX-100G Automatic Tube Pipe Cutter Machine Cutting For Heat Shrink Tube Fiber Glass Corrugated Plastic Tape Zipper
Features:
1, Simple operation panel. One-key switch between Chinese and English. LED liquid crystal display.
2, Multi-function buttons. The feeding speed is adjustable, the total number can be set, and the section and batch can be set. Adjustable segment pause time.
3, Rugged and durable guide bar. The guide bar is fixed by aluminum alloy. Not easy to wear, can cut multiple strips at the same time.
Technical parameter
| Cutting Length | 0.1-10,000mm |
| Cutter stroke | 15mm |
| Cutting tolerance | 0.002*L/L=cutting length |
| Cutting width | 0.1-100mm adjustable |
| Feeding motor | 86-80 step motor |
| Cutting motor | 86-113 step motor |
| Feeding accuracy | step motor 0.01mm |
| Pressure regulation | with |
| Cutter material | SKD11 High-speed steel |
| Display method | blue screen in English interface |
| Memory function | with |
| Voltage | AC 220V 50-60Hz |
| Dimension | L 400mm * W 300mm * H339mm |
| Weight | 29kg |
Want to Know more details about this product
