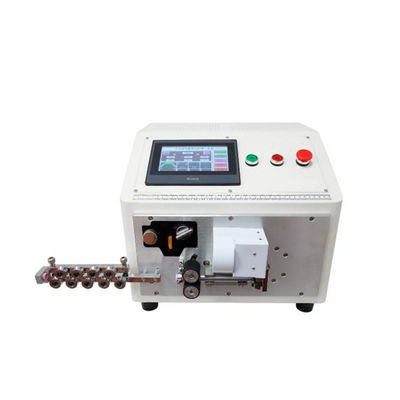

0.1mm2-16mm2 Cable Cutting Stripping Machine 7 Inch LCD Touch Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO9100 |
| Model Number: | CX-10400B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2/SET |
|---|---|
| Price: | Fob Shenzhen |
| Packaging Details: | boxes |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Cutting Length: | 0.1-99,999mm (according To The Size Of The Wire) | Stripping Length: | Head: 0.1mm-50mm End: 0.1-20mm |
|---|---|---|---|
| Applicable Wire: | 0.1-16mm² AWG#30-AWG#8 | Capacity: | 1,000-2,000pcs/hr(depending On The Size And Material Of Wire) |
| Cutting Tolerance: | Stepping Motor 0.01mm | Voltage: | AC220V/50Hz |
| Bending Length: | The Last Turn ＞25mm | Bending Angle: | 30-90 Degree |
| Intermediate Stripping Section: | 13(customized) | ||
| High Light: | 16mm2 cable cutting stripping machine,0.1mm2 cable cutting stripping machine,LCD portable wire stripping machine |
||
Product Description

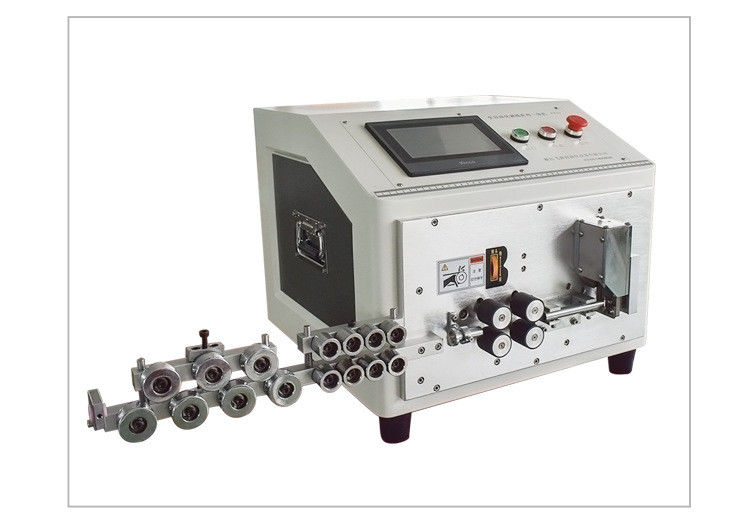

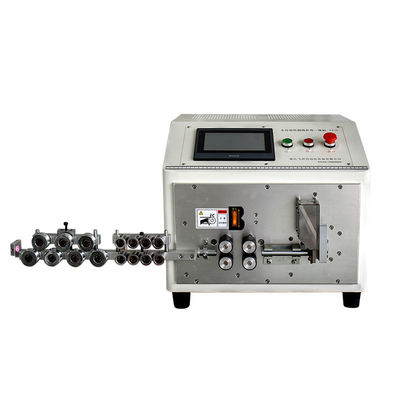

CX-10400B Automatic Computer Wire Cable Cutting Stripping Bending Machine
Features:
32-bit intelligent control system. 32-bit Cortex-M3 core processor is adopted, and the running speed is 72mm one turn.
Several pieces of information can be stored. The stored information enables the operator to access and modify the data quickly and conveniently.

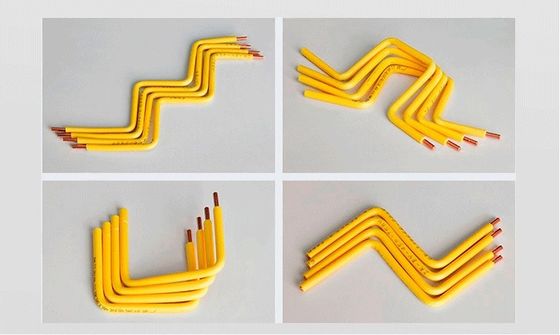

Tool holder, bending device. These 13 sections can be continuous on one cable, and the bending angle can be adjusted from 30 degrees to 90 degrees. One cable can bend both sides at the same time.
Microcomputer touch screen. Seven-inch LCD touch screen, which can be switched between Chinese and English. Clear display and easy operation
Technical parameter
| Model and name of the machine | CX-10400B auto wire stripping bending machine |
| Cutting length | 0.1-99,999mm (according to the size of the wire) |
| Stripping length |
head: 0.1mm-50mm end: 0.1-20mm |
|
Display mode |
7 inch LCD touch screen |
| Applicable wire | 0.1-16mm² AWG#30-AWG#8 |
| Capacity | 1,000-2,000pcs/hr(depending on the size and material of wire) |
| Bending length | he last turn ＞25mm |
| Bending angle | 30-90 degree |
| Intermediate stripping section | 13(customized) |
| Cutting tolerance | stepping motor 0.01mm |
| Voltage | AC220V/50Hz |
| Dimension | L500mm*W480mm*H380mm |
| Weight | 54kg |
