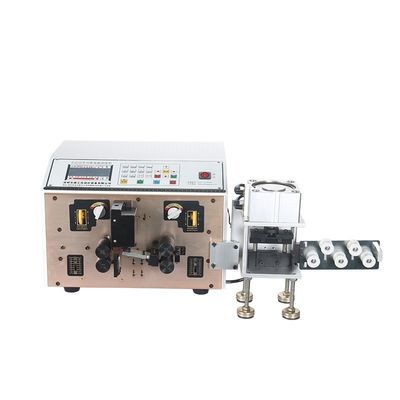

Fully Automatic Wire Cutting Stripping Machine 0.1SQMM-6SQMM PVV PU TPE Cable
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO9100 |
| Model Number: | CX-130 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2/SET |
|---|---|
| Price: | Fob Shenzhen |
| Packaging Details: | boxes |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Cutting Length: | 0.1-9,999mm | Stripping Length: | Head:＜35mm; End ＜50mm |
|---|---|---|---|
| Applicable Wire: | ≤6mm² | ||
| High Light: | 0.1SQMM commercial wire stripping machine,PVV commercial wire stripping machine,6SQMM fully automatic wire cutting stripping machine |
||
Product Description
0.1-6 SQMM Automatic Computer Single Wire Cable Peeling Stripping Machine
Features:
CX-130B is designed for the processing of wire harnesses below 4mm2. It is controlled by a single-chip microcomputer and driven by a stepping motor. The precision tool holder is used for wire cutting and peeling. Especially suitable for electronic wire processing. The machine is easy to operate. All cutting parameters can be set through the operation panel.
Technical parameter
| Model and name of the machine | CX-130B universal 2 wire cable stripping machine |
| Cutting length | 0.1-9,999mm (according to the size of the wire) |
| Stripping length | head:＜30mm; end:＜50mm |
|
Intermediate stripping section |
15 |
| Applicable wire | AWG#30-AWG#18 ＜4mm |
| Cable material | PVV, PU, TPE, Teflon, etc(can be customized) |
| Capacity | 1,000-8,000pcs/hr(depending of the size and material of wire) |
| Blade material | imported tungsten steel |
| Cutting tolerance | ±0.1mm(depending on the size and material of wire) |
| Voltage | AC220V/50Hz |
| Dimension | L450mm*W370mm*H300mm |
| Weight | 36kg |
With the development of the electronic industry, the requirements for wire harness processing are more and more light, thin, short, and small. Therefore, our company has specially developed this thin wire computer stripping machine cx-310a, which is specially used for awg12-awg30 wire.
Technical parameter
| Model and name of the machine | CX-130A Short and thin wire cable stripping machine |
| Cutting length | 0.1-9,999mm (according to the size of the wire) |
| Stripping length | head:＜30mm; end:＜50mm |
| Intermediate stripping section | 15 |
| Applicable wire | AWG#30-AWG#12; 0.3-4mm²; 0.6-5.0mm² |
| Cable material | Electronic wire, high-temperature wire, Teflon, |
| Capacity | 1,000-8,000pcs/hr(depending of the size and material of wire) |
| Blade material | imported high-speed steel |
| Cutting tolerance | ±0.1mm(depending on the size and material of wire) |
| Voltage | AC220V/50Hz |
| Dimension | L450mm*W370mm*H300mm |
| Weight | 36kg |
Cx-130n is specially designed for all kinds of electronic wires. It has the basic functions of full-automatic wire cutting, peeling, half-stripping, and intermediate stripping. It is equipped with a wire twisting device, which can twist the electronic wires, eliminating the manual wire twisting process and improving the production efficiency
Technical parameter
| Model and name of the machine | CX-130N Automatic wire cable stripping twisting machine |
| Cutting length | 0.1-9,999mm (according to the size of the wire) |
| Stripping length | head:＜30mm; end:＜50mm |
| Twisting length | 3-10mm |
| Intermediate stripping section | 13 |
| Applicable wire | AWG#30-AWG#14; 0.8-3.0mm² |
| Cable material | Teflon, silicone wire can not twist(customized) |
| Capacity | 1,000-8,000pcs/hr(depending of the size and material of wire) |
| Blade material | imported tungsten steel |
| Cutting tolerance | ±0.1mm(depending on the size and material of wire) |
| Voltage | AC220V/50Hz |
| Power | Min 20W-Max 220w |
| Dimension | L450mm*W720mm*H300mm |
| Weight | 36kg |
Cx-130d increases the motor based on the general model and has greater force. It can cut wires with an outer diameter of 6 mm².
Technical parameter
| Model and name of the machine | CX-130D Strong force automatic wire cable stripping machine |
| Cutting length | 0.1-9,999mm (according to the size of the wire) |
| Stripping length | head:＜35mm; end:＜50mm |
| Intermediate stripping section | 13 |
| Applicable wire | ≤6mm² |
| Cable material | PVV, PU, TPE, Teflon(customized) |
| Capacity | 1,000-8,000pcs/hr(depending of the size and material of wire) |
| Blade material | imported high-speed steel |
| Cutting tolerance | ±0.1mm(depending on the size and material of wire) |
| Voltage | AC 220V/50Hz |
| Power | 750W |
| Dimension | L450mm*W370mm*H300mm |
| Weight | 36kg |
