Rotary Blade Nylon Automated Tube Cutting Machine 1000W OEM
Product Details:
Place of Origin: | CHINA |
Brand Name: | CHENXIN |
Certification: | ISO90001 |
Model Number: | CX-30X |
Payment & Shipping Terms:
Minimum Order Quantity: | 2/Set |
---|---|
Price: | FOB Shenzhen |
Packaging Details: | boxes |
Delivery Time: | 5-8 working days |
Payment Terms: | T/T |
Supply Ability: | 500 sets per month |
Detail Information |
|||
Material Outer Diameter: | φ4-φ30(φ30-φ45 Can Be Customized) | Cutting Length: | 1 - 99999.9 Mm |
---|---|---|---|
Cutting System: | Motor Driving And Blade Cutting | Cutting Tolerance: | 0.005 * L (L = Cutting Length) |
Cutting Stroke: | 30mm | Cutting Speed: | 10-60pcs/Min(depending On The Length Of Cutting) |
High Light: | Nylon Automated Tube Cutting Machine,1000W Automated Tube Cutting Machine,OEM Nylon Tube Cutting Machine |
Product Description

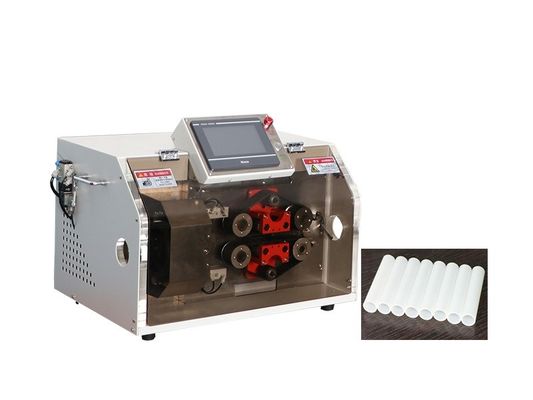

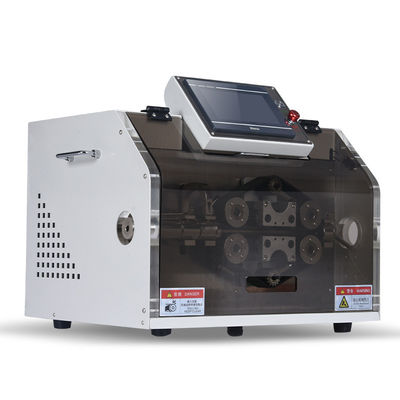

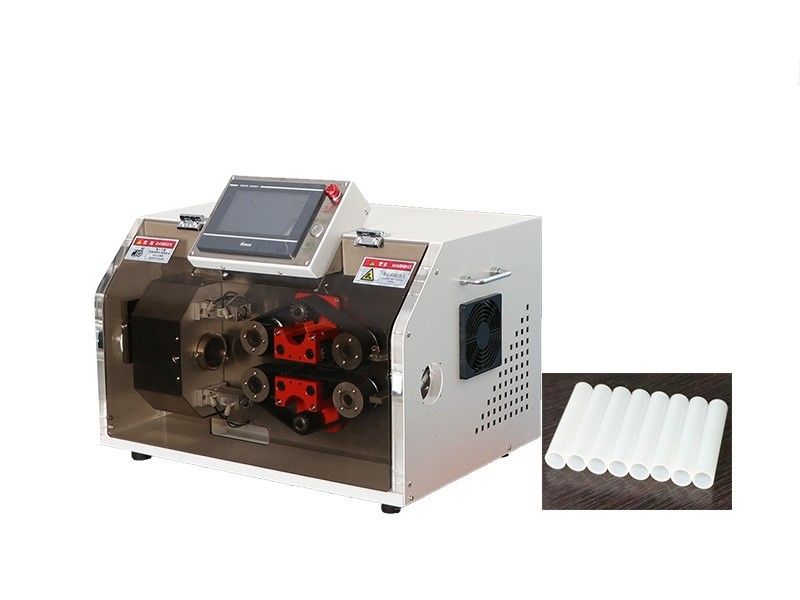

CX-30X Rotary Blade Automatic Nylon Tube Cutting Machine
The Control panel is showed as LCD, which light touching the key operate, whole Chinese-English interface, It's easy to operate.
Cutting Diameter 4-30mm no need to change blades.
Name and model of machine | CX-30X Silicone tube cutting machine |
Cutting outside diameter | φ4-φ30(φ30-φ45 can be customized) |
Cutting stroke | 30mm |
Cutting Length | 1 - 9,999 mm |
Speed of Cutting | 10-60pcs/Min(depending on the length of cutting) |
Cutting system | motor driving and blade cutting |
Cutting tolerance | cutting length±1% |
Voltage | AC 220V 50/60Hz |
Control system | PLC+HMI |
Notch | clean and smooth, gradient<3° |
Power | 1,000W |
Weight | 96kg |
Dimension | 800*580*450mm |
