Big Size OD 10mm Wire Stripping Machine Semi Automatic Pneumatic Cores Peeling
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENCIN |
| Certification: | ISO9001 |
| Model Number: | CX-1075 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5/Set |
|---|---|
| Price: | FOB Shenzhen |
| Packaging Details: | Carton case |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Wire Range: | 2-14AWG(2.5-35mm2) | Cable Diameter: | Max. 10mm |
|---|---|---|---|
| Stripping Length: | 2-30mm | Warranty: | 1 Year. 24hr Online Technical Guidance |
| Model EW-1075 Wire Range 2-14AWG(2.5-35mm2) Cable Diameter Max. 10mm Stripping Length 2-30mm: | 30mm | Air Pressure: | 0.5-0.8MPa |
| High Light: | OD 10mm Wire Stripping Machine,Cores Peeling Wire Stripping Machine,Pneumatic Wire Stripping Machine 0.8MPa |
||
Product Description

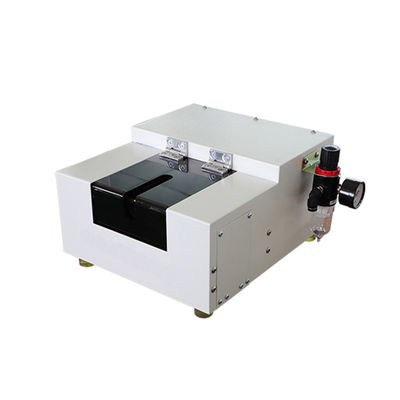

Big Size Wire Semi-Automatic Pneumatic Wire Cores Peeling Stripping Machine Stripper Machine
Feature
Stripping device with protective cover Mainly used to strip different sizes of wires, can strip inner coresconveniently and rapidly.
Technical Parameter
| Model | CX-1075 |
| Wire range | 2-14AWG(2.5-35mm2) |
| Cable diameter | Max. 10mm |
| Stripping length | 2-30mm |
| Stroke | 30mm |
| Dimension | 360*290*180mm |
| Weight | 15KGS |
| Air pressure |
0.5-0.8Mpa |
