High Accuracy DC Terminal Crimper 50HZ Semi Automatic Electric 8T Cable
Product Details:
| Place of Origin: | China(mainland) |
| Brand Name: | CHENXIN |
| Model Number: | CX-JYD2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | EX-WORK, FOB, CIF, C&F |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Crimping Force: | 1-6T | Stroke: | 30mm |
|---|---|---|---|
| Crimping Force: | 1500KG | Motor Power: | 0.55KW |
| Warranty: | 1 Year. 24hr Online Technical Guidance | Packaging Details: | Export Wooden Case |
| Power Supply: | AC110/220V/50HZ/60HZ | Application: | DC/AC/Single/Continuous Terminal/Single-action Pedal |
| High Light: | High Accuracy DC Terminal Crimper,Electric 8T Cable Terminal Crimping Machine,DC Terminal Crimper 50HZ |
||
Product Description

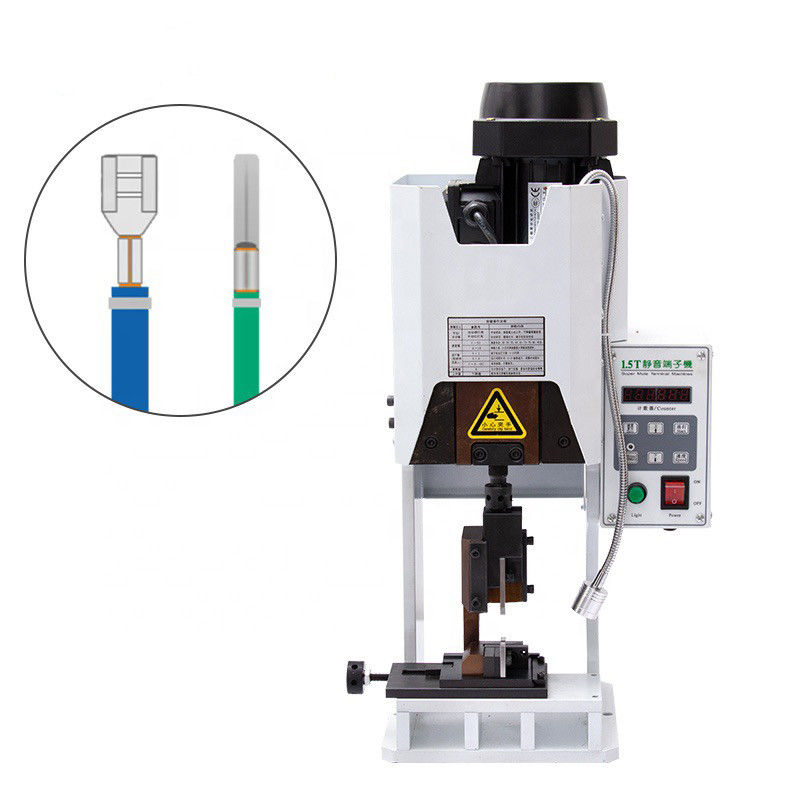

Semi Automatic Wire Terminal Crimping Machine
Features
- Voltage stability, high speed ,high accuracy.
- Used for computer terminal , DC terminal ,single terminal ,wire terminal.
- Lightweight structures , easy to move , low noise.
Strong points
Microcomputer Controller Continuous- crimping and speed adjusting by press the button.

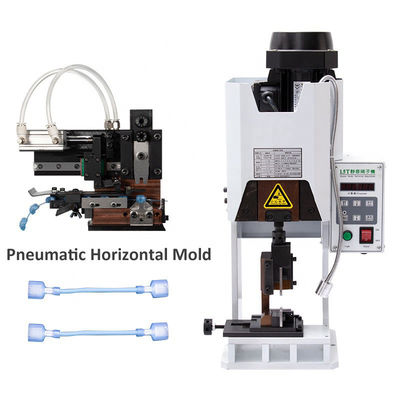

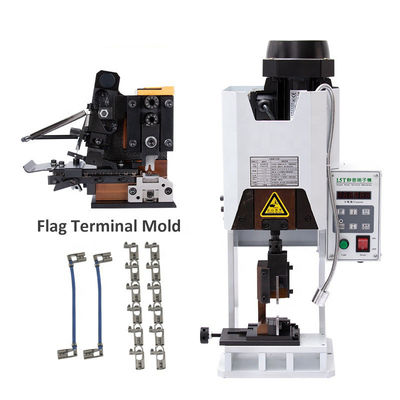

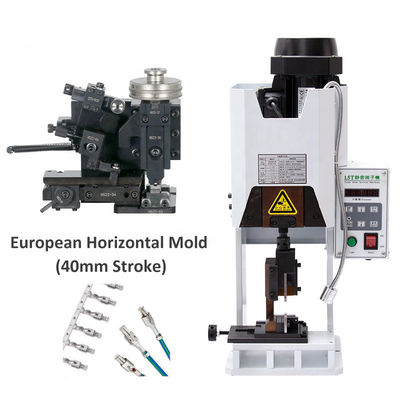

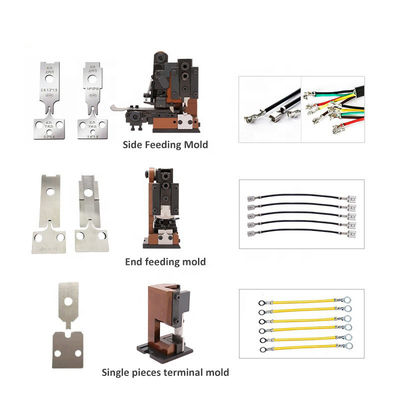

Easy Change Applicator- Suitable for horizontal/vertical/loose piece feeding terminal.
Pure copper Motor- Low noise, stable operation and long service life.
Vibrating Feeder-For automatic loose terminal feeding(optional)
Technical Parameter
|
Model
|
CX-JYD2 (1.5T-6T)
|
|||
|
Stroke
|
30mm
|
|||
|
Power Supply
|
AC110/220V/50HZ/60HZ
|
|||
|
Application
|
DC terminal , AC terminal , Single terminals, Continuous terminal, Single-action pedal
|
|||
|
Model
|
Crimping Force
|
Motor Power
|
Gross Weight
|
Packing Size
|
|
CX-JYD2-1
|
1500KG
|
0.55KW
|
55KGS
|
42*34*81cm
|
|
CX-JYD2-2
|
2000KG
|
0.75KW
|
65KGS
|
42*34*81cm
|
|
CX-JYD2-3
|
3000KG
|
1.1KW
|
69KGS
|
42*34*81cm
|
|
CX-JYD2-4
|
4000KG
|
1.5KW
|
102KGS
|
42*42*94cm
|
|
CX-JYD2-5
|
6000KG
|
1.5KW
|
132KGS
|
42*42*100cm
|
|
CX-JYD2-6
|
8000KG
|
1.5KW
|
165KGS
|
45*45*115cm
|
