Battery Cable Large Lug Crimping Machine Wire Terminal 6T-20T
Product Details:
| Place of Origin: | China(mainland) |
| Brand Name: | CHENXIN |
| Model Number: | CX-JYD03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | EX-WORK, FOB, CIF, C&F |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Function: | Crimping | Air Supply: | 0.5-0.7Mpa |
|---|---|---|---|
| Power Supply: | 110/220V 50/60HZ | Warranty: | 1 Year. 24hr Online Technical Guidanceyear. 24hr Online Technical Guidance |
| High Light: | Cable Large Lug Crimping Machine,20T Wire Terminal Crimping Machine,6T Large Lug Crimping Machine |
||
Product Description

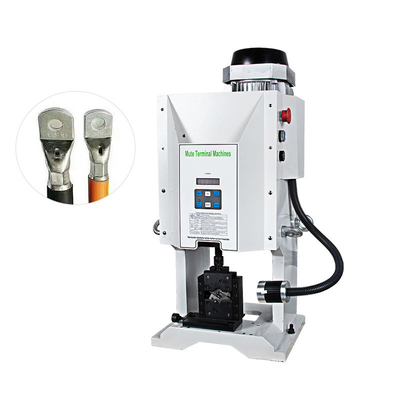

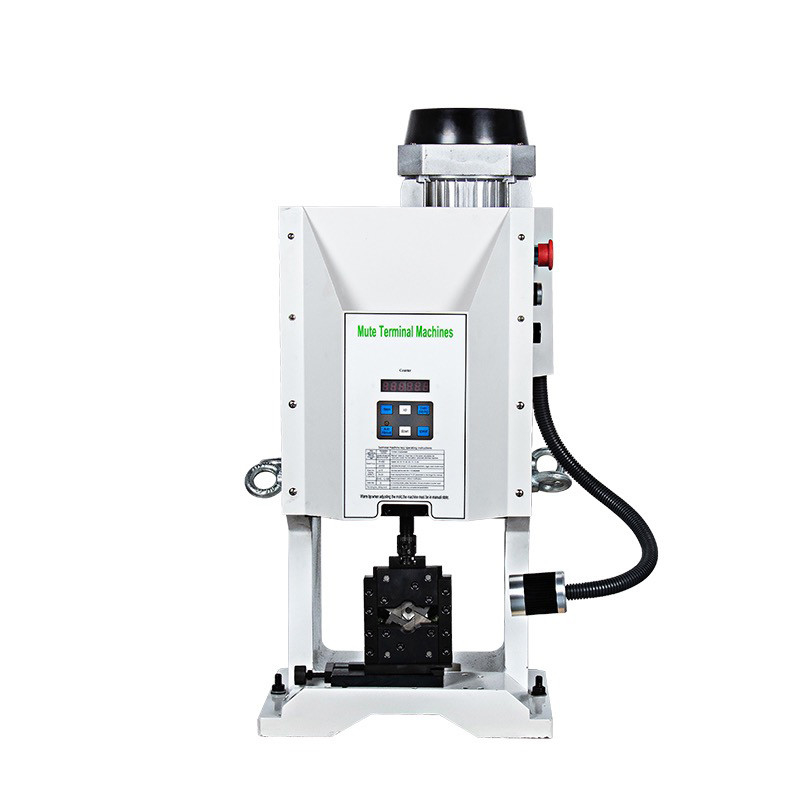

New Energy Wire Terminal Crimping Machine
Features
- English Button Operation: Simple operation,clear data,strong and durable, fast response.
- Suitable for various terminals: Stable performance,high precision,fast speed,good crimp quality.
- Mute and fast.
- High efficient and power saving.
- Precise positioning.
- One machine for multiple uses.
Technical Parameter
| Model | CX-JYD03 (6T-20T) | |||
| Stroke | 30mm/40mm | |||
| Power Supply | AC110/220V/50HZ/60HZ | |||

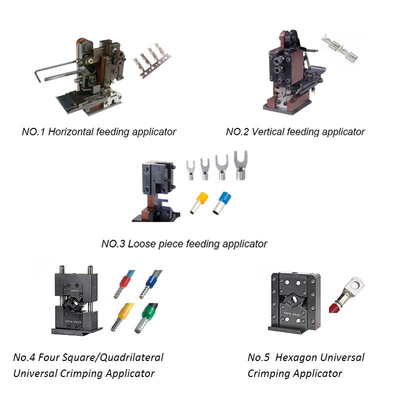

| Application | Horizontal feeding, Vertical feeding,Loose piece, Four square, Hexagon | |||

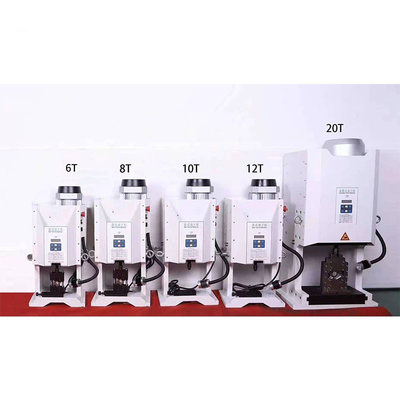

| Model | Crimping Force | Motor Power | Gross Weight | Packing Size |
| CX-JYD03-6T | 60KN | 2200W | 135KGS | 300*380*820mm |
| CX-JYD03-8T | 80KN | 3000W | 140KGS | 300*380*820mm |
| CX-JYD03-10T | 100KN | 3000W | 145KGS | 300*380*820mm |
| CX-JYD03-12T | 120KN | 3600W | 150KGS | 300*380*820mm |
|
CX-JYD03-20T (380V,50HZ) |
200KN | 5500W | 380KGS | 400*540*1060mm |

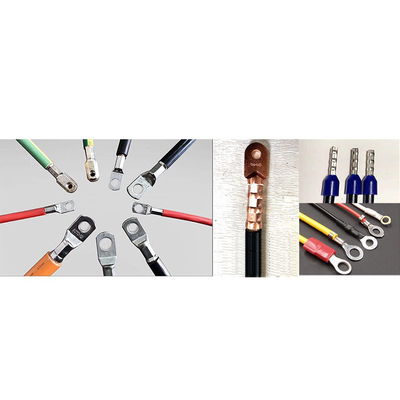

APPLICATION
