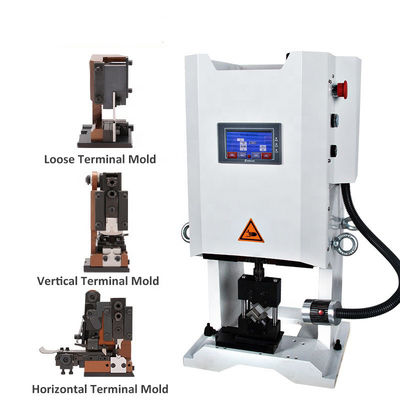

Cable Lug Terminal Crimping Crimp Machine Semi Auto Servo Wire Ring Terminal Tool
Product Details:
| Place of Origin: | China(mainland) |
| Brand Name: | CHENXIN |
| Model Number: | CX-JYD03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | EX-WORK, FOB, CIF, C&F |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Function: | Crimping | Air Supply: | 0.5-0.7Mpa |
|---|---|---|---|
| Power Supply: | AC220V/110V 50/60HZ | Warranty: | 1 Year. 24hr Online Technical Guidanceyear. 24hr Online Technical Guidance |
| Crimping Force: | 2T / 20KN | Motor Power: | 750W |
| Stroke: | 30/40mm | ||
| High Light: | Cable Lug Terminal Crimping Crimp Machine,Servo Wire Ring Terminal Crimper Tool,Semi Auto Terminal Crimping Crimp Machine |
||
Product Description
Semi Automatic Wire Terminal Crimping Machine
Features:
- This machine is mainly aimed at the pressing of the large square pipe terminal.
- The industrial control chip is combined with high precision servo drive, so that the machine can run steadily.
- PLC control system, store the program for different size wire ,directly use by choosing the program number , no need manual adjustment.
- PLC Touch Screen With Easy Operate Program Speed: The speed of pressing is 1 second.
- Easy Mold Replacement Four Square/Quadrilateral Universal Crimping Applicator Hexagon Universal Crimping Applicator.
Technical Paramenters
|
Model
|
Motor Power
|
Stroke
|
Crimping Force
|
Gross Weight
|
Packing Size
|
Power Supply
|
|
CX-JYD03-2T
|
750W
|
30/40mm
|
2T / 20KN
|
38KGS
|
280*240*600mm
|
220V,50HZ/60HZ
|
|
CX-JYD03-3T
|
1500W
|
30/40mm
|
3T / 30KN
|
62KGS
|
350*320*640mm
|
220V,50HZ/60HZ
|
|
CX-JYD03-4T
|
1500W
|
30/40mm
|
4T / 40KN
|
65KGS
|
350*320*640mm
|
220V,50HZ/60HZ
|
|
CX-JYD03-6T
|
1500W
|
30/40mm
|
6T / 60KN
|
132KGS
|
400*380*740mm
|
220V,50HZ/60HZ
|
|
CX-JYD03-8T
|
2300W
|
30/40mm
|
8T / 80KN
|
135KGS
|
400*380*740mm
|
380V,50HZ
|
|
CX-JYD03-10T
|
2300W
|
30/40mm
|
10T / 100KN
|
138KGS
|
400*380*740mm
|
380V,50HZ
|
|
CX-JYD03-15T
|
3600W
|
40mm
|
15T / 150KN
|
350KGS
|
520*540*980mm
|
380V,50HZ
|
|
CX-JYD03-20T
|
5500W
|
40mm
|
20T / 200KN
|
360KGS
|
520*540*980mm
|
380V,50HZ
|
|
CX-JYD03-30T
|
7500W
|
40mm
|
30T / 300KN
|
360KGS
|
520*540*1030mm
|
380V,50HZ
|
|
CX-JYD03-40T
|
7500W
|
40mm
|
40T / 400KN
|
360KGS
|
520*540*1030mm
|
380V,50HZ
|
|
CX-JYD03-50T
|
7500W
|
40mm
|
50T / 500KN
|
360KGS
|
520*540*1030mm
|
380V,50HZ
|
