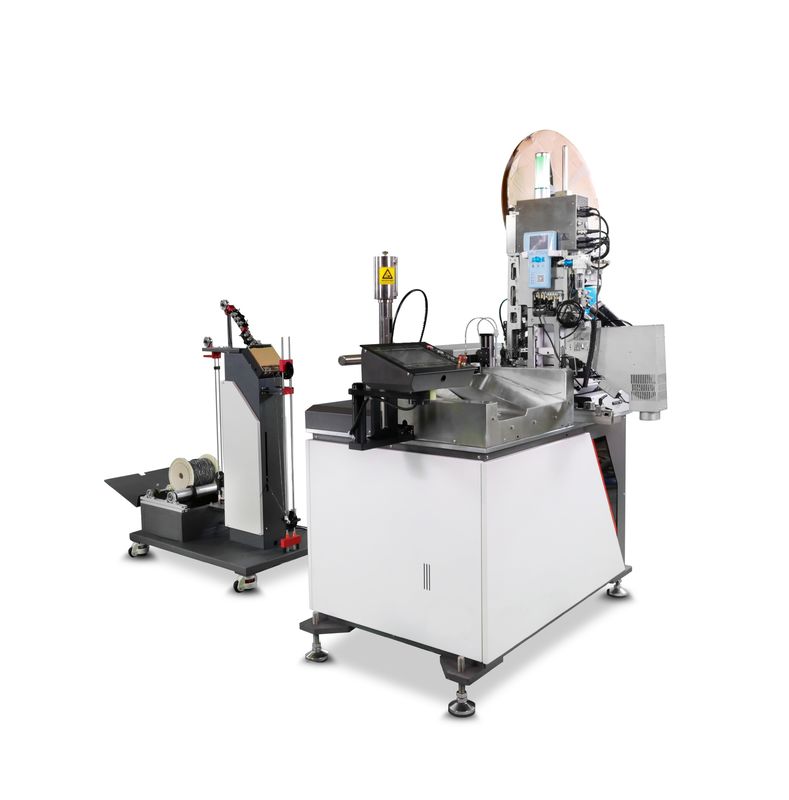

2T Automatic Wire Tinning Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO90001 |
| Model Number: | CX-02HR-C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/Set |
|---|---|
| Price: | Fob Shenzhen |
| Packaging Details: | wooden case |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 150 sets per month |
|
Detail Information |
|||
| Cutting Length: | 15-9,999mm | Adaptable Wire: | Standard Model: AWG#32-AWG#18 (2 Wheels Feeding Wire) Customized Model: AWG#14-AWG#18 (4 Wheels Feeding Wire) |
|---|---|---|---|
| Adaptable Terminal: | 0.8-3.96mm Horizontal, Straight Mold Is Changeable, Adapt To Flag Figure Mold(partially Closed Continuous Plug-in Terminals And Single-grain Terminals Can Be Customized) | Capacity: | 1,600pcs-1,800pcs/hr (with Function Twisting, Tinning, Waterproof Asssembly) 2,500pcs-2,800pcs/hr(turn Off Function Twisting, Tinning, Waterproof Asssembly) |
| Stripping Length: | A Side 0-6mm; B Side 0-20mm | Cutting Accuracy: | ±(0.2%*L+1)mm |
| Air Pressure: | 0.5-0.7Mpa(5-7kg/m³) | Twisting Length: | 3-20mm(according To The OD Of Wire) |
| Tinning Length: | 1-20mm | ||
| Highlight: | 2T Automatic Wire Tinning Machine,0.7Mpa automatic wire tinning machine,OEM crimping twisting tin machine |
||
Product Description
CX-02HR-C Full Automatic Cable Wire Cutting Stripping Tinning Waterproof Assembly Machine
Equipment Function:
| Name of the machine | CX-02HR-C Full Automatic Cable Wire Cutting Stripping Tinning Waterproof Assembly Machine |
| Function |
A side cutting, stripping, waterproof assembly; B side stripping, twisting, tinning |
| Control Method | HMI+Microcomputer |
| Take-up system | computer automatic pre-feeding device, suitable for coiled wire +reel wire |
| Detection Device | With terminal or not, No wires alarm, air pressure detection |
| Terminal pressure detection system | Optional installation (applicable for domestic and imported systems) |
| Defective product handling | Sorting(can be equipped with cutting device) |
| Crimping force | 2T Super mute terminal crimping machine |
Technical Parameter
| Voltage | 50/60Hz 220V single-phase |
| Cutting Length | 15mm-9999mm |
| Applicable cable | standard model: AWG#32-AWG#18 (2 wheels feeding wire) Customized model: AWG#14-AWG#18 (4 wheels feeding wire) |
| Applicable terminal | 0.8-3.96mm horizontal, straight mold is changeable, adapt to flag figure mold(partially closed continuous plug-in terminals and single-grain terminals can be customized) |
| Capacity |
1,600pcs-1,800pcs/hr (with function twisting, tinning, waterproof assembly) 2,500pcs-2,800pcs/hr(turn off function twisting, tinning, waterproof assembly) |
| Stripping Length | A side 0-6mm; B side 0-20mm |
| Twisting length | 3-20mm(according to the OD of wire) |
| Tinning Length | 1-20mm |
| Cutting accuracy | ±(0.2%*L+1)mm |
| Air Pressure | 0.5-0.7Mpa(5-7kg/m³) |
| Dimension | 1,210mm*770mm*1,370mm; take-up: 920mm*560mm*1,300mm |
| Weight | about 450kg±15kg; take-up: 80kg |
Device Configuration
| Motor | 6 sets of Japan Mitsubishi servo motors + 4 sets step motors |
| Pneumatic Components | 9 sets of SMC electromagnetic valve + 9 sets of SMC Cylinder |
| Screw | 11 sets of Taiwan Hiwin |
| Sensor | Japanese Panasonic |
| Belt | American Gates Brand |
| Bearing | Japnese NSK |
| Blades | t is made of imported alloy steel, processed by slow-moving wire, precision ground, and durable |
