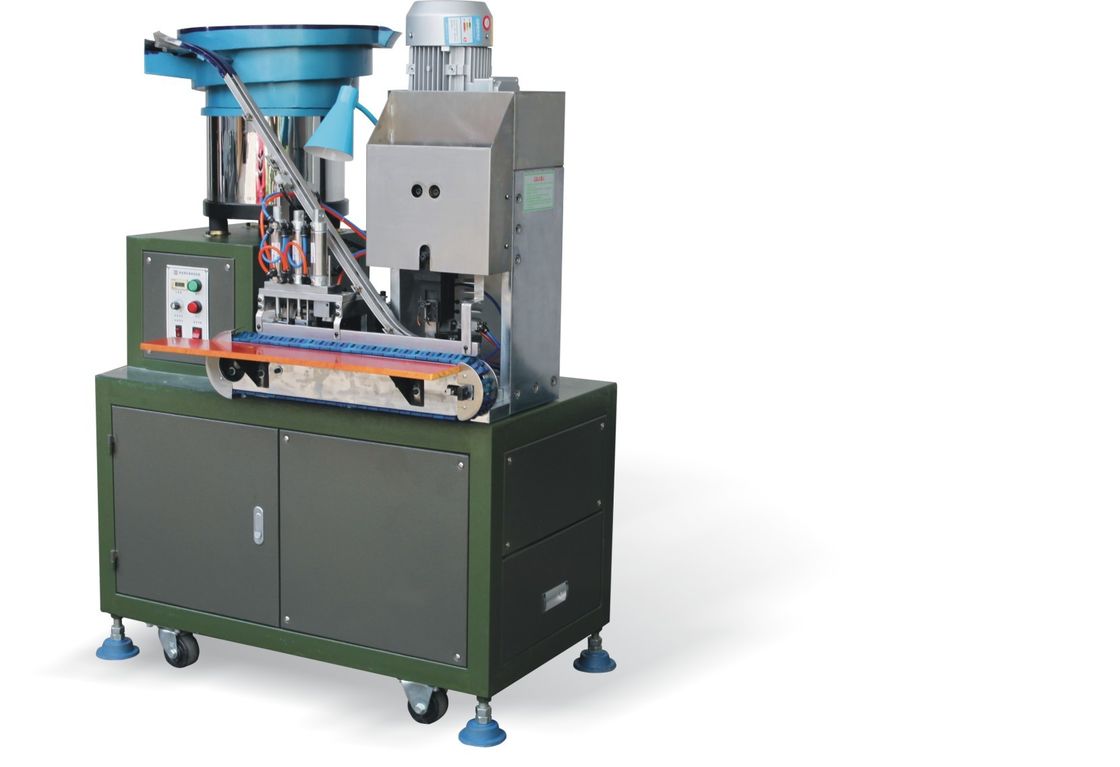

4T Power Cord Crimping Machine

4T Power Cord Crimping Machine

Product Details:

Place of Origin: CHINA
Brand Name: CX
Certification: ISO9001
Model Number: CX-SA02

Payment & Shipping Terms:

Minimum Order Quantity: 1/SETS
Packaging Details: woodencase
Delivery Time: 10-15 working days
Payment Terms: T/T
Supply Ability: 150/SET PER MONTH
Get Best Price Contact Now

Detail Information

Capacity: 2,300pcs-2,600pcs/hr Punching Force: 4T
Pass Yield: ≥99.8% Jacket Stripping Length: 20mm-60mm
Cores Stripping Length: 3mm-12mm Air Pressure: 0.5-0.8MPa
Power: 1.5kw
High Light:

4T Power Cord Crimping Machines


2600pcs/hr Power Cord Crimping Machine


0.5MPa Plug Crimping Machine

Product Description

CX-SA02 Electrical Plug 2 Parallel Blade Pin Plug Making Crimping Machine​


1, The 2 pin plug crimping machine with function jacket stripping, cores stripping, cutting, plug insert feeding, and crimping finished one time.
2, HMI debugging, the whole machine is controlled by PLC, frequency converter, and frequency conversion motor, with stable performance, simple operation, safety, and high efficiency.
3, The same type of plugs can share the machine, and different types of plugs cannot share the machine. Please contact us, we can recommend the right model for you, just send us the plug picture and parameters. We can arrange a free machine test.
4, The worldwide plug can be customized.
Applicable cable: H03VVH2-F, H05VVH2-F.
Technical Parameter:
Plug Crimping Machine
Model CX-SA02 Crimping speed 2,500-2,800pcs/h
Punching force 4T Voltage AC220V/50Hz
Jacket stripping length 20mm-60mm Cores stripping length 3mm-12mm
Air pressure 0.5-0.8MPa Weight 350KG
Power 1.6kw
Dimension 1130mm*830mm*1650mm

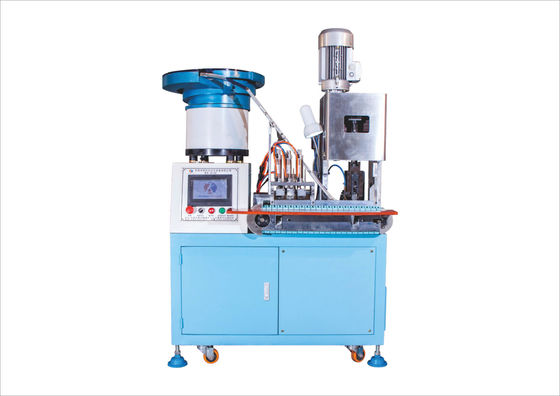

4T Power Cord Crimping Machine 0

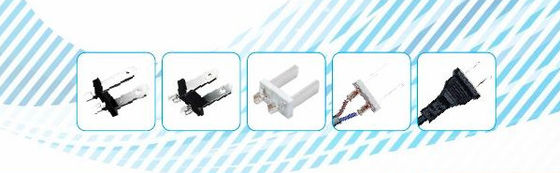

Finished product

Process: operator inset the cable+jacket stripping+cores stripping+cutting at same length+plug insert feeding+plug insert crimping finished in one step.

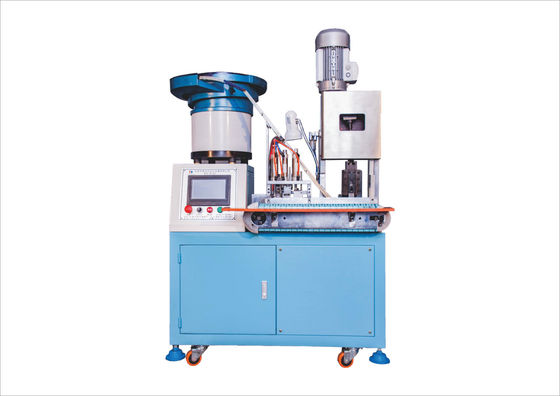

4T Power Cord Crimping Machine 1
