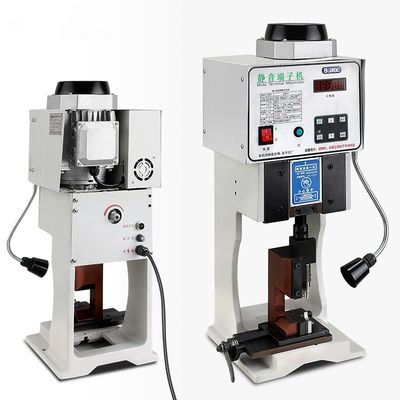

1.5T Mute Semi Automatic Crimping Machine General Mold
Product Details:
Place of Origin: | CHINA |
Brand Name: | CHENXIN |
Certification: | ISO90001 |
Model Number: | CX-001 |
Payment & Shipping Terms:
Minimum Order Quantity: | 2/Set |
---|---|
Price: | FOB SHENZHEN |
Packaging Details: | wooden case/boxes |
Delivery Time: | 10-15 working days |
Payment Terms: | T/T |
Supply Ability: | 500 sets per month |
Detail Information |
|||
Voltage: | 220V 50Hz | Stroke: | 30 |
---|---|---|---|
Punching Force: | 1.5T | Motor Power: | 0.55kw/h |
Average Power: | 0.35kw/h | Dimension(mm): | 215*230*600 |
Weight(kg): | 38 | ||
High Light: | 1.5T Semi Automatic Crimping Machine,Semi Automatic Crimping Machine 0.35kw/h,220V General mold Crimping Machine |
Product Description

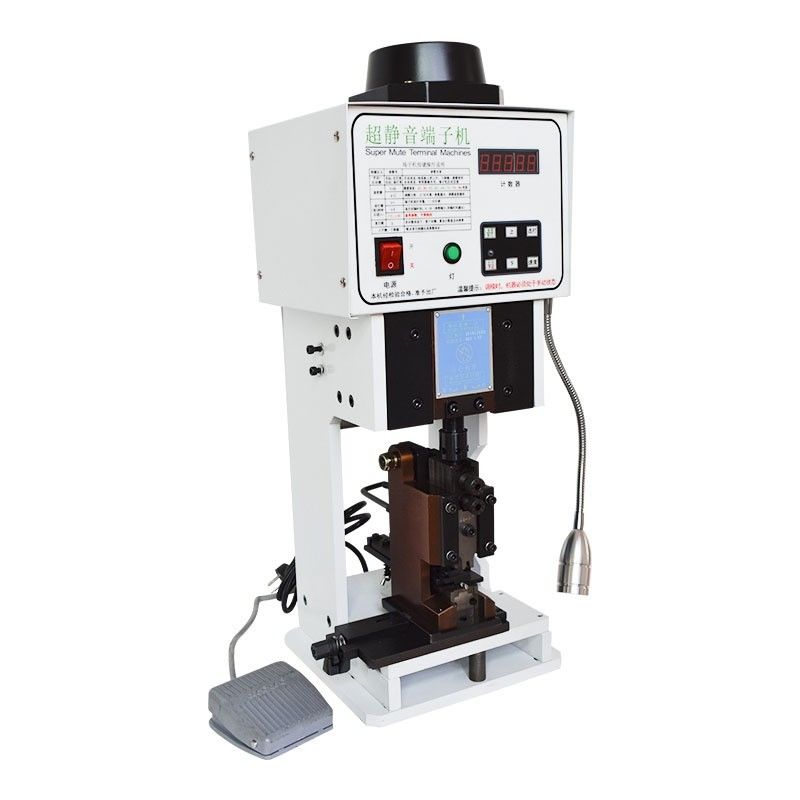

CX-001 Semi-Automatic 1.5T Super Mute OPT Mold Terminal Crimping Machine
Description
Super mute terminal crimping machines are widely used, suitable for terminal processing in electronics, electrical appliances, toys, automobiles, motorcycles, and other industries.
Technical parameter
Model | CX-001 | CX-002 | CX-003 | CX-004 | CX-005 |
Voltage | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz |
Stroke | 30 | 30 | 30 | 30 | 30 |
Punching force | 1,500 | 2,000 | 3,000 | 4,000 | 6,000 |
Motor power | 0.55kw/h | 0.75kw/h | 1.11kw/h | 1.5kw/h | 1.8kw/h |
Average power | 0.35kw/h | 0.45kw/h | 0.65kw/h | 0.85kw/h | 0.85kw/h |
Dimension(mm) | 215*230*600 | 215*245*640 | 240*270*700 | 260*305*740 | 340*320*800 |
Weight(kg) | 38 | 47 | 66 | 95 | 110 |
Features:
1, Quiet fast
2, Energy saving
3, General mold
4, One-piece casting
5, Wide range of applications: suitable for DC terminal, AC terminal, single-terminal, continuous terminals.
6, High-end frequency conversion technology: advanced frequency conversion technology, quieter and more energy-saving.
7, Changing molds is simpler: automatic crimping of terminals at specified intervals
8, Speed and strength adjustment: the program can set the crimping speed and strength
9, Automatic continuous crimping function
10, On-screen counting function
Microcomputer control, continuous crimping and speed adjustment can be realized by pressing buttons.

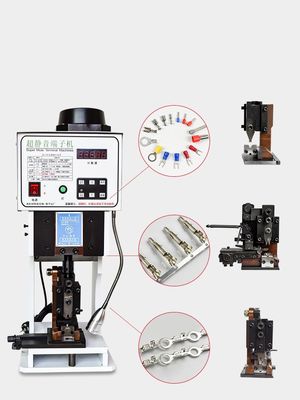

Cassette molds, high-precision molds, detachable and replaceable horizontal molds, straight molds, and single terminal molds.
Metal hose LED light, the light is soft and not dazzling. The position of the metal hose can be adjusted at will.
The machine body is made of cast iron in one piece. The surface of the paint is smooth and flat.

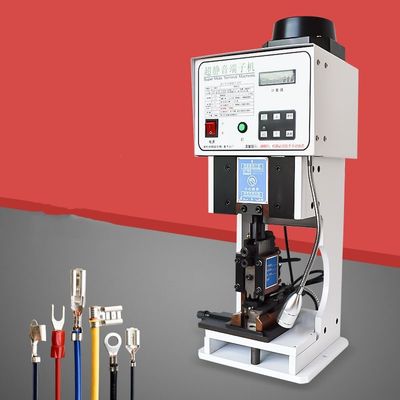

One machine can crimp a variety of terminals, suitable for terminal processing in electronics, electrical appliances, toys, automobiles, motorcycles, and other industries. Suitable for DC terminals, AC terminals, single-grain terminals, continuous terminals, computer terminals, etc.
