110kg Adjustable Pneumatic Wire Stripping Machine 1000mm*620mm*350mm
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO90001 |
| Model Number: | CX-610 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2/Set |
|---|---|
| Price: | Fob Shenzhen |
| Packaging Details: | boxes |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Stroke: | 200mm | Stripping Wire φ: | 50mm |
|---|---|---|---|
| Voltage: | AC 220v 50/60hz | Air Pressure: | 3-7kg/cm² |
| Cylinder φ: | 100φ | Weight: | 110kg |
| Dimension: | 1,000mm*620mm*350mm | ||
| High Light: | 110kg Pneumatic Wire Stripping Machine,Pneumatic Wire Stripping Machine 1000mm,Pneumatic Square Wire Stripping Machine |
||
Product Description

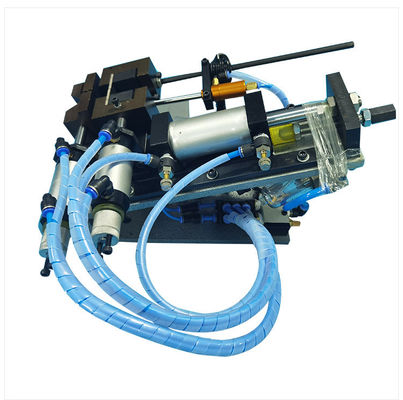

CX-610 120 Square Wire Pneumatic Electronic Appliance Cable Wire Stripping Machine
Suitable for the processing of the large wire diameter and long wire, such as 35 square, 50 square, 70 square, 95 square, 120 square wire
Features:
1 The oblique back design is ergonomic.
2 Double-acting cylinder, no spring break.
3 Exquisite knife molds, large and small machine types, and knife and molds are universal.
4 Unique sliding seat, light and agile, easy to work.
5 Adjustable structure, adjusted according to the thickness of the wire.
6 Adaptable wire: AC, DC power cord, computer wire, electronic wire, multi-core wire, special wire.
7 Stable sliding seat design, unique sliding seat design ensures more stable stroke and more precise cutting and stripping.
8 The foot pedal is easy to operate. Improved the traditional computer wire stripping method with feet and hands, and evolved into a front clamp back method, which saves energy and improves efficiency.
Technical Parameter:
| Model | CX-610 | CX-600 |
| Stroke | 200mm | 200mm |
| Stripping Wire φ | Max.50mm | Max.50mm |
| Voltage | 110v/220V 60Hz | 110v/220V 60Hz |
| Air pressure | 3-7kg/cm² | 3-7kg/cm² |
| Cylinder φ | 100φ | 100φ |
| Weight | 110kg | 150kg |
| Dimension(mm) | 1,000*620*350 | 1750*620*470 |
Selected high-quality blades, using high-quality wear-resistant blades, durable and long-lasting sharpness
Air pressure regulating valve, cut off the gas, and open the gas regulating valve.
Function: When adjusting the machine, the air pressure can be turned off to prevent hand injury and play a protective role.
