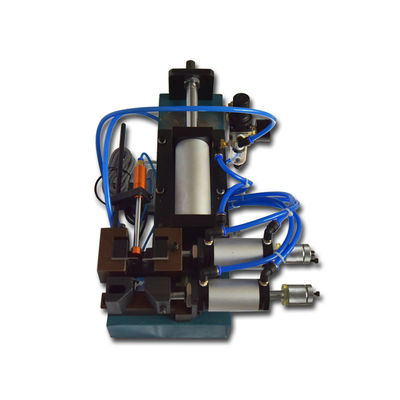

CX-310 Pneumatic Wire Stripping Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO90001 |
| Model Number: | CX-310 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2/Set |
|---|---|
| Price: | Fob Shenzhen |
| Packaging Details: | boxes |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Stroke: | 1-150mm | Stripping Wire φ: | 0.5-15mm |
|---|---|---|---|
| Voltage: | AC 220v 50/60hz | Air Pressure: | 3-6kg/cm² |
| Cylinder φ: | 50φ | Weight: | 38kg |
| Dimension: | 400mm*200mm*280mm | ||
| High Light: | CX310 Pneumatic Wire Stripping Machine,15mm Pneumatic Wire Stripping Machine,6kg/cm2 Pneumatic Wire Stripping Tool |
||
Product Description
CX-310 Semi-Auto Pneumatic High-Temperature Braided Cable Wire Heat Stripping Machine
Features:
1 The oblique back design is ergonomic.
2 Double-acting cylinder, no spring break.
3 Exquisite knife molds, large and small machine types, and knife and molds are universal.
4 Unique sliding seat, light and agile, easy to work.
5 Adjustable structure, adjusted according to the thickness of the wire.
6 Adaptable wire: AC, DC power cord, computer wire, electronic wire, multi-core wire, special wire.
7 Stable sliding seat design, unique sliding seat design ensures more stable stroke and more precise cutting and stripping.
8 The foot pedal is easy to operate. Improved the traditional computer wire stripping method with feet and hands, and evolved into a front clamp back method, which saves energy and improves efficiency.
Technical Parameter:
| Model | CX-310 |
| Stroke | 1-150mm |
| Stripping Wire φ | 0.5-15mm |
| Voltage | 110v/220V 60Hz/20Hz |
| Air pressure | 3-6kg/cm² |
| Cylinder φ | 50φ |
| Weight | 38kg |
| Dimension(mm) | 400mm*200mm*280mm |
Selected high-quality blades, using high-quality wear-resistant blades, durable and long-lasting sharpness
Air pressure regulating valve, cut off the gas, and open the gas regulating valve.
Function: When adjusting the machine, the air pressure can be turned off to prevent hand injury and play a protective role.
