Multiple Poles Cores Connector Soldering Machine 600W 0.3Mpa-0.6Mpa
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO9001 |
| Model Number: | CX-VS01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/Set |
|---|---|
| Price: | Fob Shenzhen |
| Packaging Details: | wooden case |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 150 sets per month |
|
Detail Information |
|||
| Soldering Speed: | 600-700pcs/hr | Soldering Method: | Lead Free |
|---|---|---|---|
| Temperature Mode: | Thermostat Soldering Station | Power: | 600W |
| Air Pressure: | 0.3-0.6Mpa | Dimension: | 800mm*128mm*1380mm |
| Weight: | 250kg | Warranty: | 1 Year. 24hr Online Technical Guidance |
| High Light: | Connector Soldering Machine 600W,0.3Mpa Connector Soldering Machine,0.6Mpa automatic wire soldering machine |
||
Product Description

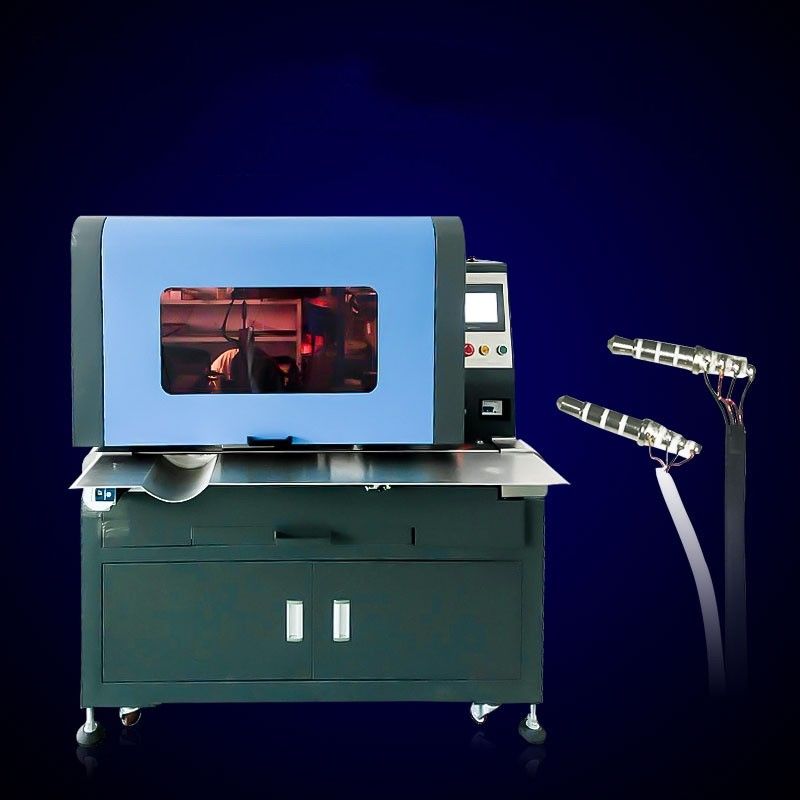

CX-VS01 Automatic 3.5 Audio Multiple Poles Cores Connector Soldering Machine
Features:
This equipment is a dedicated soldering machine for 3.5 audio plugs. With a perfect soldering process and excellent quality, it saves labor to a great extent and solves the problem of the cumbersome soldering process and harsh environment.
The machine is easy to understand and stable in operation. Ordinary employees can operate the machine.
One machine is equivalent to 3-5 soldering technicians. The incoming materials have no quality problems, and the yield rate can reach 98%.
Application:
Support audio pin welding of 2 poles, 3 poles, and 4 poles.
Enameled wire, sheathed wire. 2 cores, 3 cores, 4 cores, 5 cores, 6 cores can be welded.
Strong compatibility, suitable for manufacturers with large and small round wires, flat wires, double parallel wires, and a wide variety of wires.
Technical parameter
| Model and name of the machine | CX-VS01 automatic audio connector soldering machine |
| Voltage &Frequency | AC 220V 50Hz |
| Soldering speed | 600-700pcs/hr |
| Soldering method | lead free |
| Temperature mode | thermostat soldering station |
| Power | 600W |
| Air pressure | 0.3-0.6Mpa |
| Dimension | 800mm*128mm*1380mm |
| Weight | 250kg |
Finished product:
