Sheath Inserting Wire Terminal Crimping Machine 30mm 40mm Stroke
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO9001 |
| Model Number: | CX-ZK07 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/Set |
|---|---|
| Price: | FOB Shenzhen |
| Packaging Details: | wooden case/boxes |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 150 sets per month |
|
Detail Information |
|||
| Applicable Wire: | AWG#16-AWG#30 | Cutting Length: | 80mm-3,000mm(＞800mm Need Cable Feeder ) |
|---|---|---|---|
| Stripping Length: | A Side Max.10mm; B Side Max.14mm | Capacity: | 2,000-3,000pcs/hr(depending On The Size And Material Of Wire) |
| Cutting Accuracy: | ＜0.1mm+0.005*cutting L | Stroke Of Crimping Applicator: | 30mm(40mm Optional) |
| Crimping Force: | 2T(3T Optional) | Detection Device: | Wire And Terminal Detection; Compressed Air Detection (CFM Optional) |
| Warranty: | 1 Year. 24hr Online Technical Guidance | Power: | 2.75kw |
| High Light: | 30mm Stroke Wire Terminal Crimping Machine,40mm Stroke Wire Terminal Crimping Machine,Sheath Inserting Terminal Crimping Machine |
||
Product Description

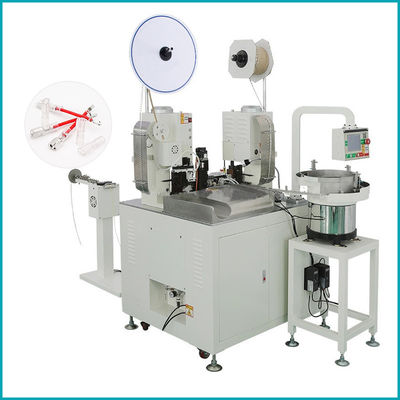

CX-ZK07 Fully Automatic Double Head Terminal Crimping Sheath Inserting Machine
| Model of machine | CX-ZK07 |
| Applicable wire | AWG#16-AWG#30 |
| Cutting length | 80mm-3,000mm(＞800mm need cable feeder ) |
| Stripping length | A side Max.10mm; B side Max.14mm |
| Capacity | 2,000-3,000pcs/hr |
| Cutting accuracy | ＜0.1mm+0.005*cutting L |
| Detection device | wire and terminal detection; compressed air detection (CFM optional) |
| Air pressure | 4-6kgf |
| Stroke of crimping applicator | 30mm(40mm optional) |
| Crimping force | 2T(3T optional) |
| Power | 2.75kw |
| Voltage&frequency | 220V 50Hz |
| Dimension(L*W*H) | 1,400mm*970mm*1,980mm |
| Weight | 490kg |
