5KN Power Cord Tester Vertical Single Column Digital Tensile Strength Test Machine

Product Description

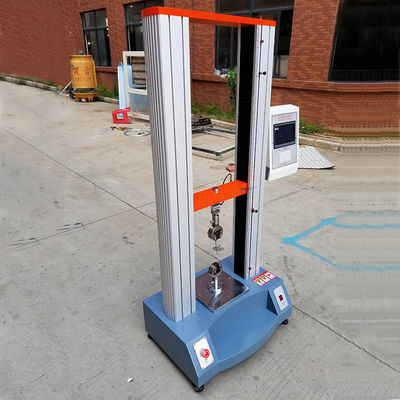

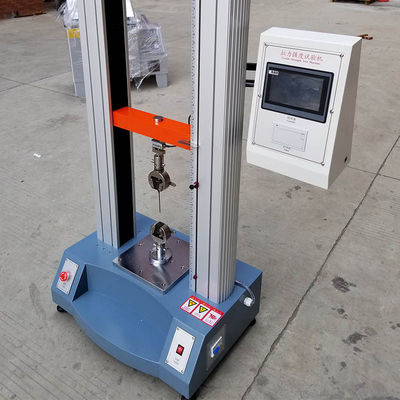

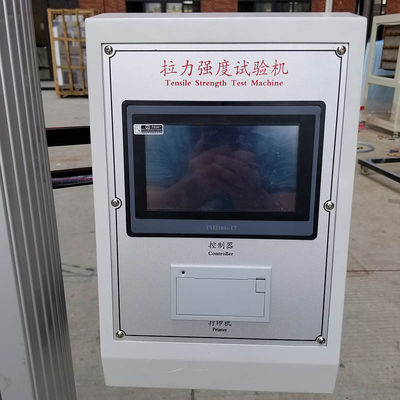

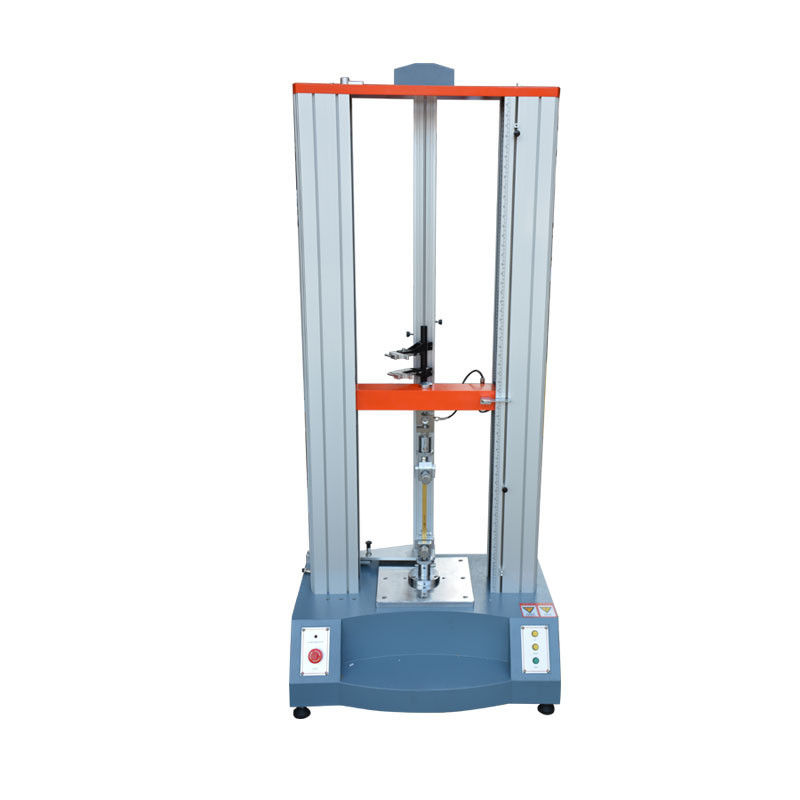

CX-JY01 Vertical Single-Column Digital Tensile Strength Test Machine​

Application scope and function

This machine is used in the mechanical performance test of composite film, film, FPC, adhesive tape, rubber, resin, plastic, metal rod, metal pipe, metal sheet and metal profile, and composite material. It is also suitable for the tensile test of finished products when matched with fixtures., Compression, peeling, shearing, bending (folding), metal welding strength, riveting strength test. Multiple data can be printed, and graphical output comparison can be made according to different data, with high control precision and easy operation;

This machine is mainly suitable for testing the mechanical properties of metals such as tensile, compression, bending, etc. It can also achieve constant stress, constant strain, creep, relaxation, axial, radial, and other closed-loop tests. The tensile strength, yield strength, elongation, constant elongation stress (arbitrary percentage), constant stress elongation (arbitrary percentage), elastic modulus, elongation at break can be automatically calculated according to standards such as GB, JIS, ASTM, DIN, etc., Peel strength (including 90, 180-degree peel), bending elastic modulus, tensile strength, adhesive strength, shear strength, and other parameters.

The main parameters:

1. Test force: 5N, 10N, 20N, 30N, 50N, 100N, 200N, 300N, 500N, 1KN, 2KN, 3KN, 5KN

2. Accuracy level: 0.25 level/0.5 level

3. Test force measurement range: 0.2%~100%FS (full scale)

4. Test force indication error: within ±0.25% of the indicated value/within ±0.5% of the indicated value

5. Test force resolution: the test force is /350,000, the whole process is not divided, and the resolution of the whole process is unchanged

6. Large deformation measurement range: 10~800mm

7. Large deformation indication error: within ±0.5% of indicated value

8. Large deformation measurement resolution: 0.008mm

9. Displacement indication error: within ±0.2% of indicated value

10. Displacement resolution: 0.015μm
