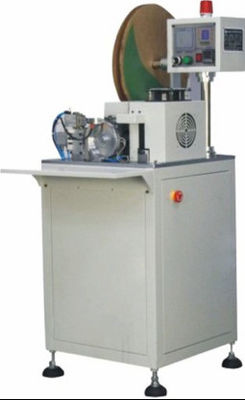

Electrical Insulation Cable Shrink Tube Assortment Wrap Assembly Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Chenxin |
| Certification: | ISO9001 |
| Model Number: | CX-210A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/Set |
|---|---|
| Price: | FOB shenzhen |
| Packaging Details: | woodencase |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 150 set per month |
|
Detail Information |
|||
| Capacity: | 1,000-3,000pcs/hr | Positioning Accuracy: | ±0.5mm |
|---|---|---|---|
| OD Of Heat-shrinkable Tube: | 1.0-6.0mm | Length Of Heat-shrinkable Tube: | 5-30mm |
| Air Pressure: | 0.6-0.8Mpa | Voltage Frequency: | AC 220V 50Hz |
| High Light: | Shrink Tube Assortment Wrap Assembly Machine,Electrical Insulation Cable Heat Shrinking Machine |
||
Product Description
Automatic Shrink Tube Assortment Wrap Electrical Insulation Cable Tubing Wrap Tubes Assembly Machine
Features:
The product specification switching is convenient and fast, the machine operation is simple.
The design is exquisite, and the versatility is strong. Electronic wire, power cord.
Products wheat-shrinkable cable sleeves can realize machine operation.
One machine saves at least 1-2 people.
Functions:
Manually put on the whole disc of heat-shrinkable tubes, automatic feed heat-shrinkable tubes, manually insert and automatically wear and dry heat shrinkable tubes.
Technical parameter:
| Model of machine | CX-210A |
| Capacity | 1,000-3,000pcs/hr |
| Positioning accuracy | ±0.5mm |
| OD of Heat-shrinkable tube | 1.0-6.0mm |
| Length of Heat-shrinkable tube | 5-30mm |
| Air pressure | 0.6-0.8Mpa |
| Voltage frequency | AC 220V 50Hz |
| Dimension | L 600mm* W600mm* H1300mm |
| Weight | 150kg |

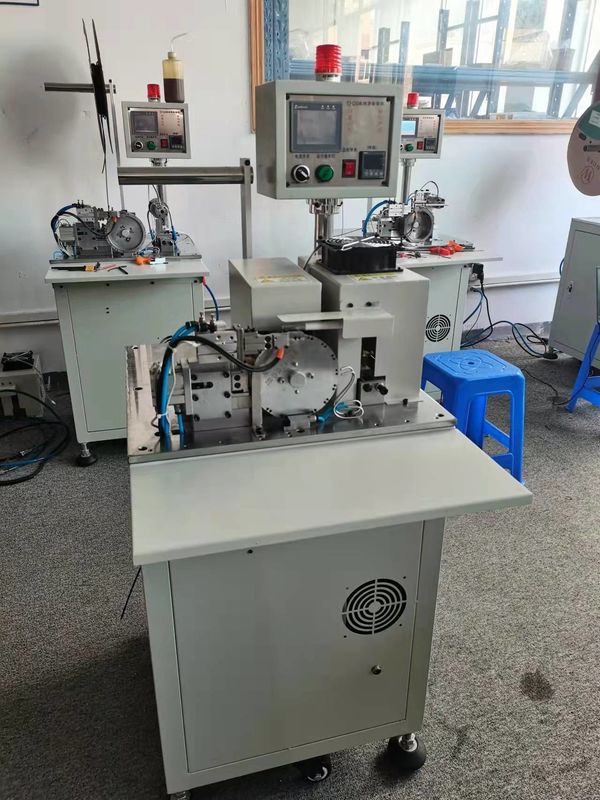

Finished Product:
