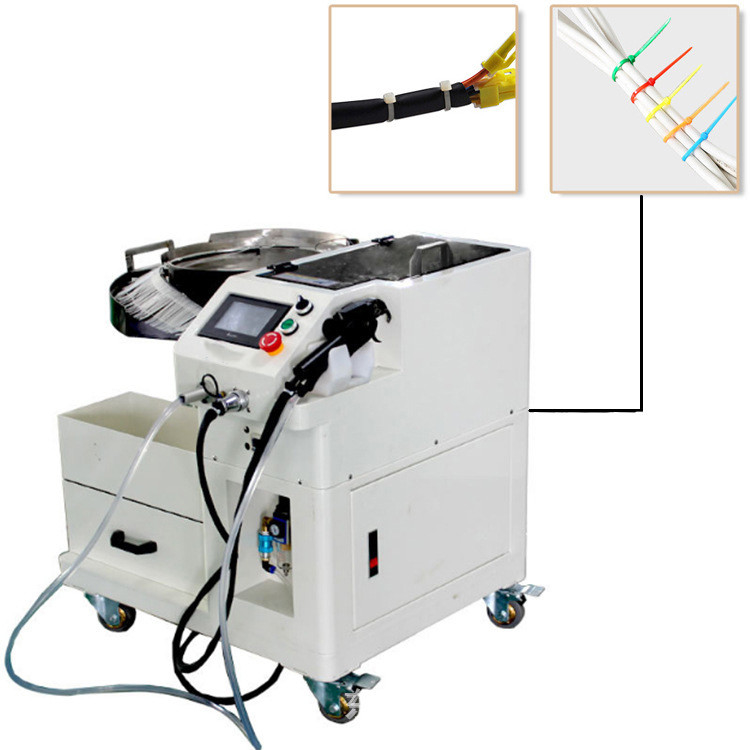

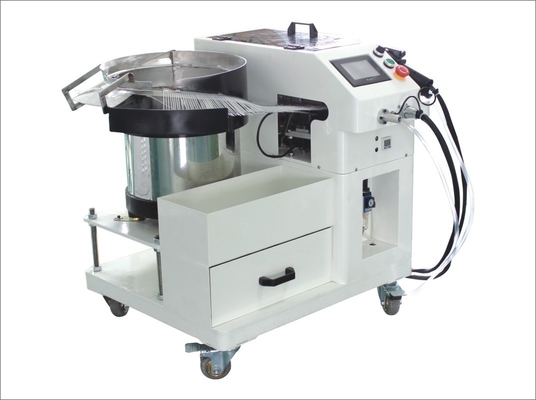

Automatic Feeding PLC Self Locking Nylon Cable Tying Machine
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | CHENXIN |
| Certification: | iso90001 |
| Model Number: | CX-SC06 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/Set |
|---|---|
| Price: | FOB, EX-WORK, CF, CIF |
| Packaging Details: | wooden case/box |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 150/set per month |
|
Detail Information |
|||
| Power Supply: | Machine：AC220V 50/60HZ; Gun：DC 24V | Power: | 1000W |
|---|---|---|---|
| Action Cycle: | 0.8S-1.2 Sec/pcs | Minimum Diameter: | φ 2.0mm |
| Maximum Diameter: | φ 22mm | Display Mode: | Touch Screen |
| Compressed Air: | 0.5Mpa | Specification Of Tie: | 2.5 X 100mm (customized According To The Cable Tie) |
| High Light: | PLC Nylon Cable Tying Machine,Automatic Feeding PLC Cable Tying Machine,Self Locking Wire Tying Machine |
||
Product Description
CX-SC06 Automatic Feeding Handheld Self Locking Nylon Cable Tying PLC Wire Tie Machines
Features:
1. The machine has the functions of automatic feeding, perforation, binding, tensioning, cutting and waste discharge;
2. The hand-held gun head is light, the whole handle is light and easy to hold, the body is small and easy to move (with casters);

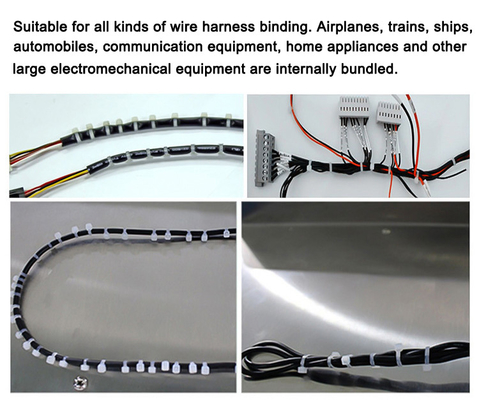

3. It is applicable to the internal harness binding of household appliances and automobiles, as well as the internal harness binding during the assembly of aircraft, trains, ships, automobiles, household appliances and other large electromechanical equipment, as well as logistics packaging, pipe joint fixing, food packaging, etc.
Technical parameter:
| Mode | CX-SC06 Hand Held Automatic Nylon Tie Binding Machine |
| Power Supply | machine:AC220V 50/60HZ; gun:DC 24V |
| Power | 1000W |
| Body size | machine:L700xW520xH600mm |
| Body weight | machine:70KG; gun:0.7KG |
| Action cycle | 0.8S-1.2 Sec/pcs |
| Minimum diameter | φ 2.0mm |
| Maximum diameter | φ 22mm |
| Display mode | Touch screen |
| compressed air | 0.5Mpa |
| Specification of tie | 2.5 x 100mm (customized according to the cable tie) |
