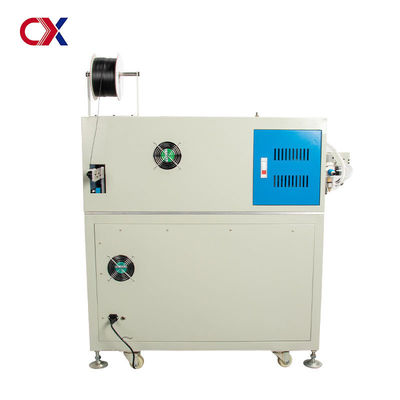

Cable Bobbin Electric Wire Spooling Machine Cuting Wind Rewind Tying 0.7 S/Time
Product Details:
| Place of Origin: | China(mainland) |
| Brand Name: | CX |
| Model Number: | CX-45/45GD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden case/ carton |
| Delivery Time: | 5-7working day |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 500/set per month |
|
Detail Information |
|||
| Usage: | Cut, Wind And Tie | Wire Diameter: | 1 - 10 Mm |
|---|---|---|---|
| Maximum Winding Length: | 80 Meters | Finished Product Inner Diameter: | 50 - 200 Mm |
| Finished Product Outer Diameter: | < 320 Mm | Tying Diameter: | 18 - 45 Mm |
| Winding Speed: | 1 - 10 Circles/s | Tying Speed: | 0.7 S/time |
| Power Supply: | 110, 220 V (50 - 60 Hz) | Power: | 2500 W |
| High Light: | Wind Tying Wire Spooling Machine,2500W Wire Spooling Machine,0.7 S/Time Automatic Coil Winding Machine |
||
Product Description
Length Measuring Electric Wire Spooling Cable Bobbin Wind Rewind Tie Tying Machine Cut, Wind and Tie 0.7 S/time 230 Kg
Strong Poits:
1.LCD Display
Touch screen with fast production setup.
2.Count Meter Device
Equipped with high-accuracy count meter device,and the length can be freely set by operator.
3.Customized Winding Tooling
The winding tooling is customized in accordance to client's requirements.
4.Tying Part
Fast tying speed of 0.7s/time.
Techincal Parameter
|
Model |
CX-45/45GD |
|
Wire diameter |
1 - 10 mm |
|
Maximum winding length |
80 meters |
|
Finished product inner diameter |
50 - 200 mm |
|
Finished product outer diameter |
< 320 mm |
|
Tying diameter |
18 - 45 mm |
|
Winding speed |
1 - 10 circles/s |
|
Tying speed |
0.7 s/time |
|
Power supply |
110, 220 V (50 - 60 Hz) |
|
Power |
2500 W |
| Weight |
230 kg |
|
Dimension (L * W * H) |
1000 * 450 * 800 mm |
