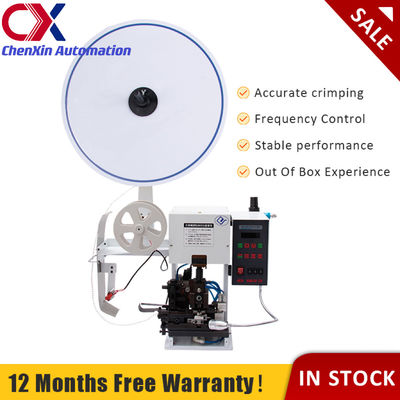

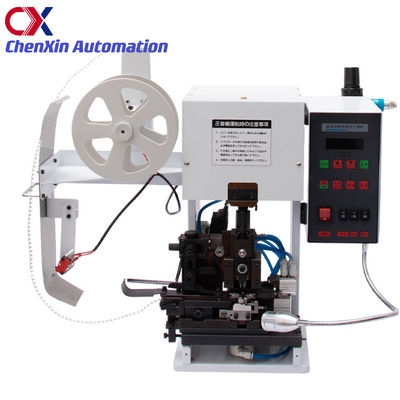

CX-60A Automatic Wire Stripping And Terminal Crimping Machine 1.5T 2T 3T
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO |
| Model Number: | CX-60A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | EXW, FOB, CIF, C&F |
| Packaging Details: | Wooden Package |
| Delivery Time: | 7-10 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Usage: | Stripping, Crimping | Stripping Length: | 1-10mm |
|---|---|---|---|
| Air Pressure: | 0.3-0.4Mpa | Voltage & Frequency: | 220V/110V/50HZ/60HZ |
| Stroke: | 20mm | Machine Rate: | 750W |
| High Light: | 10mm Stripping Terminal Crimping Machine,3T Terminal Crimping Machine,ISO Stripping And Crimping Machine |
||
Product Description
CX-60A Automatic Wire Stripping And And Terminal Crimping Machine 1.5T 2T 3T
PRODUCT DESCRIPTION
· Wire stripping and crimping all-in-one machine
· High stability, ultra-quiet working environment.
· Designed with automatic skinning department, inching and automatic return function.
· Stripping part adopts famous brand pneumatic components, can rapidly complete the stripping operation efficient and stable.
| Model | CX-60A-1 | CX-60A-2 | CX-60A-3 |
| Applicable wire diameter | AWG36-AWG20 | AWG36-AWG16 | AWG26-AWG16 |
| Stripping length | 1-10mm | 1-10mm | 1-10mm |
| Stroke | 20mm | 20mm | 30mm |
| Crimping force | 1.5T | 2T | 3T |
| Motor rate | 400W | 750W | 1100W |
| Machine Rate | 750W | 1500W | 1500W |
| Air pressure | 0.3-0.4mpa | 0.3-0.4mpa | 0.3-0.4mpa |
| Power | 220V/110V/50HZ/60HZ | 220V/110V/50HZ/60HZ | 220V/110V/50HZ/60HZ |
| N.W | 80kg | 80kg | 120kg |
| Dimension | 530*400*830mm | 530*400*830mm | 500*450*1000mm |
Why Choose Us ?
Chenxin Automation Equipment(Guangzhou) Co., Ltd. is a company engaged in the manufacture of automation equipment for the processing of power cord AC plugs and wire harness ends processing for more than 10 years.
The company's main products are a fully automatic plug crimping machine, fully automatic wire tinning machine series, fully automatic wire winding machine series, semi-auto terminal crimping machine, automatic cutting machine, automatic coaxial wire stripping machine. Provide safer, labor-saving, efficient, and high-quality equipment for the power cord production, wire harness end processing industry.
We can provide a series of solutions in the wire and cable field to help promote the improvement of our customers' business. we not only provide equipment and solutions but also focus on offering high-quality services such as free layout design of power cord factory, overseas installation guidance, operation training, and so on.
