IDC Flat / Ribbon Cable Connector Crimping Machine Semi Automatic CX-5310
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | CX |
| Model Number: | CX-5310 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | EXW, FOB, CIF, C&F |
| Packaging Details: | Export Carton Case |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Usage: | Crimping | Pin Number Of Crimping: | 4-30p One Fixture, 30-50p One Fixture, 64p One Fixture |
|---|---|---|---|
| Air Supply: | 6-8kg | Single Package Size: | 30X25X45 Cm |
| Single Gross Weight: | 16kg | Voltage: | 110/220V/50/60HZ |
| High Light: | IDC Flat Cable Connector Crimping Machine,Ribbon Cable Connector Crimping Machine,220V Semi Automatic Crimping Machine |
||
Product Description

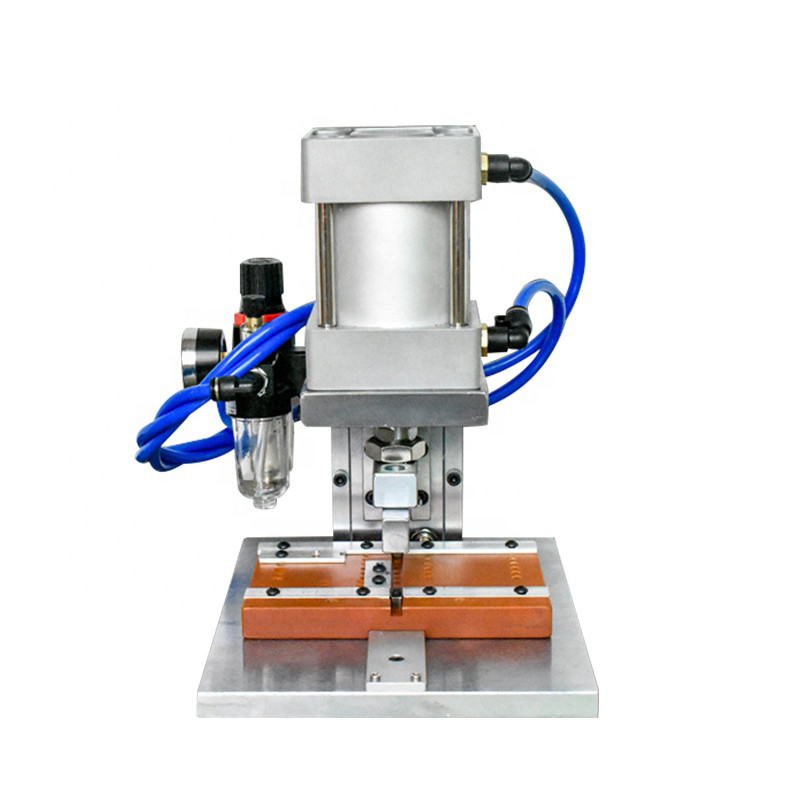

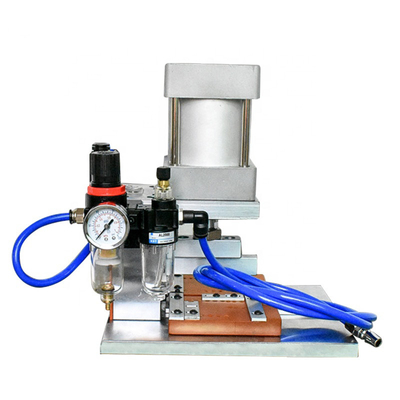

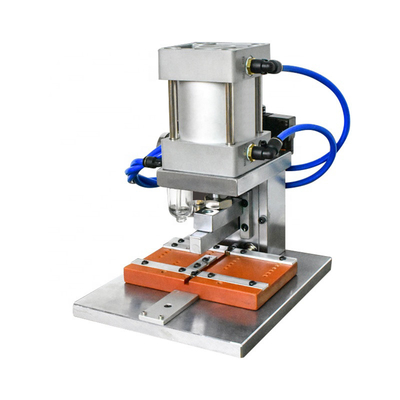

CX-5310 Semi-Automatic Ribbon Cable Connector Crimping Machine IDC Flat Cable Connector Crimping Machine
· Can be crimped 300-600 times per hour according to the product type.
· Low air consumption, low failure rate, easy maintenance.
· Automatic crimping after the product is pushed in.

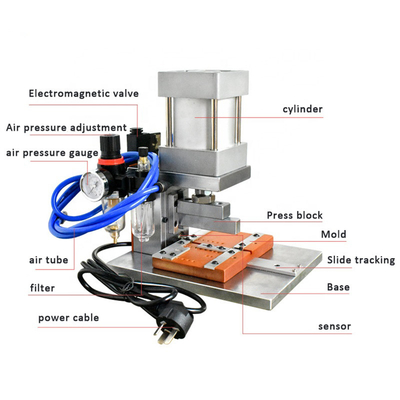

Features:
Automatic stamping reset Will crimp automatically after pushing the product in and the cvlinder willreset automatically after it is finished.The operation is simple and easy to learn.
The electromagnetic valve
Adjust the direction,flow, speed and other parameters of the medium.
Filter
Filter water vapor and impurities during use,extend equipment life.
High Quality cylinder
Air convert thermal energy into mechanical energy by expansion in the cyliner,the gas increase the pressure by Piston compression.
Technical Parameter
| Model | CX-5310 |
| Pin number of crimping | 4-30p one fixture, 30-50p one fixture, 64p one fixture |
| Air supply | 6-8kg |
| Voltage | 110/220V/50/60HZ |
| Machine size | 250*200*330mm |
| Machine weight | 14KG |
