Hexagon Crimping Mute Terminal Automatic Applicator For Large Square Cable
Product Details:
| Place of Origin: | China(Mainland) |
| Brand Name: | CX |
| Model Number: | CX-XLY1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | FOB/ EX-WORK, CIF, C&F |
| Packaging Details: | Export wooden case |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Usage: | Crimping, Terminal Crimping | Crimping Force: | 40KN |
|---|---|---|---|
| Stroke: | 240mm / 350mm | Crimping Width: | 8.0mm(other Size Can Be Customized) |
| Crimping Capacity: | 2.5-35mm2 | Electrical Connection: | AC220V/50/60HZ |
| Warranty: | 1 Year. 24hr Online Technical Guidance | Weight: | 80kg |
| High Light: | Hexagon Crimping Automatic Applicator,Crimping Machine Automatic Applicator,Mute Terminal Automatic Applicator |
||
Product Description

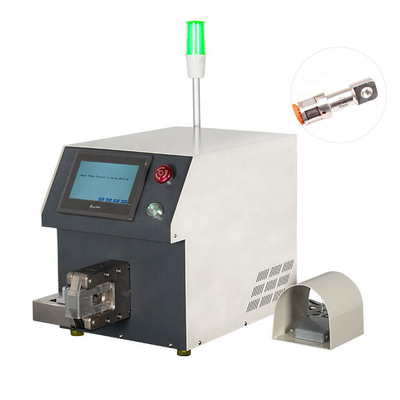

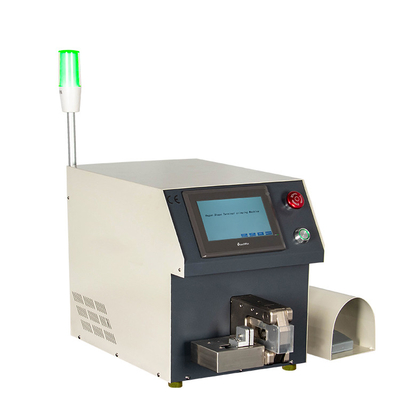

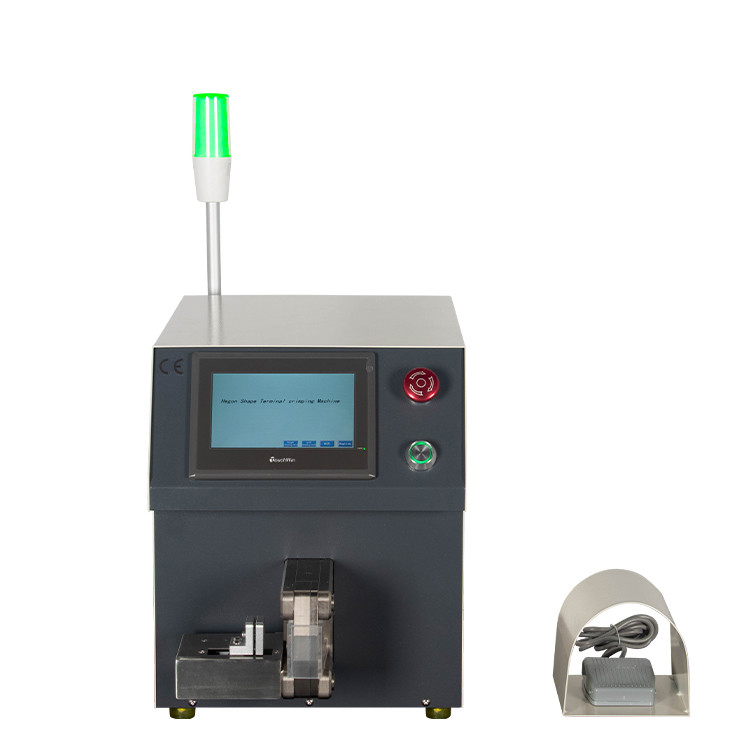

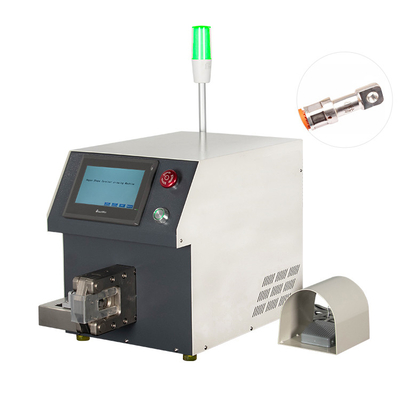

New Energy Hexagon Moulding Automatic Cable Lug Crimping Tools Machine
Features:

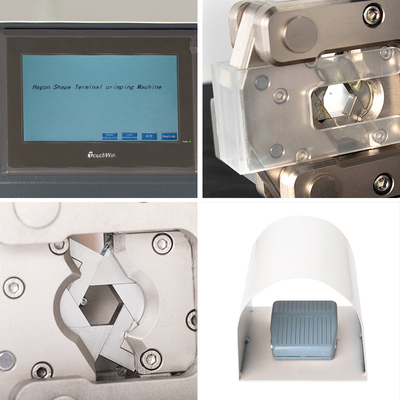

User-friendly Program Pedal Design: Simple programming with intuitive touch screen.
Pedal Design: Crimping more easy and accuracy.
Six Square Crimping Molds: Flexible crimping for different sizes of terminal without changing molds .
Protection Cover: Protect the finger during crimping, more safe.
Description:

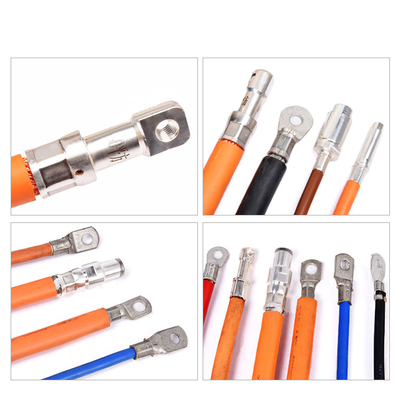

- Mainly designed for large tubular terminal, closed cold-pressed terminals.
- Widely used in new energy cable, charging cable and charging gun wire harness processing field.
- Industrial control chip with high precision servo drive make sure the machine running very stable.
- 2.5-35mm2 closed tubular terminal crimping no need to change die set, crimping diameter can be adjusted in seconds.
Technical Parameter
| Model | CX-XLY1 |
| Crimping Force | 40KN |
| Stroke | 240mm |
| Crimping Width | 8.0mm(other size can be customized) |
| Crimping Capacity | 2.5-35mm2 |
| Power | 220V/110V/50HZ/60HZ |
| Weight | 80kgs |
| Dimension | 560*370*300mm |
