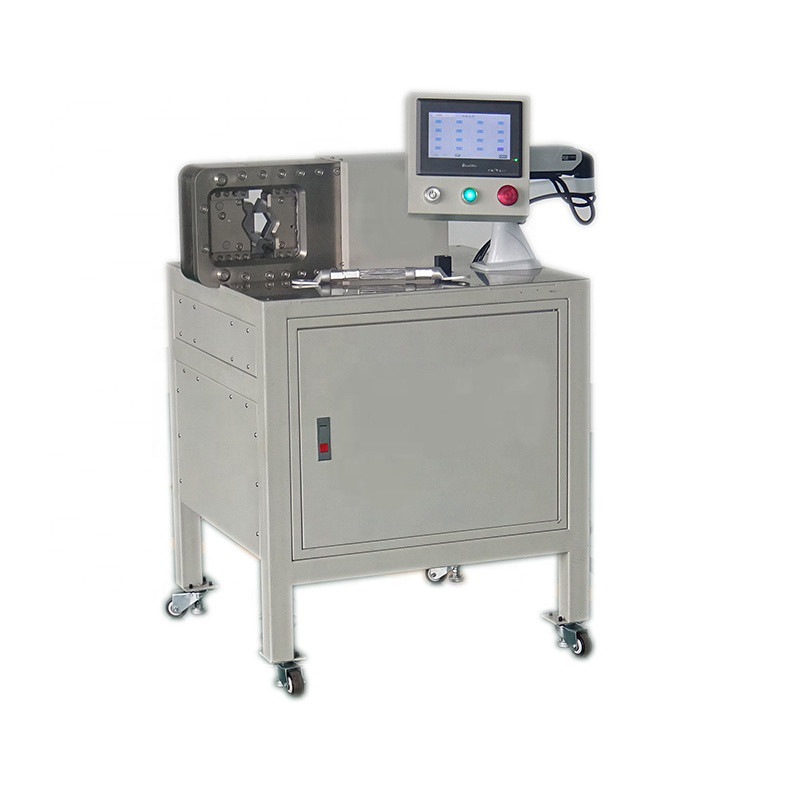

Semi Automatic Hexagon Terminal Crimping Machine 10-240sqmm
Product Details:
| Place of Origin: | China(Mainland) |
| Brand Name: | CX |
| Model Number: | CX-6060 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | FOB/ EX-WORK, CIF, C&F |
| Packaging Details: | Export wooden case |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||

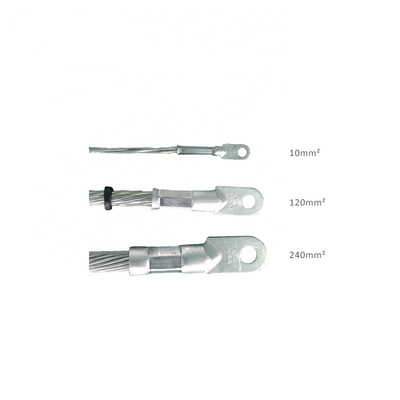

| Usage: | Crimping, Terminal Crimping | Wire Range: | 10-240mm2(can Be Specially Made To 400mm2) |
|---|---|---|---|
| Crimping Force: | 500KN | Diameter. Max: | 47mm |
| Crimping Width: | 30mm(can Be Special Ordered) | Electrical Connection: | AC220V/50/60HZ |
| Warranty: | 1 Year. 24hr Online Technical Guidance | Motor Power: | 3600w |
| High Light: | 10sqmm Terminal Crimping Machine,240sqmm Terminal Crimping Machine,Hexagonal Shape Terminal Crimp Tool |
||
Product Description
10-240sqmm Semi Automatic Hexagon Terminal Crimping Machine Hexagonal Shape Terminal Crimp Tool
Features:
- User-friendly Program: Simple programming with intuitive touch screen.

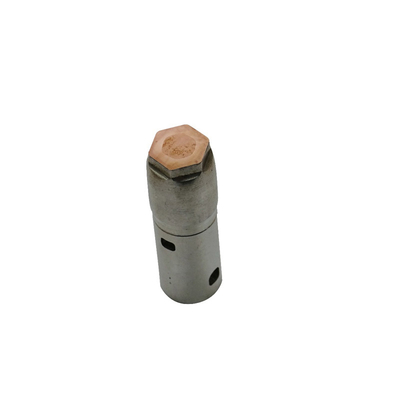

- Six Square Crimping Molds:Flexible crimping for different sizes of terminal without changing molds.
- Pedal Design: Crimping more easy and accuracy.
Techinicl Parameter
| Model | CX-6060 |
| Wire range | 10-240mm2(can be specially made to 400mm2) |
| Crimping force | 500KN |
| Diameter. Max | 47mm |
| Crimping width | 30mm(can be special ordered) |
| Weight | 325kg |
| Dimension | 740*650*1030mm |
| Power | 220V 50hz |
| Motor | 3600w |
