Flat Surface Paging Labeling Machine , Automatic Wire Labeling Machine
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | CHENXIN |
| Model Number: | CX-L02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/Set |
|---|---|
| Price: | FOB, EXW, CIF, C&F |
| Packaging Details: | woodencase |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Usage: | Label | Wire Diameter Range: | 1-10mm (Other Sizes Can Be Customized) |
|---|---|---|---|
| Label Length: | 20-100mm | Label Width: | 5-50mm |
| Capacity: | 1200pcs/hour | Labeling Shape: | Label Fold |
| Applicable Label: | Various Types Of Stickers | Labeling Accuracy: | ±0.5mm |
| Weight: | 60kg | Warranty: | 1 Year. 24hr Online Technical Guidance |
| High Light: | 100mm Length Labeling Machine,Flat Surface Paging Labeling Machine,1200pcs/hour Wire Labeling Machine |
||
Product Description

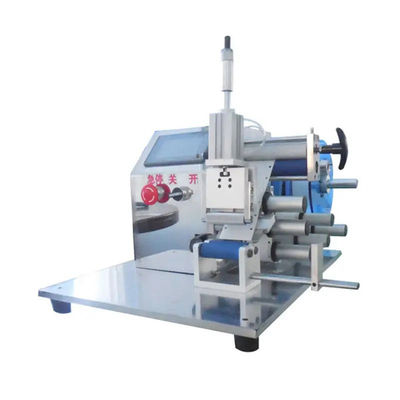

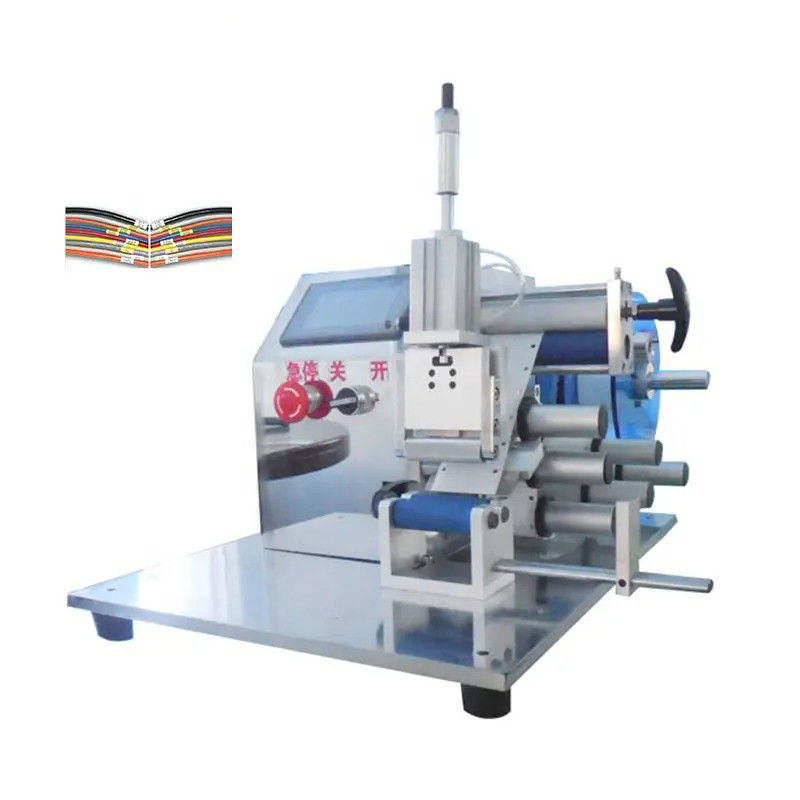

Automatic Flat Surface Paging Labeling Machine Wire Labeling Machine
Description
The sensor detects the passing of the product, and then sends the signal back to the label control system. After the final signal is processed by the PLC, the label is sent out at an appropriate time, and the label is sucked on the label suction plate, and then the entire advanced electronic control system automatically completes the pasting of each label.
Features
- Separate labeling or use in connection with assembly line, occupying a small space.
- It has a wide range of applications, which can be applied to various labels of different specifications, and can be used for folding and labeling of different label lengths and widths.
- High stability, adopting German advanced photoelectric switch and Mitsubishi PLC to form an advanced electronic control system.
- The label is accurate, and a high-quality standard vacuum generator is used to stabilize the suction pressure of the label.
- It can adapt to intelligent control, automatic photoelectric tracking, which can prevent wrong label and missing label.

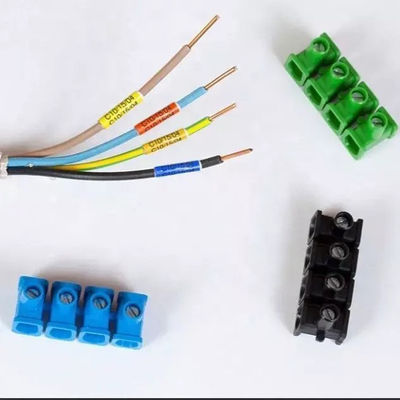

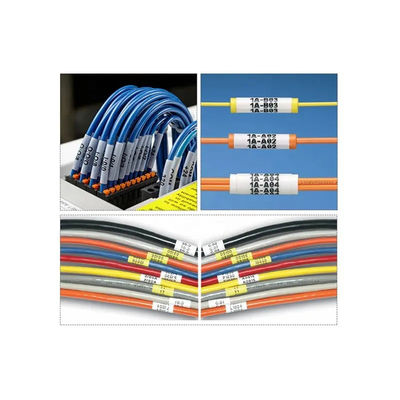

- Widely used in the production of wires, wire harnesses, power cords, USB cables, cables and other wires. It can be adapted to a variety of rectangular labels, I-shaped labels, and can be customized for special labels.
Technical Parameter
| Model | CX-L02 |
| Wire diameter range | 1-10mm (Other sizes can be customized) |
| Label Length | 20-100mm |
| Label Width | 5-50mm |
| Capacity | 1200pcs/hour |
| Labeling shape | Label fold |
| Applicable label | Various types of stickers |
| Labeling accuracy | ±0.5mm |
| Working pressure | 0.4~0.7 Mpa |
| Power supply | 110V/220V |
| Dimension | 650*600*670mm |
| Weight |
