Wire Stripping Semi Automatic Terminal Crimping Machine With Vibration Plate For Insulated Tube
Product Details:
| Place of Origin: | China(mainland) |
| Brand Name: | CHENXIN |
| Model Number: | CX-ZDP01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | EX-WORK, FOB, CIF, C&F |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Function: | Strip , Crimp | Wire Size: | 0.5-2.5mm2 (other Size Can Be Customize) |
|---|---|---|---|
| Stripping Length: | 6-10mm (other Size Can Be Customize) | Terminal Size: | 6/8/10mm (other Size Can Be Customize) |
| Air Supply: | 0.5-0.7Mpa | Power Supply: | 110/220V 50/60HZ |
| Warranty: | 1 Year. 24hr Online Technical Guidanceyear. 24hr Online Technical Guidance | Usage: | Crimping |
| High Light: | Wire Stripping Terminal Crimping Machine,60HZ Terminal Crimping Machine,10mm Terminal Crimping Machine |
||
Product Description

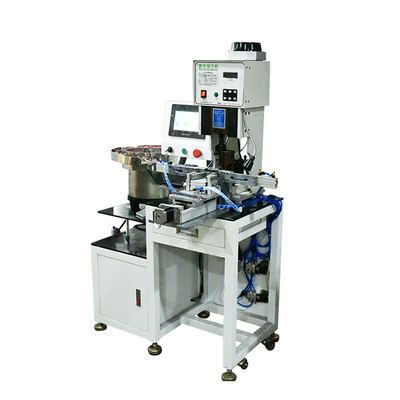

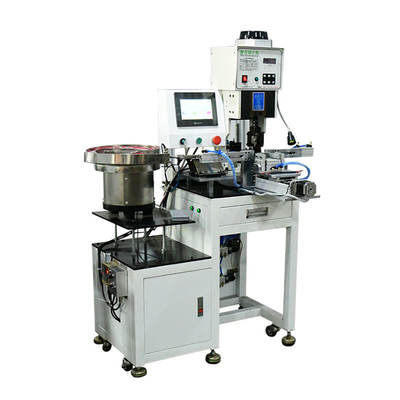

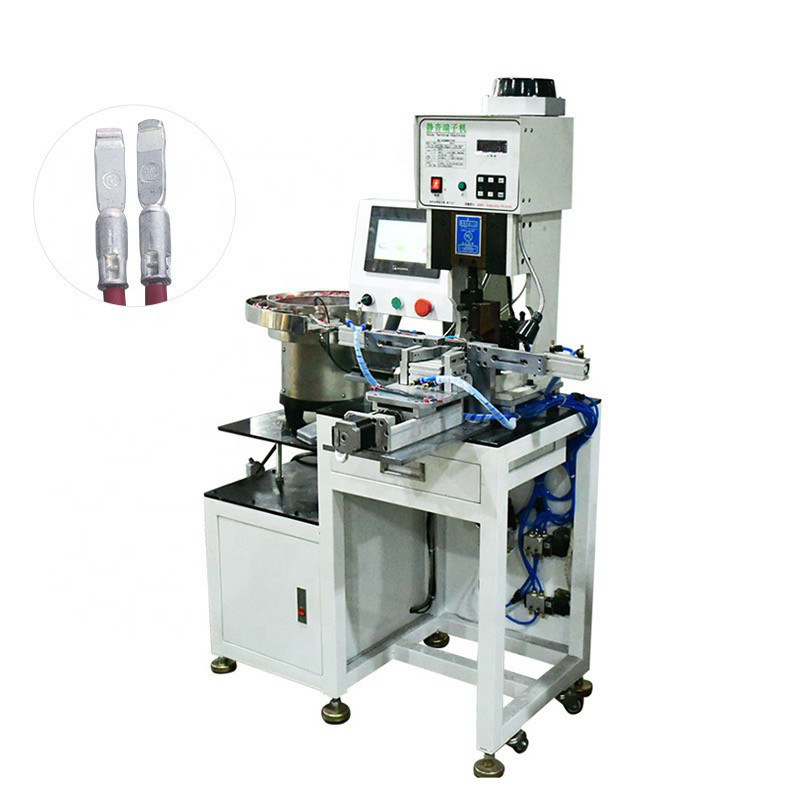

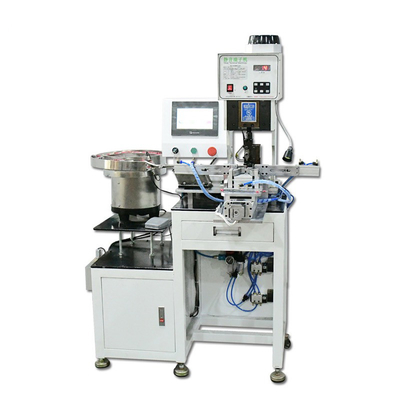

Vibration Plate Feeding Insulated Tube Wire Stripping Terminal Crimping Machine
Features
- Friendly Touch Screen: Convenient viewing operation and easy adjusting.
- Fiber Inspection: Vibrating plate feeding easy and fast.Automatic shutdown when full of terminal.
- Stripping and Crimping all in one step: Stripping diameter automatic adjust;Crimping Height automatic adjust.
Technical Parameter
| Model | CX-ZDP01 |
| Function | Strip , Crimp |
| Wire Size | 0.5-2.5mm2 (other size can be customize) |
| Stripping Length | 6-10mm (other size can be customize) |
| Terminal Size | 6/8/10mm (other size can be customize) |
| Air Supply | 0.5-0.7Mpa |
| Power Supply | 110/220V 50/60HZ |
| Machine Size | 450*1400*900mm |
