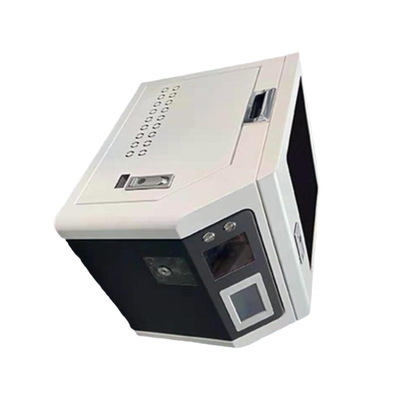

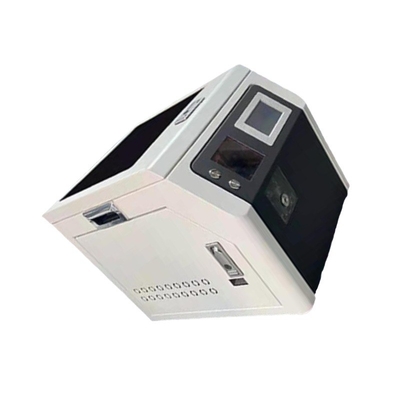

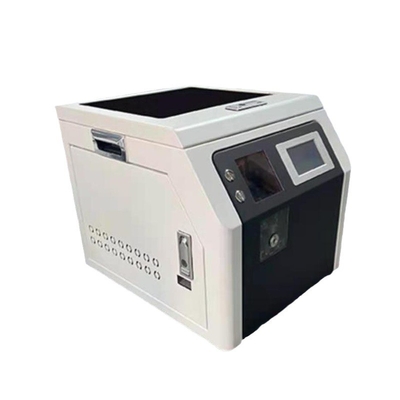

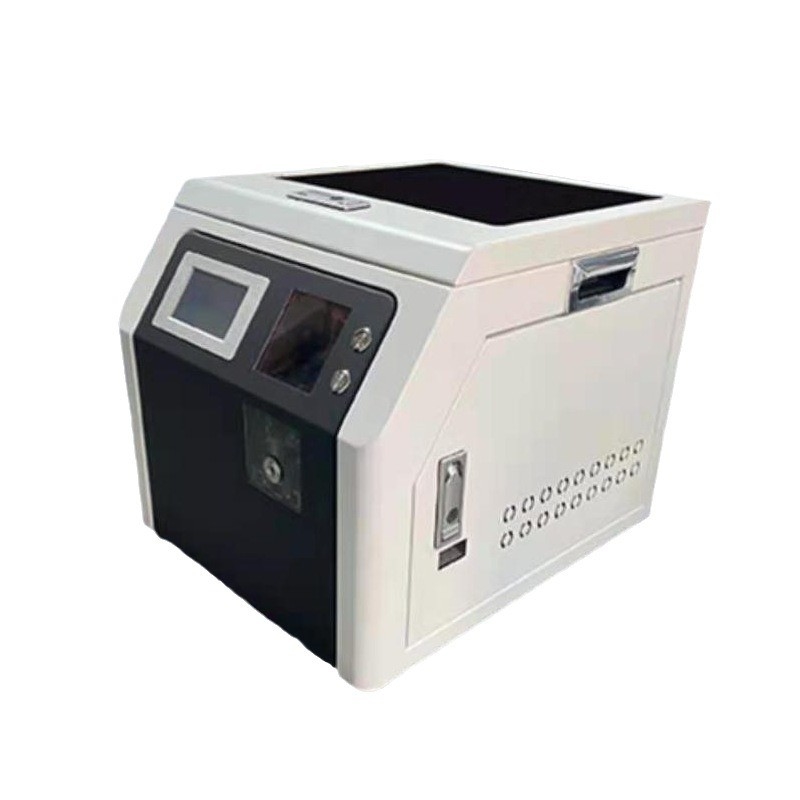

Smart Terminal Crimping Machine with Sensor Stripping (Cold-Pressed/Aviation Use)
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO9001 |
| Model Number: | CX-0525 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 sets |
|---|---|
| Price: | FOB Shenzhen |
| Packaging Details: | wooden case/box |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Usage: | Crimping | Wire Size: | 0.5-4.0mm2 (max. Crimping Length 12mm) |
|---|---|---|---|
| Min. Stripping Length For Jacket: | 40mm | Production Capacity: | 2.5s /wire (1000-1300pcs/hour) |
| Storage: | 100 Crimping Data | Warranty: | 1 Year. 24hr Online Technical Guidance |
| Highlight: | Aviation Use Terminal Crimping Machine,Smart Terminal Crimping Machine,Sensor Stripping Terminal Crimping Machine |
||
Product Description
Smart Terminal Crimping Machine with Sensor Stripping (Cold-Pressed/Aviation Use)
Description
- Pneumatic and electric combination, closed design overall.
- The machine has strong flexibility and safe operation; mechanical structure compact.
- Automatic trigger pneumatic, fast and convenient, high production efficiency.
Technical Parameter
| Model | CX-0525 | CX-0525-1 |
| Function | stripping, twisting, terminal feeding, crimping | |
| Wire Size | 0.5-4.0mm2 (max. Crimping length 12mm) | 2.5-6sqmm |
| Min. Stripping Length for Jacket | 40mm | 40mm |
| Production Capacity | 3.5s /wire (1000-1300pcs/hour) | 3.5s /wire (1000-1300pcs/hour) |
| Storage | 100 crimping data | 100 crimping data |
| Working Temperature | 0~50℃ | 0~50℃ |
| Rotary blades | 2pc , Imported tungsten steel | 2pc , Imported tungsten steel |
| Air Supply | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Power Source | AC220V/110V/50/60HZ 400W | AC220V/110V/50/60HZ 400W |
| Weight | 68KG | 68kg |
| Dimension | L450mm×W505mm×H425mm | L450mm×W505mm×H425mm |
