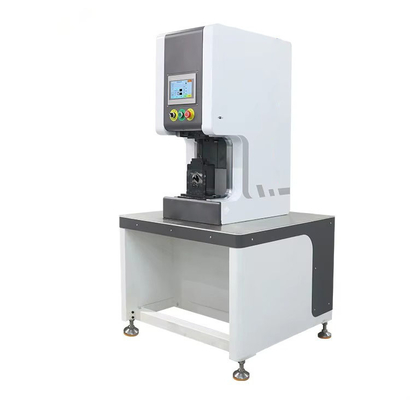

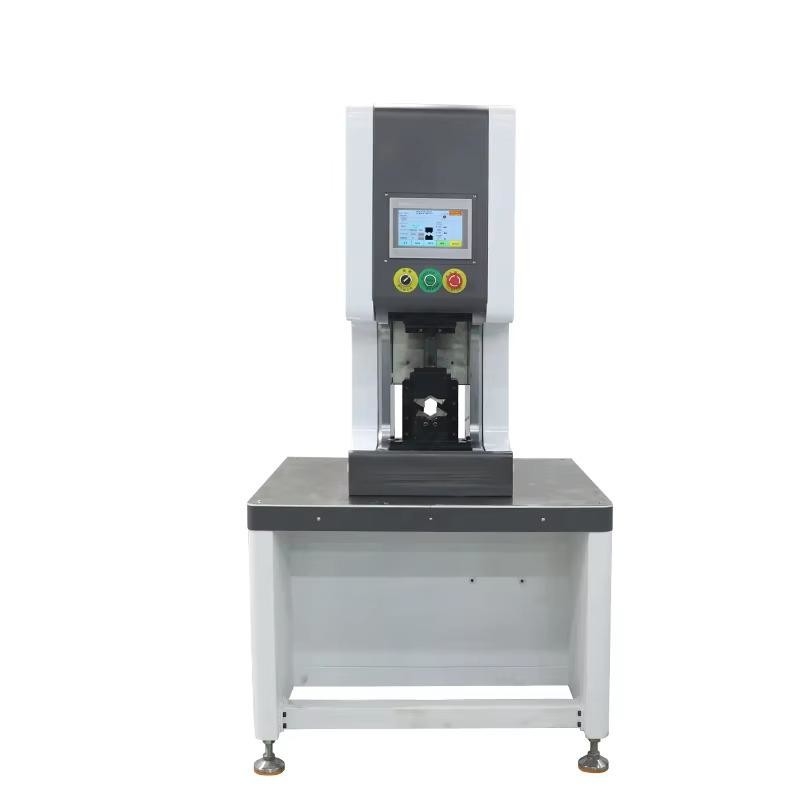

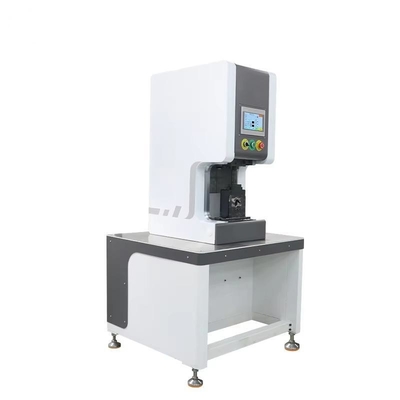

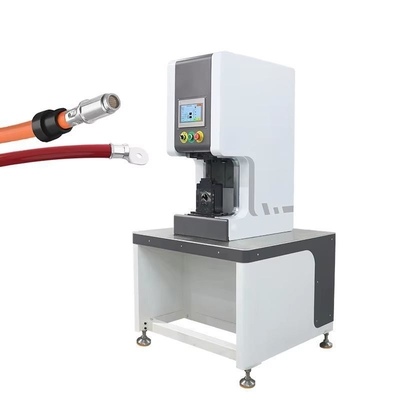

Heavy Duty 30T Square Terminal Crimping Machine Equipment Multi Application Renewable Energy Production Machinery
Product Details:
| Place of Origin: | China(Mainland) |
| Brand Name: | CX |
| Model Number: | CX-N30T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 5-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500sets per month |
|
Detail Information |
|||
| Crimping Force: | 30T | Crimping Range: | 2.5-180mm2 |
|---|---|---|---|
| Usage: | Crimping | Warranty: | 1 Year |
| Dimension: | 560X400X985 | Estimated Weight: | 450KG |
| Highlight: | Heavy Duty terminal crimping machine,30T terminal crimping machine,Square terminal crimping machine |
||
Product Description
Heavy-Duty 30T Square Terminal Crimping Equipment - Multi-Application Renewable Energy Production Machinery
Description
Advanced servo-controlled mechanism ensures micron-level accuracy (±0.02mm) with rapid cycle times. Tungsten carbide-coated cutting tools deliver flawless terminal finishes and 50% extended tool longevity. Industrial-grade steel frame (500kg) minimizes operational vibration for error-free production in EV battery assembly lines.
Features
Touch Screen: Cooperate with the smart program to realizeone-key switching crimping parameters of0-70,120,30 square terminals,and can storevarious parameters.

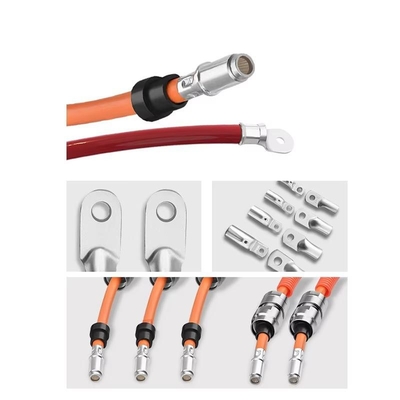

Replaceable mold: Various molds can be assembled for differentapplication scenarios to meet your crimpingshape requirements
Technical Parameter
| Product Name | 10T Servo Terminal Machine | 20T Servo Terminal Machine | 30T Servo Terminal Machine | 40T Servo Terminal Machine | 50T Servo Terminal Machine |
| Model | CX-N10T | CX-N20T | CX-N30T | CX-N40T | CX-N50T |
| Stroke | 40MM | 50MM | 50MM | 70MM | 70MM |
| Crimp Range | 2.5-35mm2 | 2.5-95mm2 | 2.5-180mm2 | 2.5-200mm2 | 2.5-300mm2 |
| Crimp accurate | 0.03MM | ±0.03MM | ±0.03MM | ±0.03MM | ±0.03MM |
| Machine size | 540*350*785 | 560X400X985 | 560X400X985 | 700X480X1225 | 700X480X1225 |
| Machine weight | 230KG | 450KG | 450KG | 670KG | 670KG |
| Power | 1.5KW | 2.6KW 10NM | 2KW 15NM | 3KW 15NM | 3KW 18NM |
| Starting Mode | Touch display/Foot switch | ||||
| Operating mode | Touch type, automatically adjust the crimp height | ||||
| Applicable mould | Hexagon, quadrangle, B mold, etc | ||||
