Semi-automatic Terminal Crimping Machine with 15KN Pressing Ability 220V 50Hz and 0.45KW Power Consumption
Product Details:
| Place of Origin: | Guangdong, China |
| Model Number: | terminal crimping machine |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Usage: | Crimping | Product Name: | Terminal Crimping Machine |
|---|---|---|---|
| Specification: | 330*260*640mm | Pressing Ability: | 15KN |
| Average Power Consumption: | 0.45KW | Weight: | 46KG/1.5T/2T/3T/custom |
| Motor Power: | 0.75KW | Power Supply: | 220V 50Hz |
| Stroke: | 30-40mm | Application: | Terminal Crimping |
| Keywords: | Wire Terminal Crimping Machine | ||
| Highlight: | 220V 50Hz Terminal Crimping Machine,15KN Pressing Ability Terminal Crimping Machine,0.45KW Power Consumption Terminal Crimping Machine |
||
Product Description

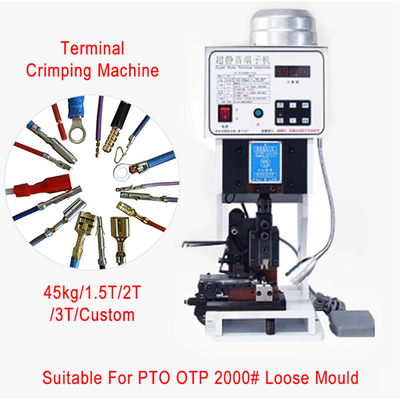

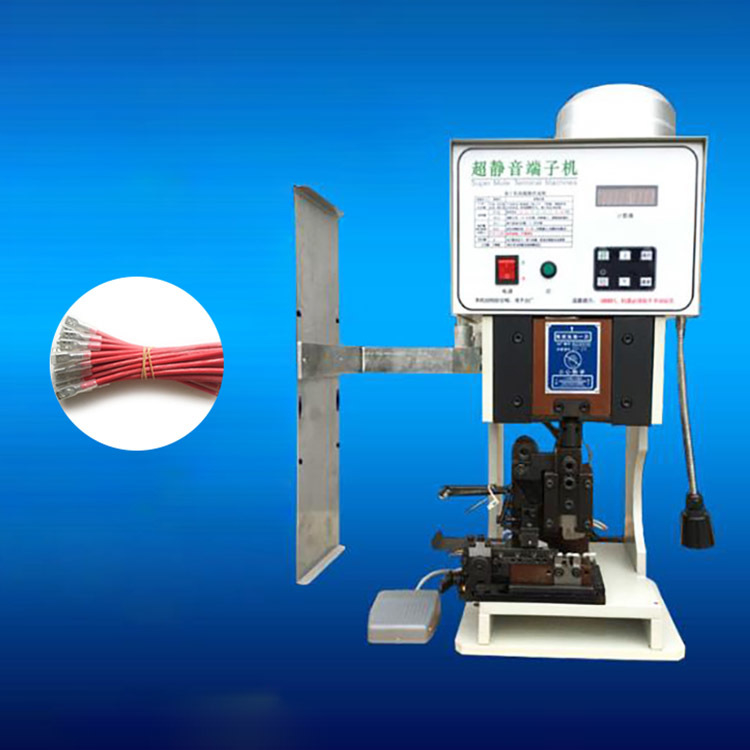

Wire Terminal Crimping Machine
Newstyle semi-automatic terminal crimping machine for common terminal type connector series. Ultra-quiet operation using high-tech frequency conversion technology with electronic precision positioning. This machine operates with less noise than traditional terminals while saving electricity. Variable settings provide convenient and quick adjustments, eliminating common faults found in traditional terminal clutch and electromagnet systems.

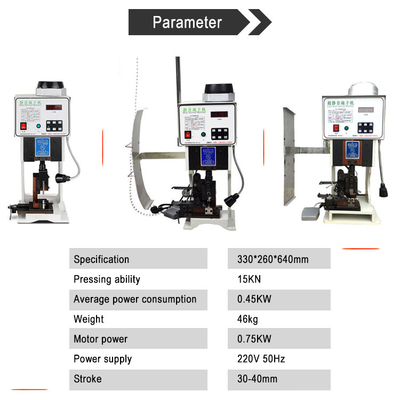

Product Specifications
| Product Name | Crimping Terminal Machine |
| Type | Crimp Different Terminal |
Key Features
- Semi-automatic terminal crimping machine for efficient operation
- Built-in frequency converter for high speed and low noise performance

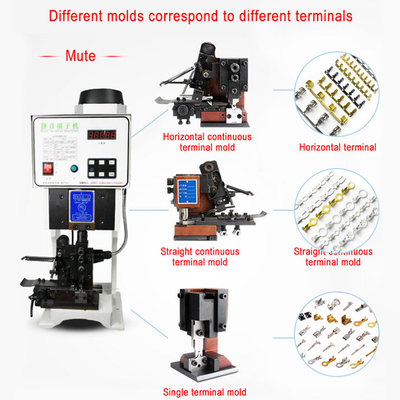

- Versatile design suitable for various terminals with easy mold changes
- Dual operation modes: manual and automatic for flexible adjustments
- LED display shows terminal crimping count for production tracking
- Adjustable speed with custom crimping die design available
Product Images
