Semi-Automatic Terminal Crimping Machine with 0.75KW Motor Power 15KN Pressing Ability and 220V 50Hz Power Supply
Product Details:
| Place of Origin: | Guangdong, China |
| Model Number: | terminal crimping machine |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|
|
Detail Information |
|||
| Usage: | Crimping | Product Name: | Terminal Crimping Machine |
|---|---|---|---|
| Specification: | 330*260*640mm | Pressing Ability: | 15KN |
| Average Power Consumption: | 0.45KW | Weight: | 46KG/1.5T/2T/3T/custom |
| Motor Power: | 0.75KW | Power Supply: | 220V 50Hz |
| Stroke: | 30-40mm | Application: | Terminal Crimping |
| Keywords: | Wire Terminal Crimping Machine | ||
| Highlight: | 0.75KW Motor Power Terminal Crimping Machine,15KN Pressing Ability Wire Terminal Crimper,220V 50Hz Power Supply Crimping Press |
||
Product Description
Motor Power 0.75KW Semi Automatic Press Terminales OTP Ring Tube Flag Spade Blade Y U Type Terminal for Crimping Machine
The semi-automatic terminal crimping machine is designed for common terminal type connector series. This ultra-quiet machine utilizes high-tech frequency conversion technology and electronic precision positioning, operating with significantly less noise than traditional terminals while saving electricity. The variable settings make operation more convenient and quick, eliminating common faults associated with traditional terminal clutch and electromagnet systems.
Key Features
- Semi-automatic terminal crimping operation
- Built-in frequency converter for high speed and low noise operation

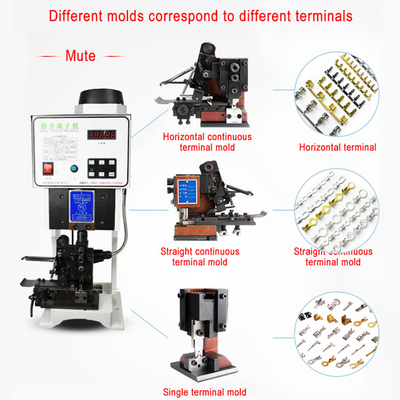

- Versatile design suitable for various terminal types with easy mold changes
- Dual operation modes: manual and automatic with easy adjustment capability
- LED display showing terminal crimping count
- Adjustable speed with custom crimping die design available
Product Images
