220PCS PE Double Splice Tube Butt Shrinkable Terminal Insulated Crimp Heat Shrink Wire Connector Kit
Product Details:
| Place of Origin: | Guangdong, China |
| Model Number: | yellow rose red blue |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|
|
Detail Information |
|||
| Type: | SPLICE | Color: | Yellow Rose Red Blue |
|---|---|---|---|
| Material: | Nylon+Tinned | Certificate: | ISO9001 SGS CE CQC ROHS |
| Product Name: | Solder Seal Wire Connectors | Wire Range: | 10-12/14-16/ 18-22 AWG |
| Package: | 180/200/210/220/240/250/270/480pcs/BOX | MOQ: | 1box |
| Item: | Heatshrink Tubing | Application: | Wire Connection |

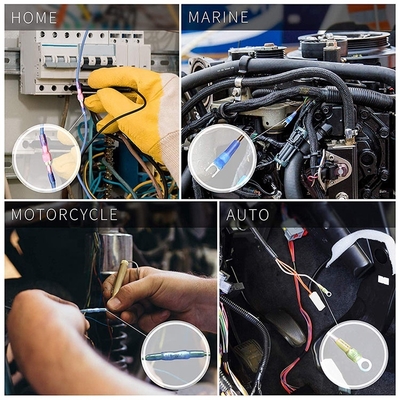

| Usage: | Connecting Cable | ||
| Highlight: | PE insulated wire connectors,heat shrink crimp terminals,220PCS splice tube kit |
||
Product Description
Each box contains:

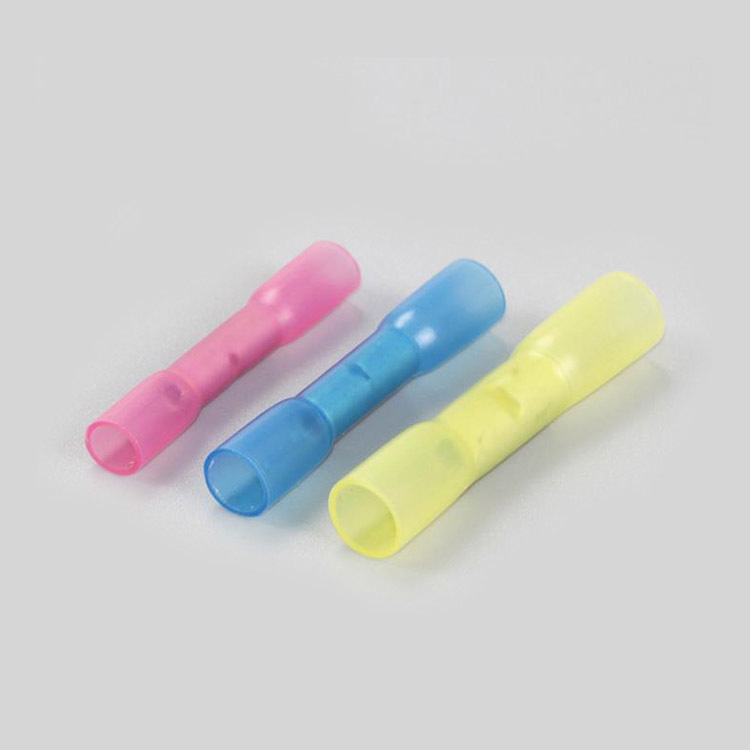

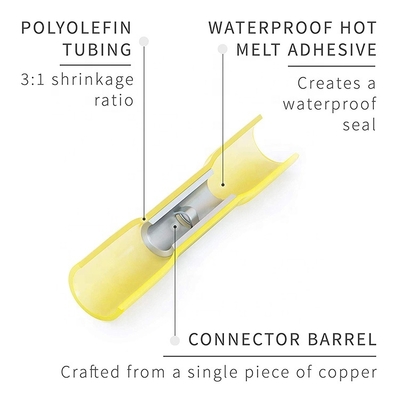

Heat Shrink butt connector

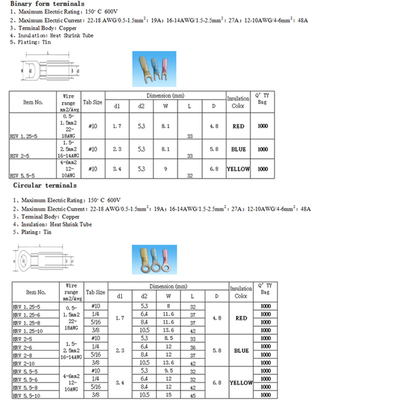

Heat Shrink Ring Terminal (#10)
Heat Shrink Ring Terminal (1/4")
Heat Shrink Ring Terminal (5/16")
Heat Shrink Ring Terminal (3/8")

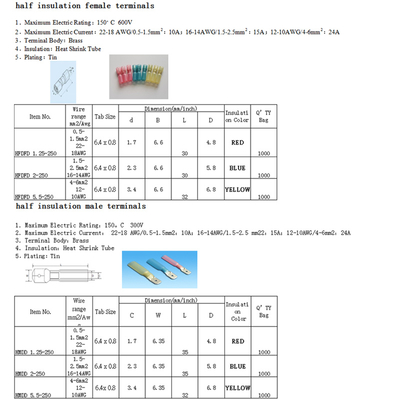

Male Quick Disc
Female Qucik Disc
Fork Terminal(#10)
| Property | Specification Requirement | Test Method | Typical Value |
| Tensile strength(Room temp.) | Min.10.4Mpa | UL224 | 17.2Mpa |
| Elongation at break(Room temp.) | Min.200% | UL224 | 280% |
| Tensile strength after aging(158℃ 168hrs) | Min.7.3Mpa | UL224 | 11.5Mpa |
| Elongation after aging(158℃ 168hrs) | Min.100% | UL224 | 200% |
| Voltage withstand(Uh-aged) | Withstand 2.5kv for 1 minute and breakdown | UL224 | pass |
| Voltage withstand(Aged) | Withstand at least half of un-aged breakdown voltage for 1 minute and breakdown |
UL224 | pass |
| Copper corrosion(158℃ 168hrs) | No corrosion of bare copper | UL224 | No sign of deg. |
| Copper stabiity(158℃ 168hrs) | No sign of degradation (min.elongation 100%) | UL224 | pass |
| Cold blend(-30℃ 1hrs) | No crack | UL224 | pass |
| Maximum secant modulus(2%) | 173Mpa | UL224 | pass |
| Volume resistivity | Min.1014Ω.m | UL224 | pass |
| Heat shock(250℃ 4hrs) | No crack | ASTM D2671 | pass |
| Dielectric strength | >15.8kv/mm | ASTM D2671 | >25kv/mm |
