450kg Double Ends Wire Terminal Crimping Machine 30mm Cut Length
Product Details:
| Place of Origin: | China |
| Brand Name: | CX |
| Model Number: | CX-01C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/set |
|---|---|
| Price: | FOB Shenzhen |
| Packaging Details: | woodencase |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 150set per month |
|
Detail Information |
|||
| Automation: | Full Auto | ||
|---|---|---|---|
| High Light: | 450kg Wire Terminal Crimping Machine,Wire Terminal Crimping Machine 30mm,3600pcs/hr Double End Terminal Machine |
||
Product Description

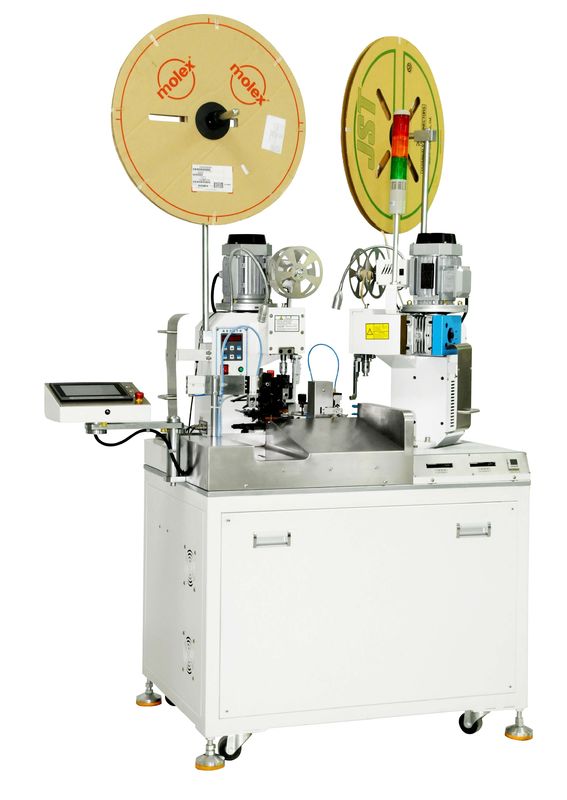

CX-01C Full Automatic Double-ends Terminal Crimping Machine
Equipment Function:
| Name of the machine | CX-01C Full Automatic Double-ends Terminal Crimping Machine |

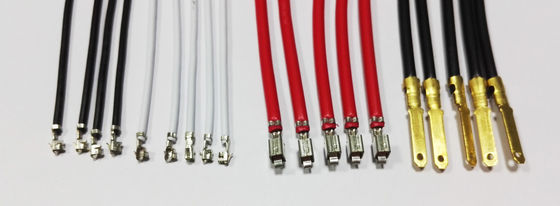

| Function | A side, B side Cutting, Stripping, Crimping |
| Control Method | HMI+Microcomputer |
| Detection Device | With terminal or not, No wires alarm, air pressure detection |
| Terminal pressure detection system | Optional installation (applicable for domestic and imported systems) |
| Crimping force | 2T/3T Mute terminal crimping machine |
Technical Parameter
| Voltage | 50/60Hz 220V single phase |
| Cutting Length | 30mm(total length)-9999mm |
| Applicable cable | standard model: AWG#30-AWG#18 Custom model: AWG#14-AWG#18 |
| Applicable terminal | 1.25-3.96mm horizontal, straight mold is changeable, adapt to flag figure mold |
| Capacity | 3200pcs-3600pcs/hr (with length 30mm-200mm) Actual production efficiency varies according to wire and processing technology, subject to actual conditions |
| Stripping Length | A side 0-6mm; B side 0-8mm |
| Cutting accuracy | ±(0.2%*L+1)mm |
| Air Pressure | 0.5-0.7Mpa(5-7kg/m³) |
| Diamension | 1,000*1,700*1,550mm |
| Weight | about 450kg±15 |
Device Configuration
| Motor | 2stes of Japan Mitsubishi servo motors + 4 sets step motors |
| Pneumatic Components | The electromagnetic valve + 5 sets of SMC Cylinder |
| Screw | 1 sets TBI |
| Slide | 6 sets Taiwan Hiwin |
| Sensor | Japanese Panasonic |
| Belt | American Gates Brand |
| Bearing | Japnese NSK |
| Blades | t is made of imported alloy steel, processed by slow-moving wire, precision ground, and durable |
