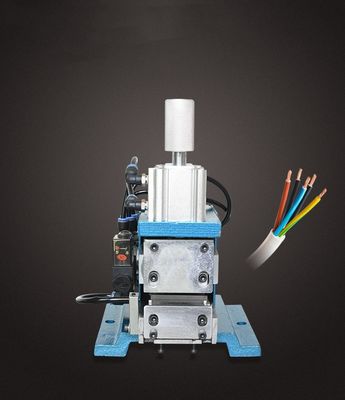

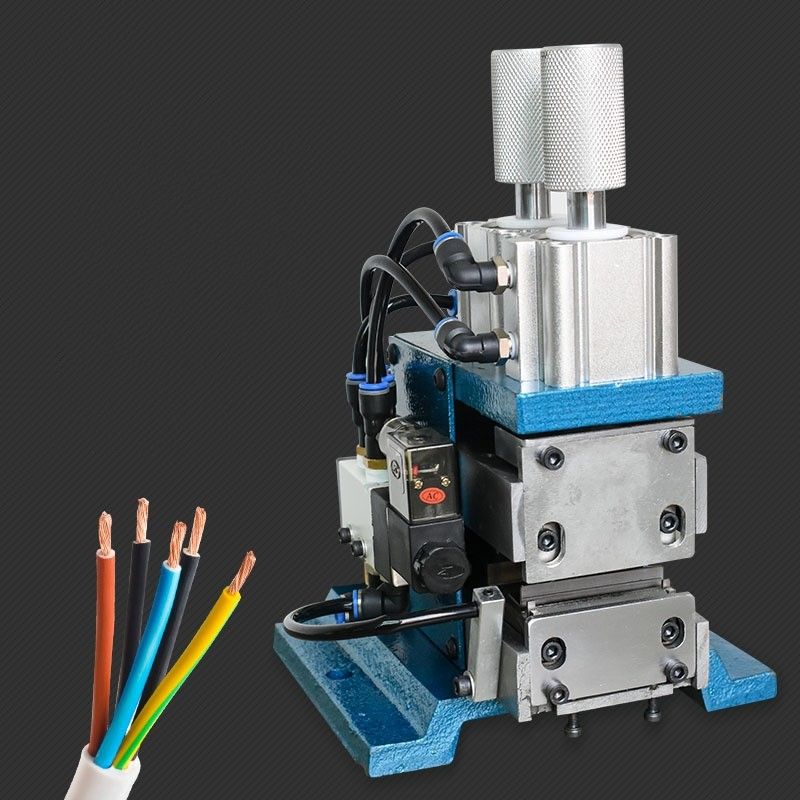

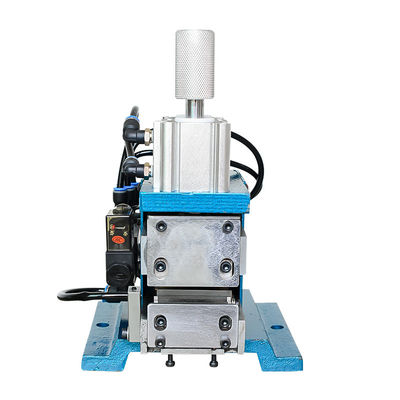

AWG32-AWG16 Pneumatic Wire Stripping Machine Small Vertical

AWG32-AWG16 Pneumatic Wire Stripping Machine Small Vertical

Product Details:

Place of Origin: CHINA
Brand Name: CHENXIN
Certification: ISO90001
Model Number: CX-3F

Payment & Shipping Terms:

Minimum Order Quantity: 2/Set
Price: Fob Shenzhen
Packaging Details: boxes
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 500 sets per month
Get Best Price Contact Now

Detail Information

Stripping Length: 25mm Voltage: AC 110V/220v
Air Pressure: 3-7kg Dimension: L 330mm * W 190mm * H 2700mm
Adaptable Wire: AWG#32-AWG#16 Weight: 12kg
High Light:

AWG16 Pneumatic Wire Stripping Machine


AWG32 Pneumatic Wire Stripping Machine


Vertical Wire Peeling Stripping Machine

Product Description

CX-200C Semi-Automatic Pneumatic Braided Cable Wire Heat Stripping Machine



3F pneumatic peeling machine can cut and peel. One machine has multiple uses. Dual blade configuration, pneumatic control

Specifically for electronic thin wires. Sophisticated design. easy to use


Technical Parameter:

Model CX-3F CX-4F
Adaptable wire AWG#32-AWG#16 AWG#32-AWG#14
Voltage 110v/220V  110v/220V
Stripping length 25mm 25mm
Air pressure 3-7kg 3-7kg
Weight 12kg 15kg
Dimension(mm) 330*190*2700 330*240*330

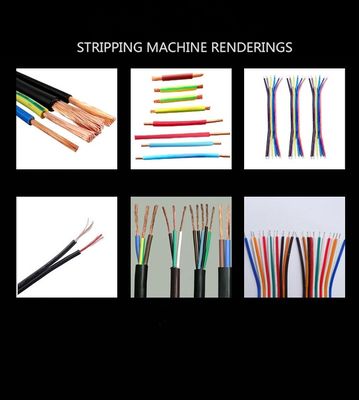

Suitable for electronic wire, Teflon wire, xenon wire, isolation wire, sheathed wire, flat wire


Company Introduction

Dongguan Chenxin Automation Equipment Co., Ltd. is a company engaged in the manufacture of automation equipment for the processing of power cord AC plugs and wire harness ends processing for more than 10 years.

The company's main products are a fully automatic plug crimping machine, fully automatic wire tinning machine series, fully automatic wire winding machine series, semi-auto terminal crimping machine, automatic cutting machine, automatic coaxial wire stripping machine. Provide safer, labor-saving, efficient, and high-quality equipment for the power cord production, wire harness end processing industry.


We can provide a series of solutions in the wire and cable field to help promote the improvement of our customers' business. we not only provide equipment and solutions but also focus on offering high-quality services such as free layout design of power cord factory, overseas installation guidance, operation training, and so on.


AWG32-AWG16 Pneumatic Wire Stripping Machine Small Vertical 0AWG32-AWG16 Pneumatic Wire Stripping Machine Small Vertical 1AWG32-AWG16 Pneumatic Wire Stripping Machine Small Vertical 2
