Wire Cutting Stripping Plug Crimping Machine 2 Pins Cores Flat Cable
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO9001 |
| Model Number: | CX-780 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/Set |
|---|---|
| Price: | Fob Shenzhen |
| Packaging Details: | wooden case |
| Delivery Time: | 15-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Capacity: | 900-1,200pcs/hr | Stripping Length: | 4mm-7mm(adjustable On The Touch Screen) |
|---|---|---|---|
| Punching Force: | 4T | Pass Yield: | ≥99% |
| Air Pressure: | 0.5-0.8Mpa | Voltage&Frequency: | AC 220V/380V 50Hz |
| Power: | 4.5kw | Warranty: | 1 Year. 24hr Online Technical Guidance |
| End Stripping: | 20mm-500mm | ||
| High Light: | CX780 Plug Crimping Machine,Plug Crimping Machine 2 Pins,2 Pins Flat Cable Crimping Machine |
||
Product Description

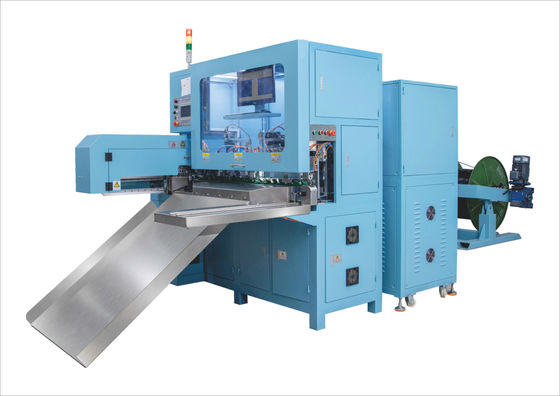

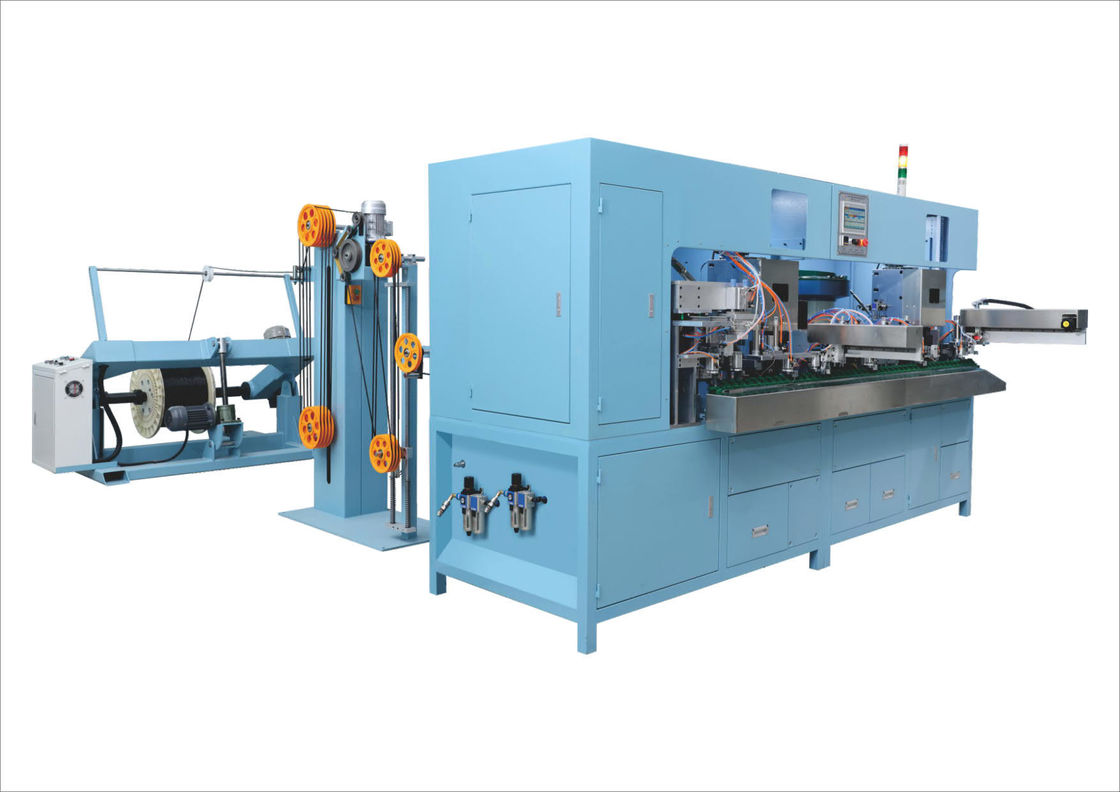

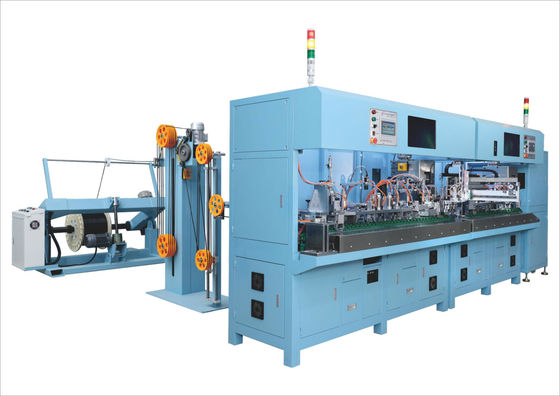

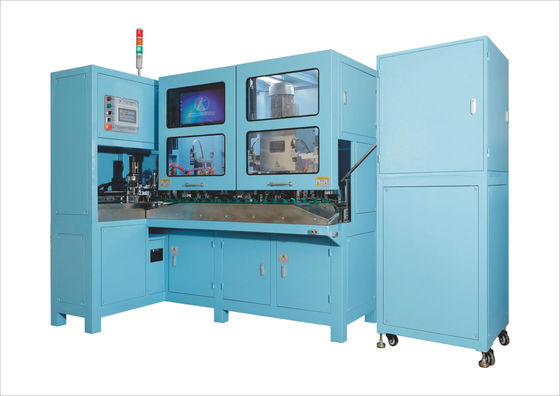

CX-780 Full Automatic 2 Pins Cores Power Cord Production Flat Cable Wire Cutting Stripping Plug Crimping Machine
Features:
The machine integrates automatic wire feeding, wire cutting, head of cable peeling, and head plug crimping. end of the cable stripping, twisting, tinning, and crimp the end terminal at one time. Otherwise stripping end jacket up to 20-500mm.
Applicable Wire:
H03VVH2-F, H05VVH2-F, SPT1/2, RVV, VFF, etc 2 cores flat cable.
Technical parameter
| Model of machine | CX-780 |
| Capacity | 900-1,100pcs/hr |
| Punching force | 4T |
| Stripping length | 4mm-7mm(adjustable on the touch screen) |
| Pass yield | ≥99% |
| Air pressure | 0.5-0.8Mpa |
| Voltage&Frequency | AC 220V/380V 50Hz |
| Power | 4.5kw |
| Dimension | L3,100mm*W5,000mm*H1,850mm(display dimension) |
| Weight | 2,000kg |
Finished product display
Head plug crimping+End terminal crimping and assembly/ End stripping(20-500mm)
