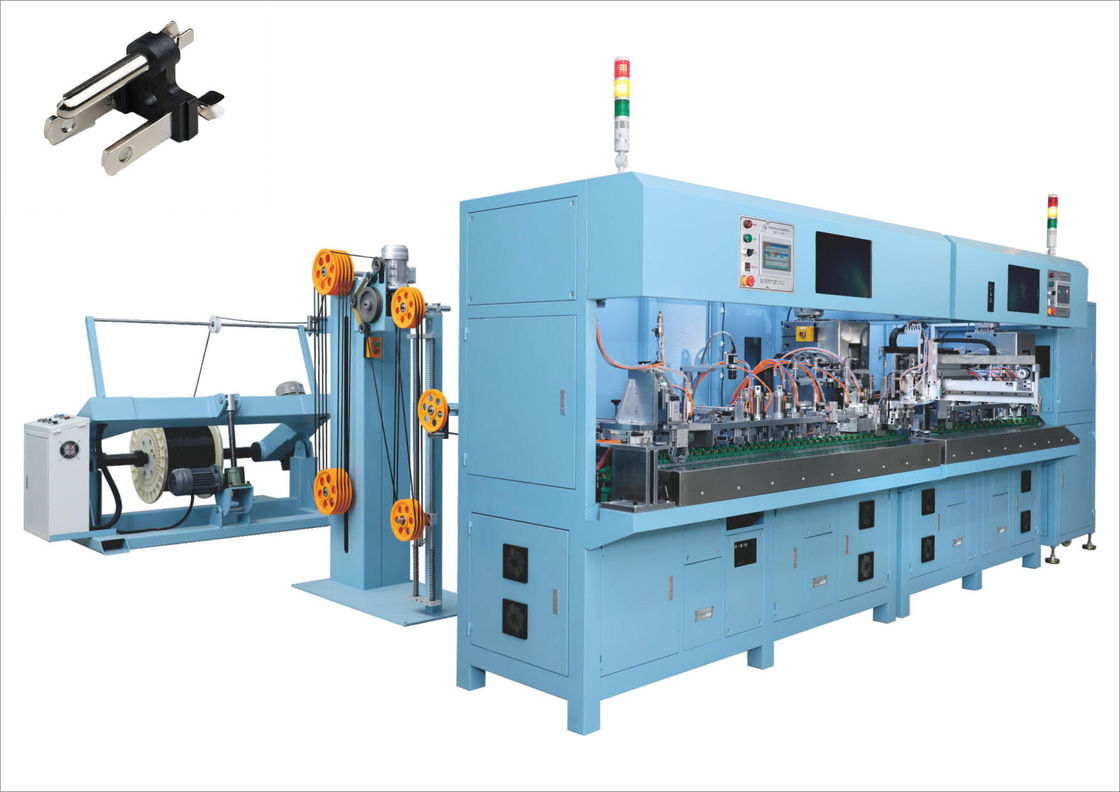

Down Angle Nema 5-15P Plug Making Crimping Machine Power Cord Production Line
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO9001 |
| Model Number: | CX-980 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/SET |
|---|---|
| Price: | FOB shenzhen |
| Packaging Details: | woodencase |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 150 sets per month |
|
Detail Information |
|||
| Head Stripping Length:: | 24-26mm (adjustable) | End Stripping Length: | 20mm-500mm (adjustable) |
|---|---|---|---|
| Capacity: | 900-1,200pcs/hr | Punching Force: | 4T |
| Warranty: | 1 Year. 24hr Online Technical Guidance | ||
| Highlight: | CX 980 Plug Making Crimping Machine,5 15P Plug Making Crimping Machine,Power Cord Production Line |
||
Product Description
CX-880 Power Cord Production Line Down Angle Nema 5-15P Power Cord Plug Making Crimping Machine
Applicable wire:
H03VV-F,H05VV-F (smaller than1.5 mm2 ),2-core, and 3-core terminal designs can be designed according to clients requirements. rubber/PCV cable can work on one machine.
Product introduction:
With function cable feeding, cutting, head of cable peeling, dust removal, polarity recognition, terminal + tail peeling (up to 500 mm) all finished one time.
Realize unmanned operation, save at least 4 - 5 workers compared with the original operation, reduce accidents, save labor, increase production, make it safer and more environmentally friendly.
Machine parameters:
| Machine type | CX-880 |
| Punching force | 4T |
| Head stripping length | 24-26mm (adjustable) |
| End stripping length | 20mm-500mm (adjustable) |
| Machine size | 1850mm*1000mm*1800mm |
| Capacity | 900-1,200pcs/hr |
| Voltage | AC220/380V 50Hz |
| Weight | 2,500KG |
| Power | 4.5KW |

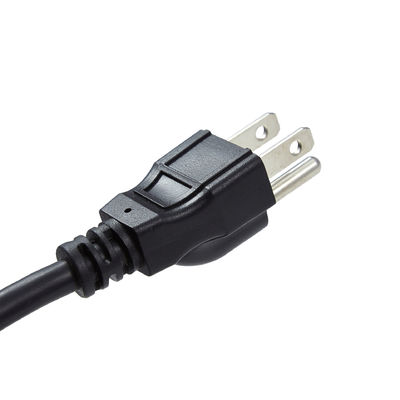

Finished product

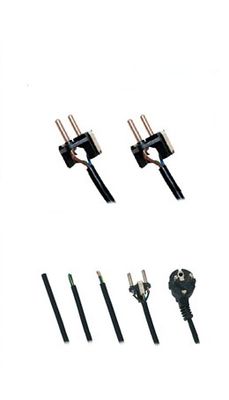

Head of power cord plug crimping+End stripping(20-500mm)
