3 Pin NEMA 5-15 Plug Cord Making Crimping Machine 800-1,000pcs/Hr
Product Details:
Place of Origin: | CHINA |
Brand Name: | CHENXIN |
Certification: | ISO9001 |
Model Number: | CX-S180 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1/Set |
---|---|
Price: | Fob Shenzhen |
Packaging Details: | wooden case |
Delivery Time: | 10-15 working days |
Payment Terms: | T/T |
Supply Ability: | 150 sets per month |
Detail Information |
|||
Capacity: | 800-1,000pcs/hr | Punching Force: | 4T |
---|---|---|---|
Pass Yield: | ≥99.9% | Air Pressure: | 0.5-0.8mpa |
Voltage&Frequency: | AC 220V 50Hz | Power: | ≤1.5kw/hr |
High Light: | NEMA 5-15 Cord Making Crimping Machine,1000pcs/Hr Cord Making Crimping Machine,NEMA 5-15 plug insert crimping machine |
Product Description

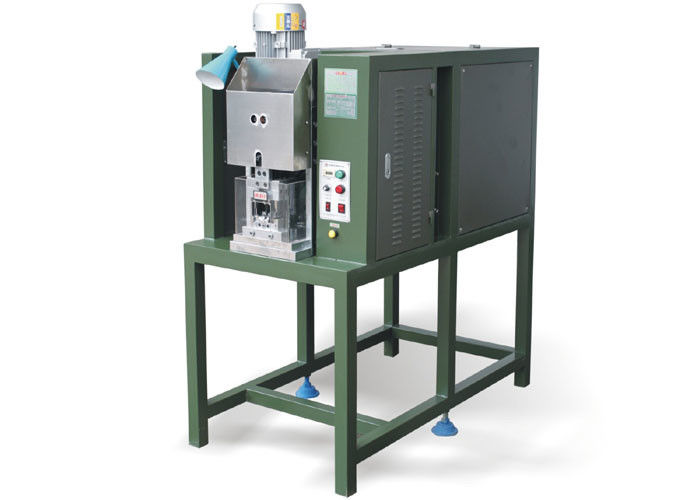

Cx-S180 American 3 pin NEMA 5-15 Type B Electrical Plug Auto Power Cord Making Crimping Machine
Features:
1, The machine with a function plug automatically feeds, crimps in one step.
2, Machine controlled by PLC and frequency convertor, conversion motor. safety cover designed on crimping position to avoid hand injury.
3, Easy operation, no need for a professional technician.
Technical parameter
Model of machine | CX-S180 |
Capacity | 800-1,000pcs/hr |
Punching force | 4T |
Pass yield | ≥99.9% |
Air pressure | 0.5-0.8mpa |
Voltage&Frequency | AC 220V 50Hz |
Power | ≤1.5kw/hr |
Dimenson | 1,160mm*700mm*1,650mm |
Weight | 280kg |

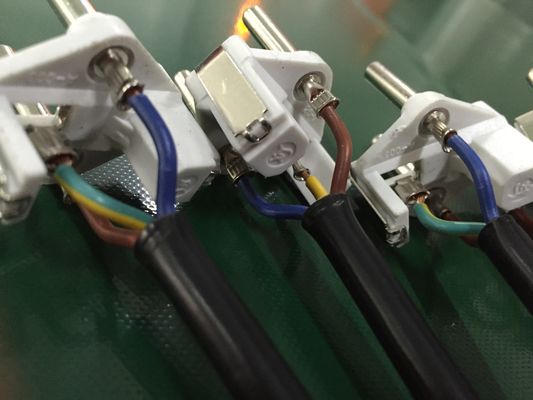

Finished product
power cord end processing: plug insert feeding+ plug insert crimping.
