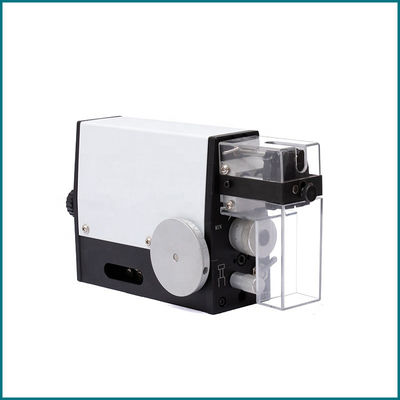

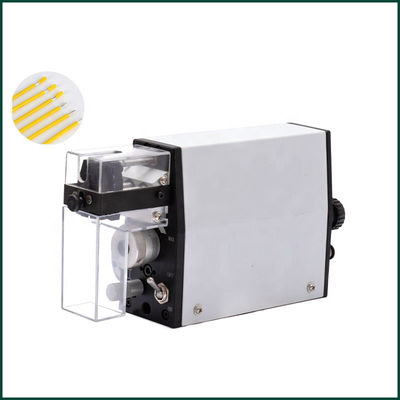

ISO9001 Pneumatic Wire Stripping Machine For Discrete Wires
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENCIN |
| Certification: | ISO9001 |
| Model Number: | CX-JC30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5/Set |
|---|---|
| Price: | FOB Shenzhen |
| Packaging Details: | wooden case/boxes |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 sets per month |
|
Detail Information |
|||
| Applicable Wire: | 0.1-2.0mm²(AWG#32-AWG#14) | Max. Cable Outer Diameter: | 3.2mm |
|---|---|---|---|
| Stripping Length Increments: | Full Stripping:0.5mm; Semi-stripping:2mm | Precision Of Setting Diameter: | 0.01mm |
| Max.stripping Length: | 20mm | Cycle Time: | About 0.3s |
| Warranty: | 1 Year. 24hr Online Technical Guidance | Wire Material: | PVC, Teflon, Single Wire,single-core, Rubber |
| High Light: | ISO9001 Pneumatic Wire Stripping Machine,135mm Pneumatic Wire Stripping Machine,3.2mm cable wire stripping machine |
||
Product Description
CX-JC30 Pneumatic Wire Cable Stripping Machine For Discrete Wires And Small Multi-Conductor Cables
| Model of machine | CX-JC30 |
| Wire material | PVC, Teflon, single wire,single-core, rubber |
| Applicable wire | 0.03-2.08mm²(AWG#32-AWG#14) |
| Max. cable outer diameter | 3.2mm |
| Stripping length increments | full stripping:0.5mm; semi-stripping:2mm |
| Precision of setting diameter | 0.01mm |
| Max.stripping length | 20mm |
| Cycle time | about 0.3s |
| Air pressure | 0.5-0.8Mpa |
| Dimension | 265mm*70mm*135mm |
| Weight | 3.0kg |
Company Introduction
Dongguan Chenxin Automation Equipment Co., Ltd. is a company engaged in the manufacture of automation equipment for the processing of power cord AC plugs and wire harness ends processing for more than 10 years.
The company's main products are a fully automatic plug crimping machine, fully automatic wire tinning machine series, fully automatic wire winding machine series, semi-auto terminal crimping machine, automatic cutting machine, automatic coaxial wire stripping machine. Provide safer, labor-saving, efficient, and high-quality equipment for the power cord production, wire harness end processing industry.
We can provide a series of solutions in the wire and cable field to help promote the improvement of our customers' business. we not only provide equipment and solutions but also focus on offering high-quality services such as free layout design of power cord factory, overseas installation guidance, operation training, and so on.
