AWG28-AWG14 Terminal Block Auto Inserting Machine Cable Seal Plug Waterproof
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO9001 |
| Model Number: | CX-DW01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/Set |
|---|---|
| Price: | FOB Shenzhen |
| Packaging Details: | wooden case/boxes |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 150 sets per month |
|
Detail Information |
|||
| Function: | Cutting, Single-stripping, Double End Stripping, Crimping To Sealing | Applicable Wire: | AWG#28-AWG#14 |
|---|---|---|---|
| Cutting Length: | 50mm-9,999mm | Stripping Length: | 1.5mm-10mm |
| Capacity: | 3,000pcs/hr(within Cutting Length 100mm) | Cutting Accuracy: | ＜1mm+cutting L*0.2% |
| Stroke Of Crimping Applicator: | 30mm(40mm Optional) | Crimping Force: | 2T(3T Optional) |
| Detection Device: | Wire And Terminal Detection; Compressed Air Detection (CFM Optional) | Warranty: | 1 Year. 24hr Online Technical Guidance |
| Highlight: | 50mm AWG14 Auto Inserting Machine,AWG28 Auto Inserting Machine,1500mm Cable Plug Crimping Machine |
||
Product Description

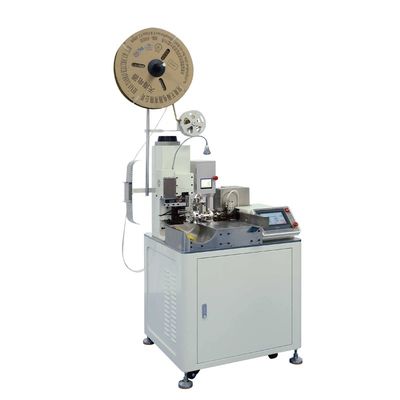

CX-DW01 Automatic Wire Crimping Machine Cable Seal Plug/Waterproof Terminal Block Auto Inserting Machine
| Model of machine | CX-DW01 |
| Function | cutting, single-stripping, double end stripping, Crimping to sealing |
| Applicable wire | AWG#28-AWG#14 |
| Cutting length | 50mm-9,999mm |
| Stripping length | 1.5mm-10mm |
| Capacity | 3,000pcs/hr(within cutting length 100mm) |
| Cutting accuracy | ＜1mm+cutting L*0.2% |
| Detection device | wire and terminal detection; compressed air detection (CFM optional) |
| Air pressure | 4-6kgf |
| Stroke of crimping applicator | 30mm(40mm optional) |
| Crimping force | 2T(3T optional) |
| Voltage&frequency | 110/220V 50/60Hz |
| Dimension(L*W*H) | 700mm*800mm*1,500mm |
| Weight | 348kg |
