OEM ODM 1500pcs/Hr Wire Terminal Crimping Machine 25mm-600mm Cut Length
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHENXIN |
| Certification: | ISO9001 |
| Model Number: | CX-1801 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/Set |
|---|---|
| Price: | FOB Shenzhen |
| Packaging Details: | wooden case/boxes |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 150 sets per month |
|
Detail Information |
|||
| Applicable Wire: | AWG#30-AWG#18(Suitable For Wires Of Different Specifications And Colors ) | Cutting Length: | 25-600mm(＞600mm Can Be Customized) |
|---|---|---|---|
| Stripping Length: | A Side 1-12.5mm; B Side 1-7mm | Capacity: | 1,100-1,500pcs/hr (subject To Actual Conditions) |
| Cutting Accuracy: | ＜0.1mm+0.005*cutting L | Adaptable Terminal: | The Pitch Is 1.25-3.96mm |
| Crimping Force: | 2T | Detection Device: | CCD Visual Inspection, With Terminal Or Not, No Wires Alarm, Air Pressure Detection, Housing Plug And Unplug Force Detection |
| Warranty: | 1 Year. 24hr Online Technical Guidance | ||
| Highlight: | ODM 600mm Wire Terminal Crimping Machine,25mm Wire Terminal Crimping Machine OEM,1500pcs/hr automatic terminal crimping machine |
||
Product Description

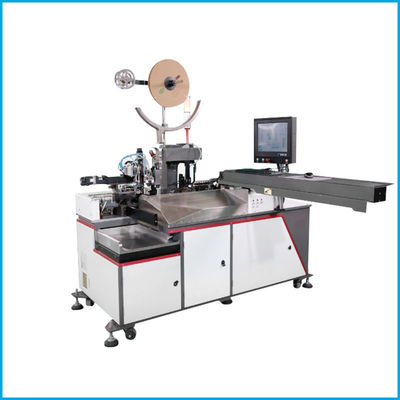

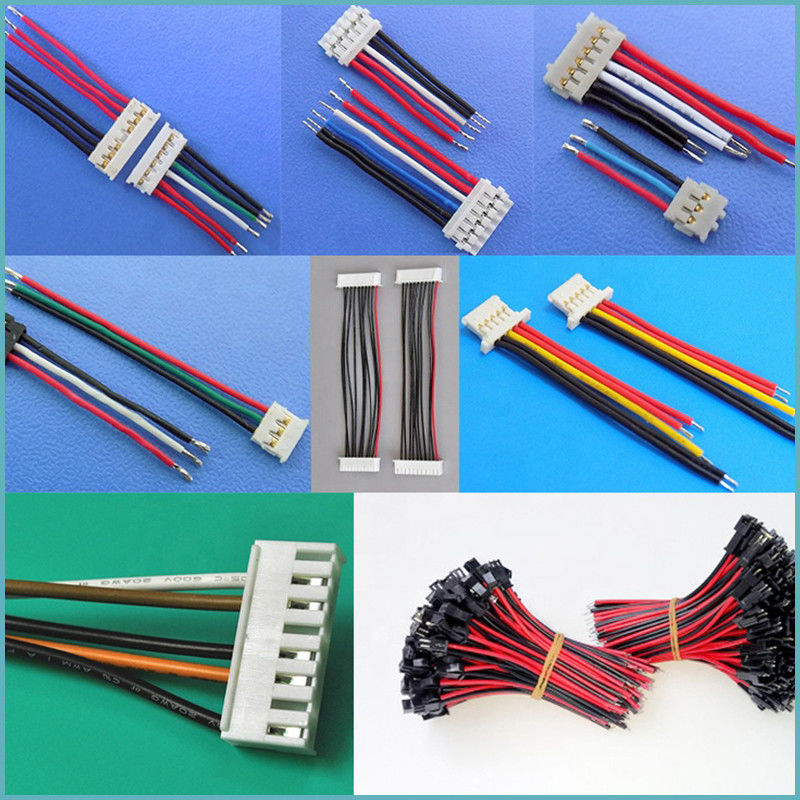

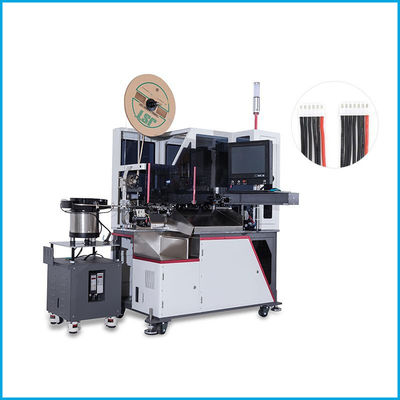

CX-1801 Full Automatic Wire Cutting Stripping Crimping One Side Tinning Terminal Connector Housing Insertion Machine

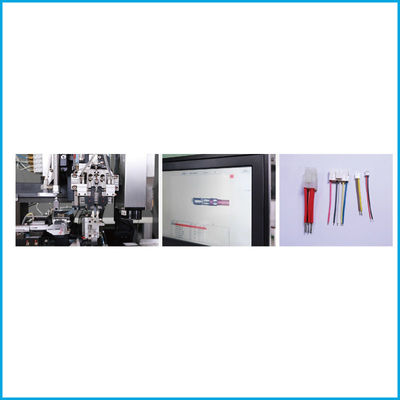

Equipment Function:
| Name of the machine | CX-1801auto terminal crimping and housing assembly |
| Function | A side cutting, stripping, tinning; B side Cutting, full stripping, partial stripping, crimping, housing assembly. |
| Control Method | computer, windows7, touch screen, mouse, keyboard dural input |
| Take up system | Computer automatic pre-feeding device, suitable for no-shaft coiling wire + with-shaft coiling wire |
| Detection Device | CCD visual inspection, With terminal or not, No wires alarm, air pressure detection, housing plug and unplug force detection |
| Terminal pressure detection system | Optional installation (applicable for domestic and imported systems) |
| Defective product handling | Sorting (cutting device can be installed) |
| Adaptable mold | OTP standard horizontal mold, straight mold, flag figure mold |
| Applicable housing | suitable for multiple pins and different distances of the pin |
| Crimping force | 2T Super Mute terminal crimping machine |
Technical Parameter
| Voltage | 50/60Hz 220V single phase |
| Cutting Length | 25-600mm(＞600mm can be customized) |
| Applicable cable | AWG#30-AWG#18(Suitable for wires of different specifications and colors ) |
| adaptable terminal | The pitch is 1.25-3.96mm |
| Capacity | 1,100-1,500pcs/hr (subject to actual conditions) |
| Stripping Length | A side 1-12.5mm; B side 1-7mm |
| Cutting accuracy | ±(0.2%*L+1)mm |
| Air Pressure | 0.5-0.7Mpa(5-7kg/m³) |
| Dimension | 2,300*1,200*1,370mm take-up 1400*800*1300mm |
| Weight | about 750kg±15 take-up 150kg |
Device Configuration
| Motor | 15 sets of Mitsubishi motor |
| Pneumatic Components | 34 sets of SMC Cylinder(Air source treatment, flow control, actuator, control valve body all adopt SMC ) |
| Module | 4 sets of THK / Hwin linear module |
| Screw | 2 sets TBI |
| Guide rail | 14 sets of THK / Hiwin linear guide |
| Sensor | Japanese Panasonic |
| Belt | American Gates Brand |
| Bearing | Japnese NSK |
| Blades | t is made of imported alloy steel, processed by slow-moving wire, precision ground, and durable |
