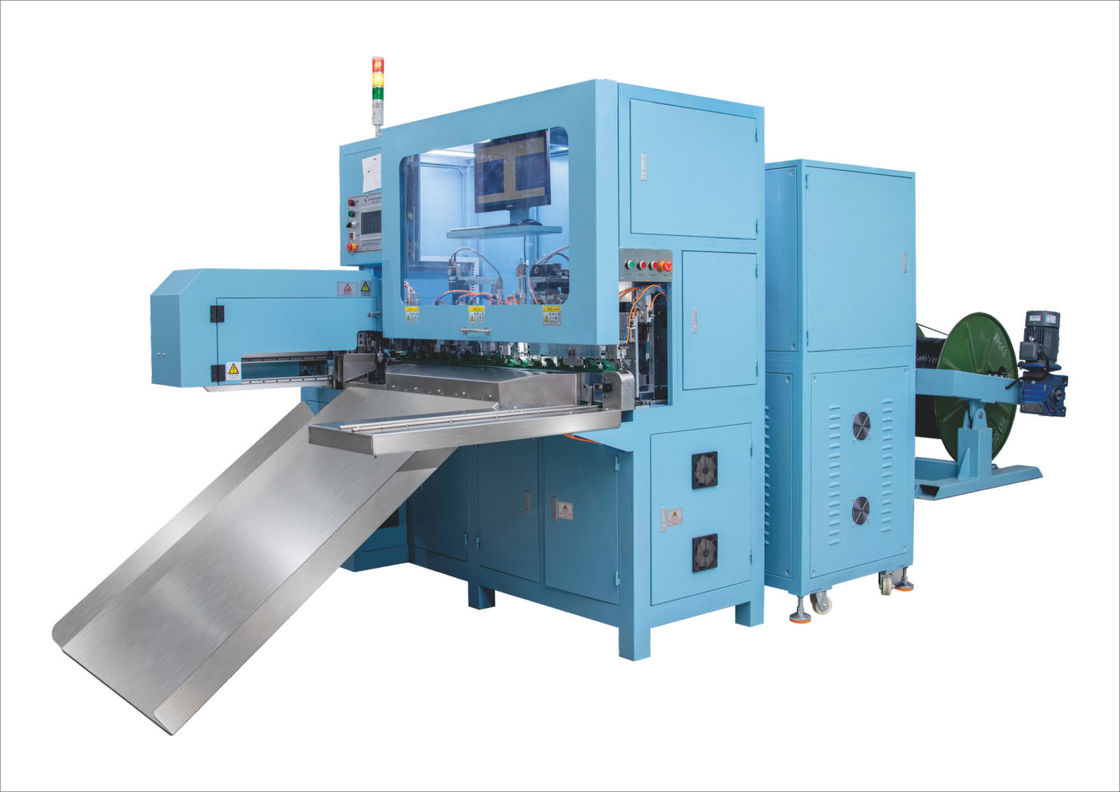

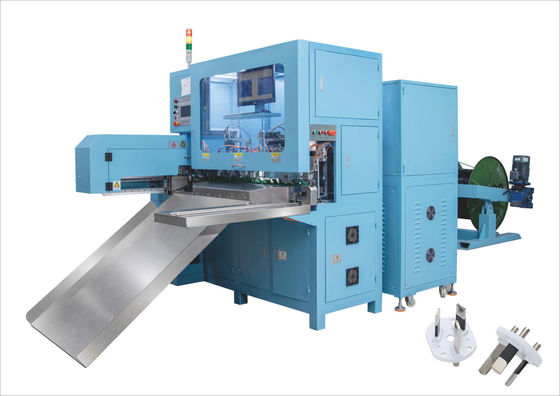

3 Pin Plug Crimping Machine 900 - 1200pcs/Hr For Power Cord Making

3 Pin Plug Crimping Machine 900 - 1200pcs/Hr For Power Cord Making

Product Details:

Place of Origin: CHINA
Brand Name: CHENXIN
Certification: ISO9001
Model Number: CX-880

Payment & Shipping Terms:

Minimum Order Quantity: 1/SET
Price: FOB shenzhen
Packaging Details: woodencase
Delivery Time: 10-15 working days
Payment Terms: T/T
Supply Ability: 150 sets per month
Get Best Price Contact Now

Detail Information

Head Stripping Length:: 24-26mm (adjustable) End Stripping Length: 20mm-500mm (adjustable)
Capacity: 900-1,200pcs/hr Punching Force: 4T
Warranty: 1 Year. 24hr Online Technical Guidance
High Light:

3 Pin Plug Crimping Machine

,

900pcs/hr Crimping Machine

,

1200pcs/hr Power Cord Making Machine

Product Description

Full Line 3 Cores Round Cable Power Cord Making 3 Pin Plug Crimping Machine 900 - 1200pcs/Hr





The use of multi-station serial modular design is simple and convenient for maintenance, and the process is serialized and processed at the same time to improve quality and efficiency. It is specially designed for AC three-core round cable head processing, which can realize automatic cutting and stripping, color polarity detection, and automatic feeding and punching.

Features: French type, three-plug general machine can be customized according to requirements.



Applicable wire:

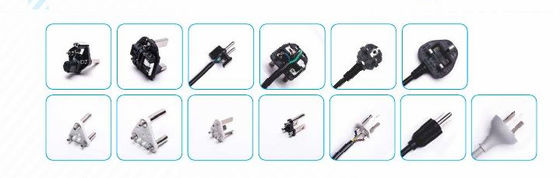

H03VV-F, H05VV-F (smaller than1.5 mm2 ),2-core, and 3-core terminal designs can be designed according to clients' requirements. rubber/PCV cable can work on one machine.

Product introduction:
With function cable feeding, cutting, head of cable peeling, dust removal, polarity recognition, terminal + tail peeling (up to 500 mm) all finished one time.
Realize unmanned operation, save at least 4 - 5 workers compared with the original operation, reduce accidents, save labor, increase production, make it safer and more environmentally friendly.

Machine parameters:
Machine type CX-880
Punching force 4T
Head stripping length 24-26mm (adjustable)
End stripping length 20mm-500mm (adjustable)
Machine size 1850mm*1000mm*1800mm
Capacity 900-1,200pcs/hr
Voltage AC220/380V 50Hz
Weight 2,500KG
Power 4.5KW

3 Pin Plug Crimping Machine 900 - 1200pcs/Hr For Power Cord Making 0



Machine Processing:

Cable Feeding-Cutting-B side stripping- A side external stripping- A side remove dust- CCD polarity detection- cores separating- cores forming- cores cutting- CCD Polarity and stripping defect rate detection (stop crimping on the defect condition)- A side crimping.
