Product Details:

Place of Origin: CHINA
Brand Name: CHENXIN
Certification: ISO90001
Model Number: CX-F100

Payment & Shipping Terms:

Minimum Order Quantity: 2/Set
Price: Fob Shenzhen
Packaging Details: boxes
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 500 sets per month
Get Best Price Contact Now

Detail Information

Stroke: 100mm External Stripping Length: 8-100mm
Voltage: AC 220v 50/60hz Air Pressure: 0.4-0.8Mpa
Weight: 45kg Dimension: L 400mm* W220mm* H550mm
Internal Cores Stripping Length: 2-12mm
High Light:

100mm Stroke Pneumatic Stripping Machine

,

AC220V Pneumatic Stripping Machine

,

100mm Stroke Pneumatic Wire Stripping Machine

Product Description

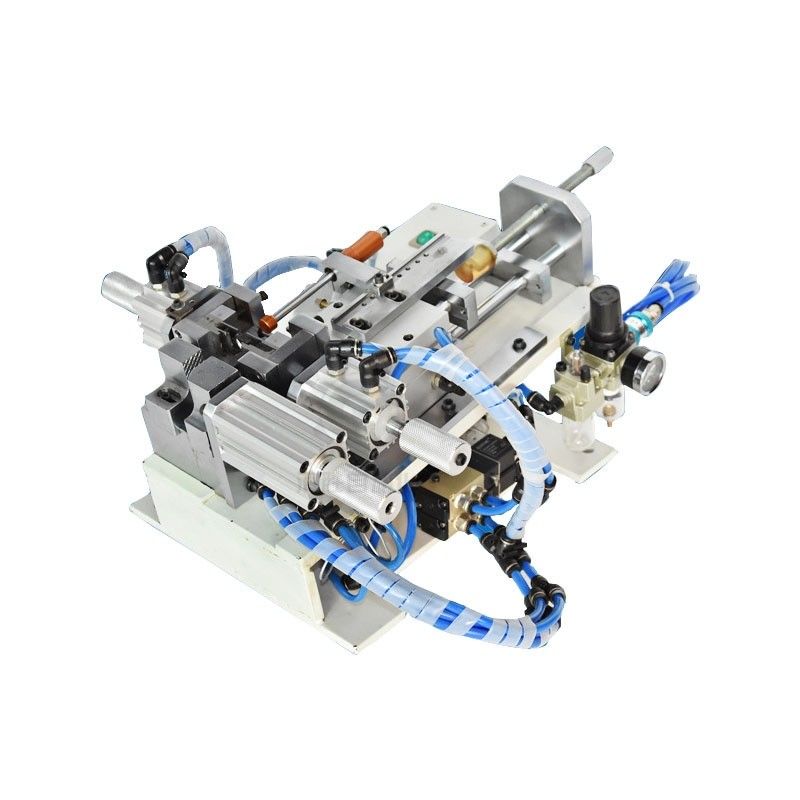

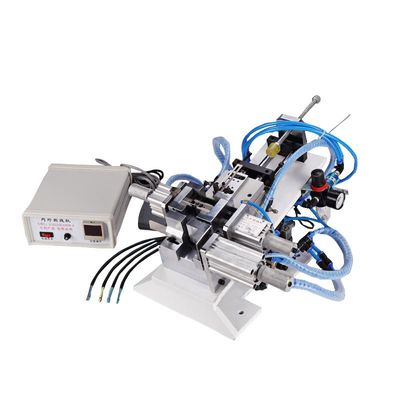

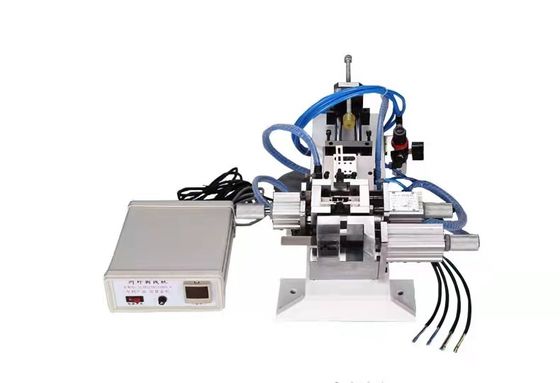

Semi-Auto Wire Cable External Jacket Cores Pneumatic Stripping Machine For Power Cord Making





Features:

1  The oblique back design is ergonomic.

2  Double-acting cylinder, no spring break.

3 Exquisite knife molds, large and small machine types, and knife and molds are universal.

4 Unique sliding seats, light and agile, easy to work.

5 Adjustable structure, adjusted according to the thickness of the wire.

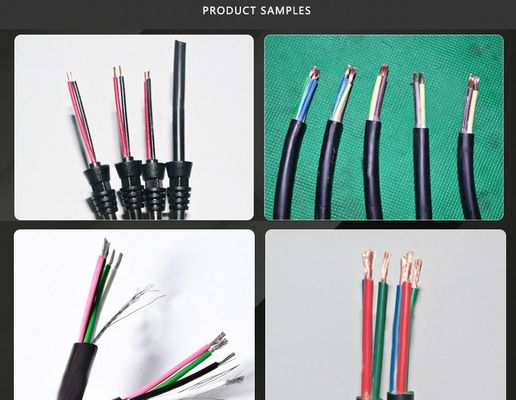

6 Adaptable wire: AC, DC power cord, computer wire, electronic wire, multi-core wire, special wire.

7 Stable sliding seat design, unique sliding seat design ensures more stable stroke and more precise cutting and stripping.

8 The foot pedal is easy to operate. Improved the traditional computer wire stripping method with feet and hands, and evolved into a front clamp back method, which saves energy and improves efficiency.



Technical Parameter:

Model CX-F100
Stroke 100mm
External Stripping length 8-100mm
Internal cores stripping length 2-12mm
Voltage 110v/220V 60Hz
Air pressure 0.4-0.8Mpa
Weight 45kg
Dimension(mm) L 400mm* W220mm* H550mm



AC220V 100mm Stroke Pneumatic Stripping Machine For Power Cord Making 0AC220V 100mm Stroke Pneumatic Stripping Machine For Power Cord Making 1AC220V 100mm Stroke Pneumatic Stripping Machine For Power Cord Making 2AC220V 100mm Stroke Pneumatic Stripping Machine For Power Cord Making 3AC220V 100mm Stroke Pneumatic Stripping Machine For Power Cord Making 4
