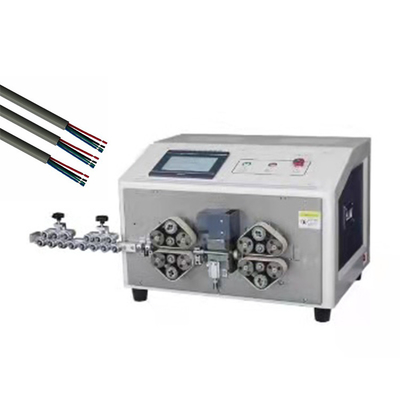

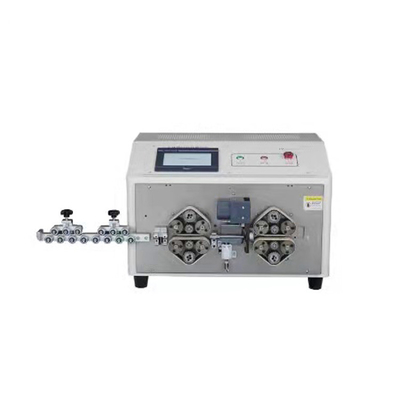

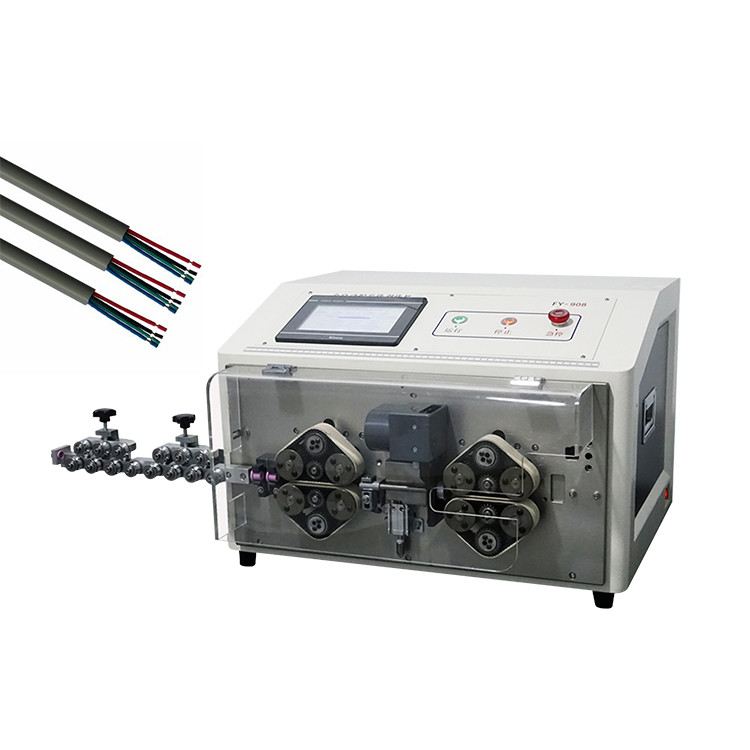

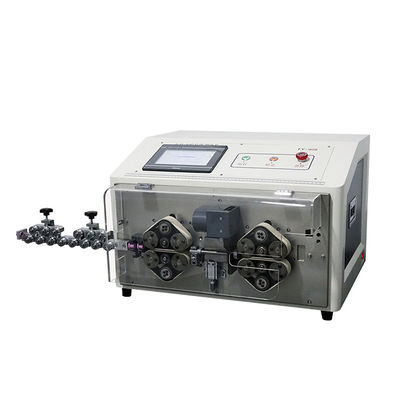

Multifunctional Multicore Cable Cutting And Stripping Machine 1100pcs/h
Product Details:
| Place of Origin: | China mainland |
| Brand Name: | CHENXIN |
| Certification: | ISO9001 |
| Model Number: | CX-3606C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1/Set |
|---|---|
| Price: | FOB Shenzhen |
| Packaging Details: | Export wooden case |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 150sets per month |
|
Detail Information |
|||
| Model Number: | CX-3606C | Usage: | Cut, Strip |
|---|---|---|---|
| Wire Range: | OD 3-10mm | Cutting Length: | 0.1mm-99999.9mm |
| Strip Cores: | 2/3/4/5/6/7/8 | Stripping Length (cable Jacket): | Head:0.1-250mm Tail: 0.1-70mm |
| Stripping Length (inner Core): | Head:0.1-15mm Tail: 0.1-15mm | Capacity: | 1100 Pcs/ H (L=500mm) |
| Intermediate Strip: | Can Be Customized | Blade Material: | Imported Tungsten Steel/high-speed Steel |
| Air Supply: | 0.5-0.8Mpa | ||
| High Light: | Multicore Cable Cutting And Stripping Machine,1100pcs/h Cable Cutting And Stripping Machine,Multicore Cable Cutting Stripping Machine |
||
Product Description
Multi-functional Wire Stripper Multi-Core Cable Cutting and Stripping Machine
Technical parameter:
| Model of machine | CX-3606C |
| Function | Wire cutting, double-end stripping, inner core stripping |
| Applicable wire | OD 3-10MM |
| Cable cores | 2, 3, 4, 5, 6, 7, 8 |
| Cutting length | 0.1mm-99999.9mm |
| Stripping length |
External insulation: head:0.1-250mm tail: 0.1-70mm Internal cores: head: 0.1-15mm tail:0.1-15mm |
| Stripping accuracy | Silent hybrid stepper motor 0.01mm |
| Intermediate strip | Can be customized |
| Capacity | 1,100pcs/hr(L=500mm) |
| Blade material | Imported tungsten steel/high-speed steel |
| Air supply | 0.5-0.8Mpa |
| Voltage & frequency | AC110V/ 220V 50/60Hz |
| Dimension | 650mm*580mm*460mm |
| Weight | 70kg |
| Remark function | Automatic entry/ exit, timing start, jog adjustment |
